4-4-1-2. TP / Fiber Ports Status
Function name:
TP/Fiber Ports Status
Function description:
TP/Fiber Port Status, displays a summary of the port status

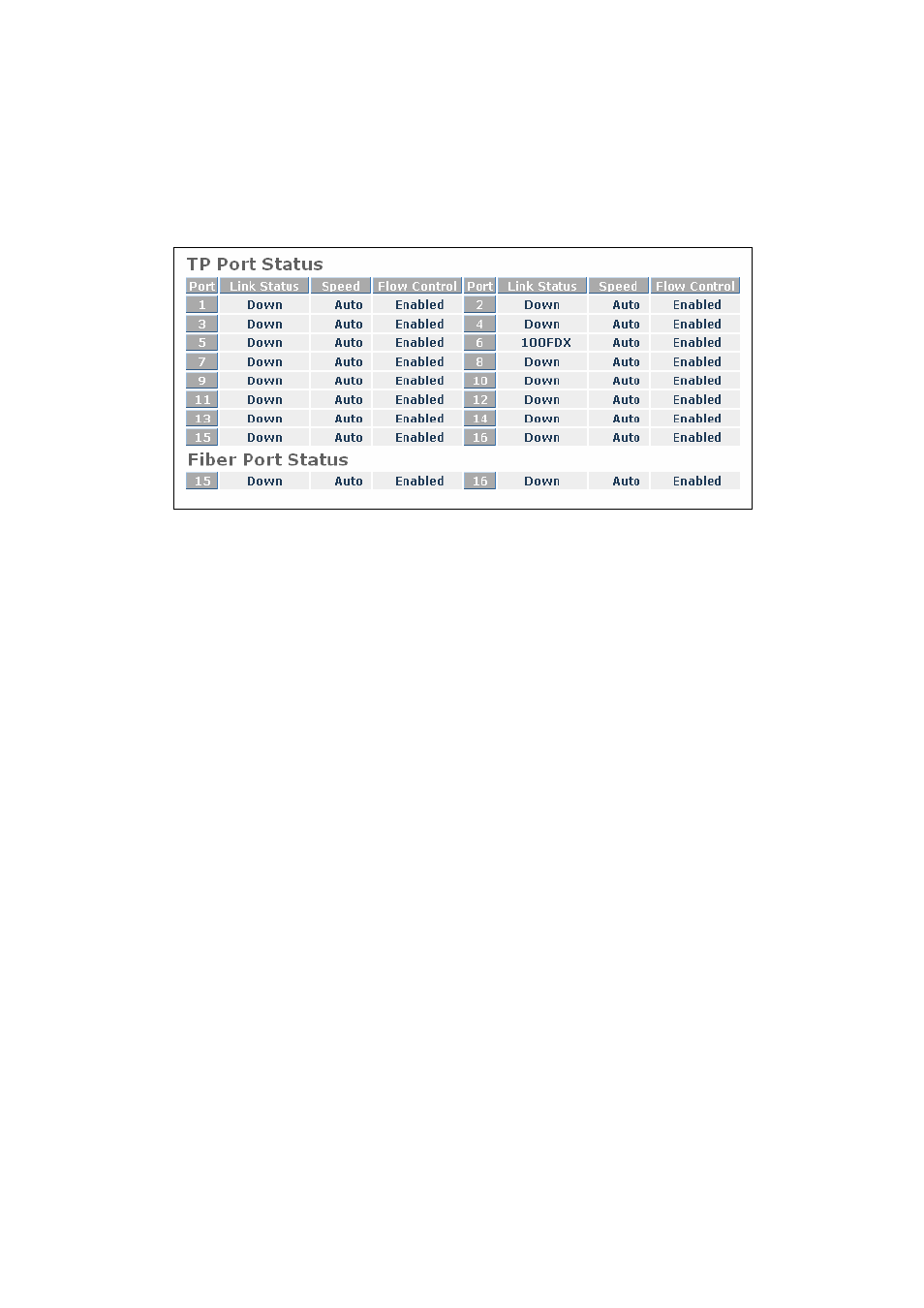

Fig. 4-25
Parameter description:
Port:
Port 1 – 16. Both port 15 and 16 are optional SFP modules.
Link Status:
Displays link as active or down.
Speed:
Displays the speed and duplex of all ports.
Options are:
10Mbps, 100Mbps and 1000Mbps
Half duplex and Full duplex.
1000Mbps supported only.
Flow Control:
Display port flow control status.
There are two types of flow control in Ethernet, Backpressure for half-
duplex operation and Pause flow control (IEEE802.3x) for full-duplex
operation. The switch supports both methods.
Default: Enabled
