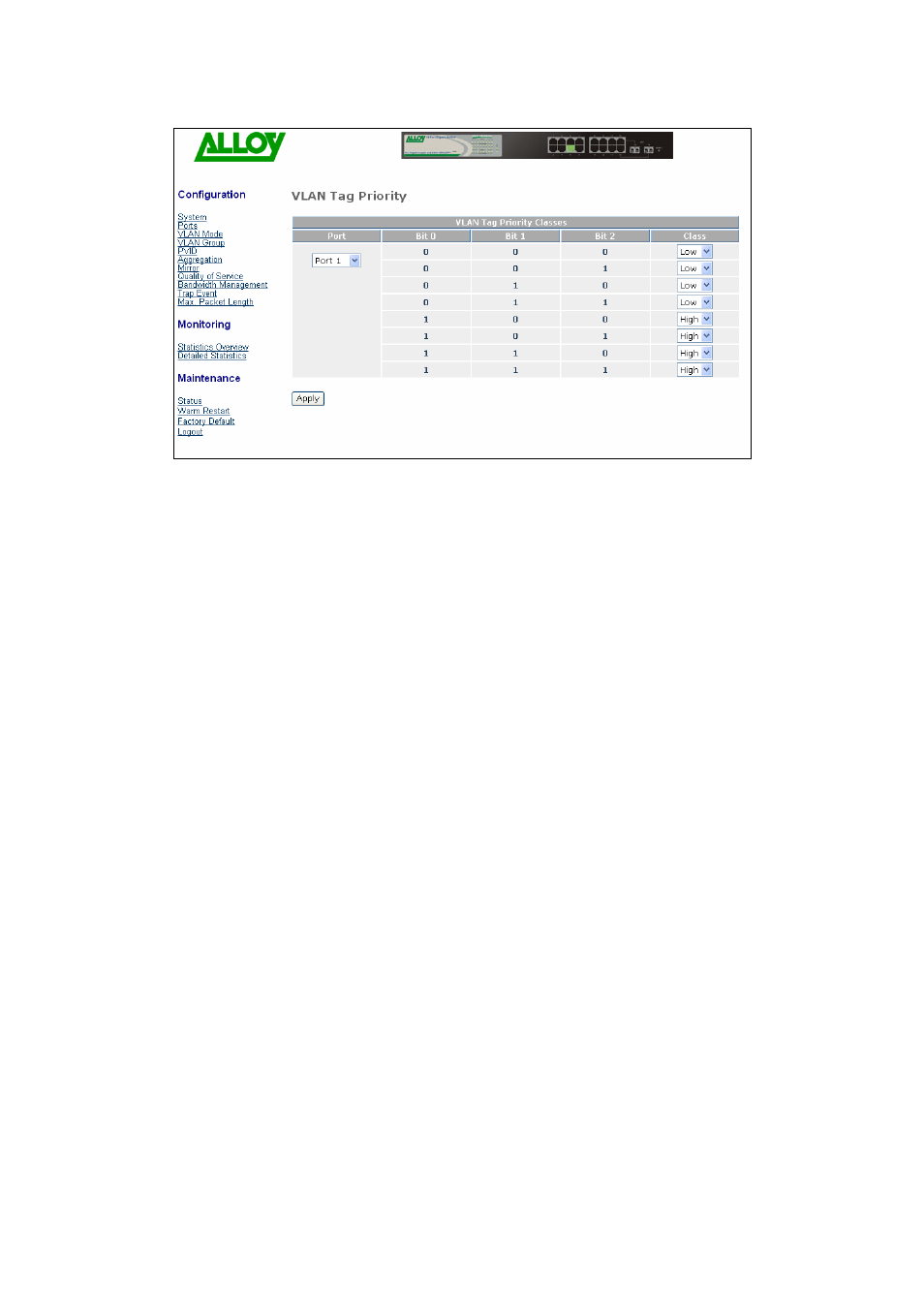

Fig. 4-14
Parameter description:
Quality of Service (QoS) Vlan Tag Configuration:
Used for setting up QoS based on Vlan tags.
Port:
Select the port which your bit mapping will apply. Optionally you can select
to control all ports at the same time from the “All” selection.
Bit 0, Bit 1, Bit 2:
Control the Tag priority and offer 8 levels of QoS.
Class:
The 8 levels of QoS are then mapped to High or Low Priorities for each
ports output queue respectively.
