12

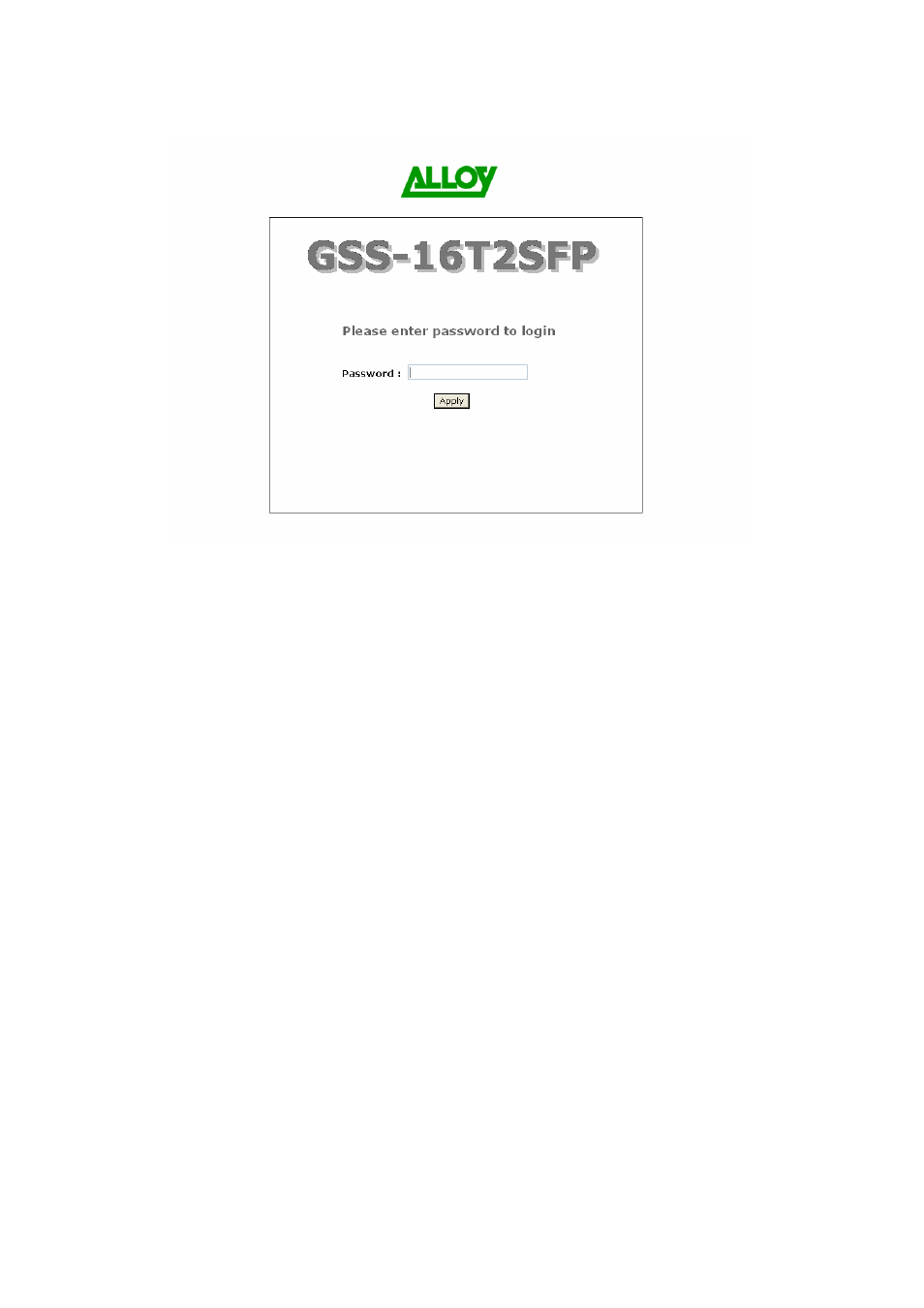

Fig. 4-1
4-1. Web Management Home Overview
After you have successfully logged into the switch the system status
information is displayed as in Fig. 4-2. This page informs you about the basic
information of the system, including “Switch Status”, “TP Port Status”, “Fiber Port
Status”, “Aggregation”, “VLAN”, “Mirror”, “Trap Event”, and “Maximum Packet
Length”. From this information, you can ascertain the software version used, MAC
address, port status and so on. For more details, please refer to Section 4-4-1.
