Lenovo ThinkPad Tablet 2 User Manual
Page 59
3
3
3
3

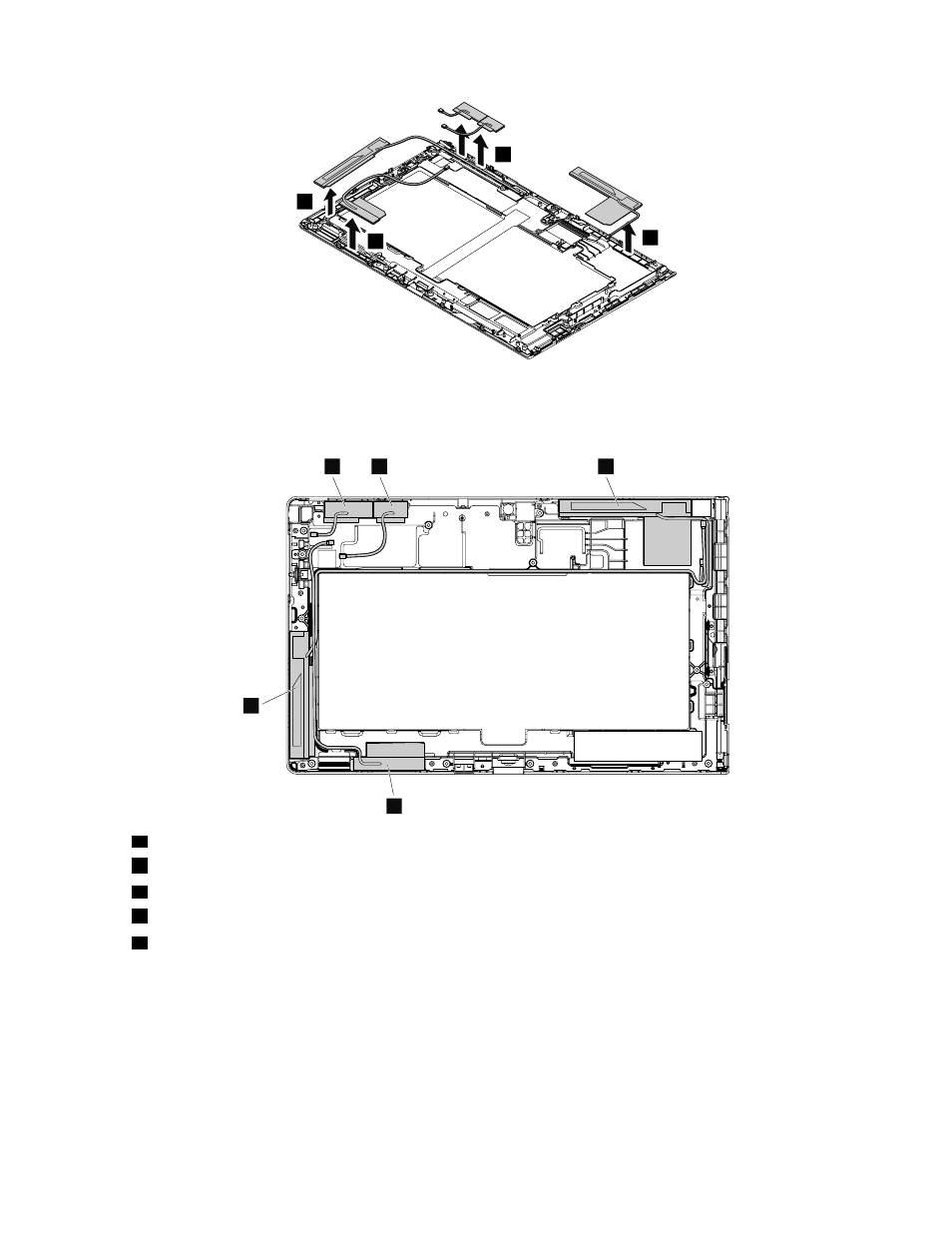

Cable routing: When you install the antenna assembly, route the cables as shown in the following
illustration. When you route the cables, ensure that they are not subject to any tension. Tension could cause
the cables to be damaged by the cable guides, or a wire to be broken.
a
b
c
d
e
a
Wireless WAN antenna (Main)
b
GPS antenna
c
Wireless LAN antenna (Main)
d
Wireless WAN antenna (Auxiliary)
e
Wireless LAN antenna (Auxiliary)
.
53
