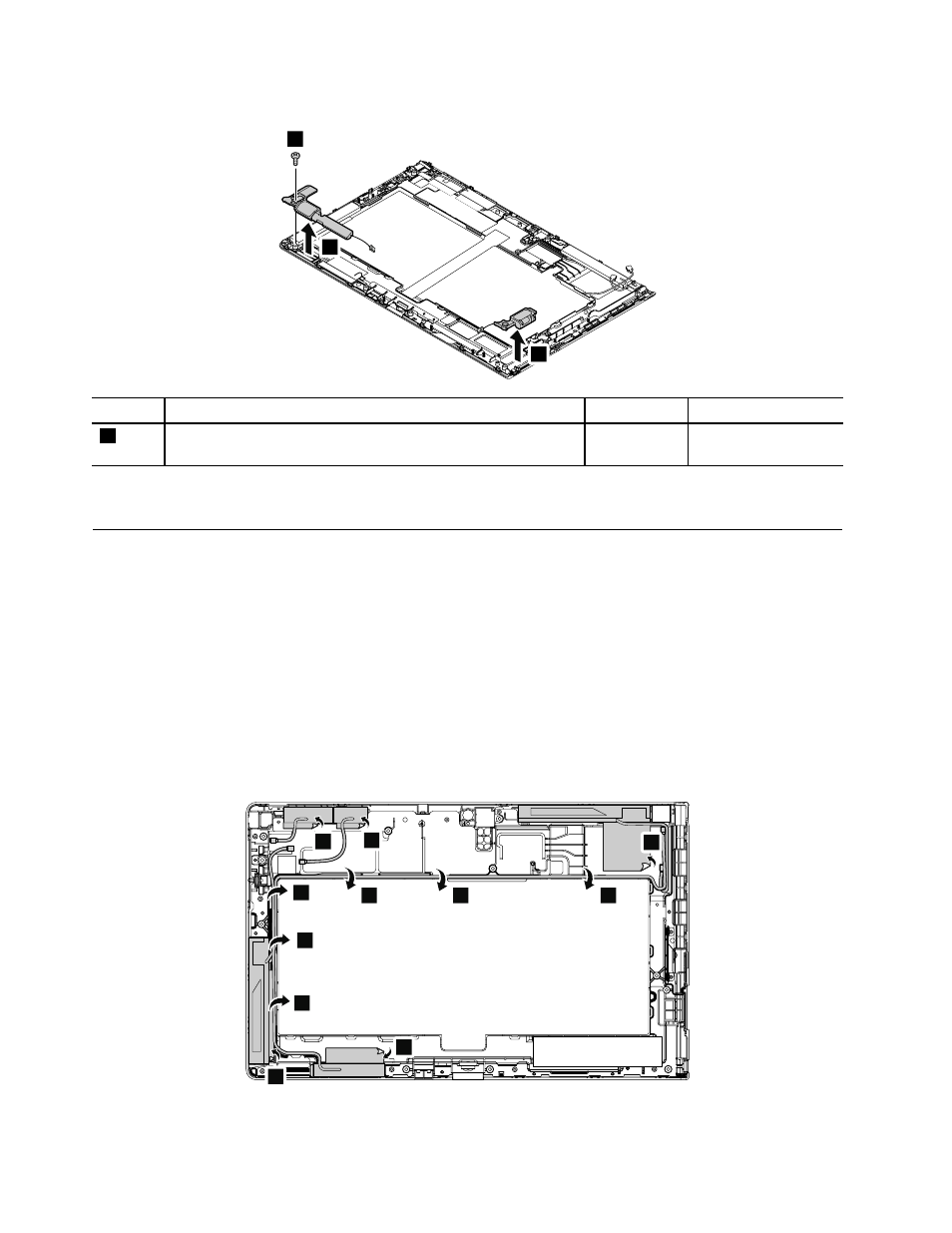

Removal steps of speakers assembly
2
1
2
Step Screw (quantity) Color Torque
1 M2 × 3 mm, flat-head, nylon-coated (1) Black 0.181 Nm
(1.85 kgf-cm)
When installing: Ensure that the connectors are attached firmly.
1090 Wireless LAN antenna assembly, wireless WAN antenna assembly,
and GPS antenna
For access, remove these FRUs in order:
•
“1010 Tablet Digitizer Pen” on page 43
• “1020 Base cover assembly” on page 43
• “1030 Built-in battery” on page 44
• “1040 Rear-facing camera assembly” on page 45
• “1050 Wireless WAN card” on page 46
• “1060 NFC card, system board, and front-facing camera” on page 47
• “1070 Touch sensor board, I/O cable, and I/O board” on page 49
• “1080 Speakers assembly” on page 51
Removal steps of wireless LAN antenna assembly, wireless WAN antenna assembly, and GPS antenna
2 2 2 2
2
2
1 1 1
1
1
