Chapter 5. Locations
This chapter introduces the locations of the tablet hardware components.
Locating tablet controls, connectors, and indicators

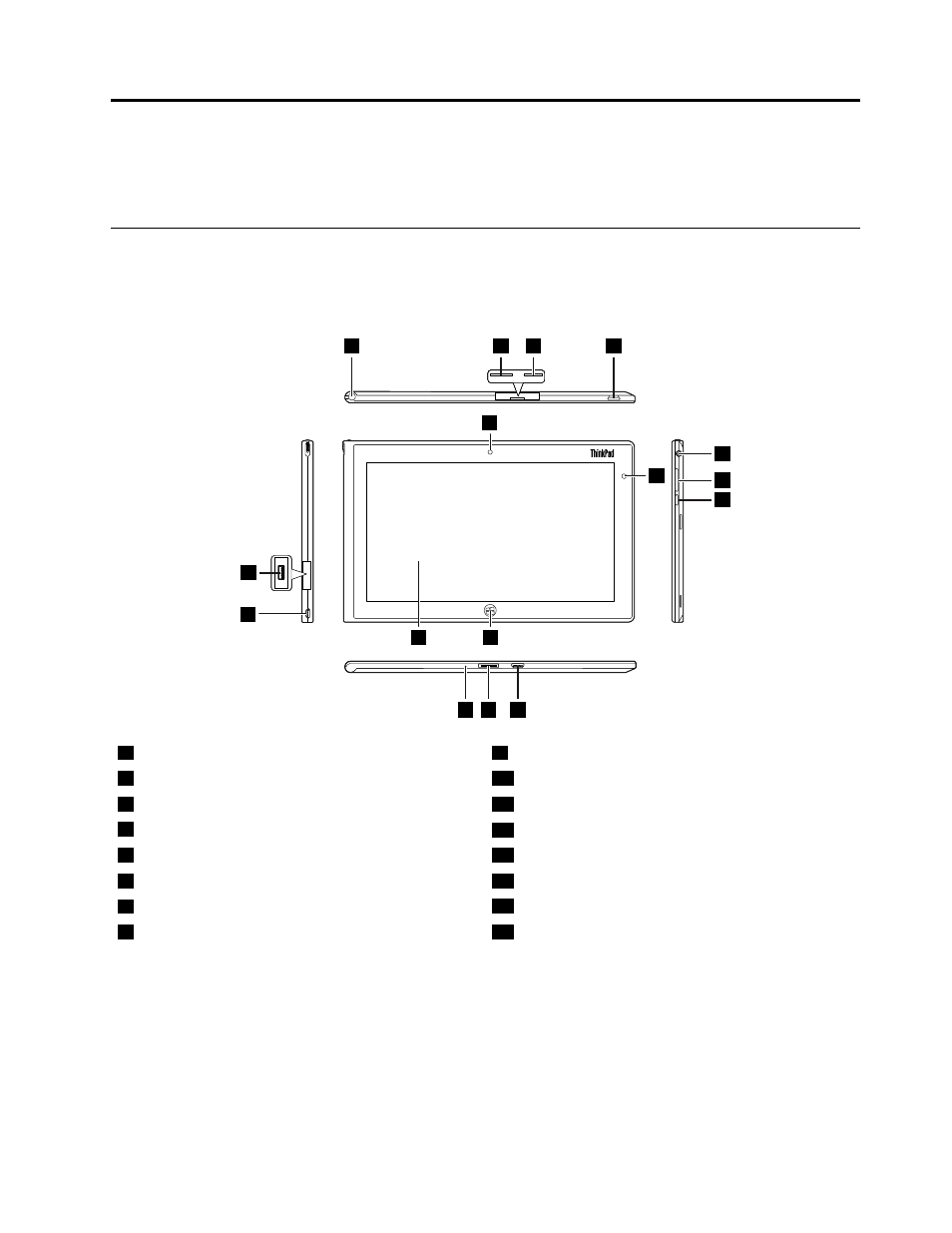

This following illustration shows the locations of controls and hardware components on a ThinkPad Tablet 2.
Front view
1 2 33 4
5
14
13
15
10
11
12
16
6
7
8 9
1 Tablet Digitizer Pen storage 9 ThinkPad Tablet Dock connector
2 SIM card slot 10 Emergency reset hole
3 Micro SD card reader 11 dc-in connector
4 Power button 12 USB connector
5 Headphone or microphone connector 13 Front-facing camera
6 Volume control buttons 14 Ambient light sensor
7 Screen rotation lock button 15 Windows button
8 Mini HDMI connector 16 Multitouch screen
© Copyright Lenovo 2012, 2014 35
