8. Slide the new hard disk drive with the blue bracket into the drive cage until it snaps into position and

align the hard disk drive cage pivot pin with the slot

1

in the upper drive cage. Then, slide the hard disk

drive cage into the chassis. Press down on the metal latch

2

and pivot the hard disk drive cage into

place. Then, slide the drive cage to the front of the server until it snaps into position.

Note: There are two arrows, one on the upper drive cage and one on the hard disk drive cage. The
arrows are aligned when the hard disk drive is in the correct position.

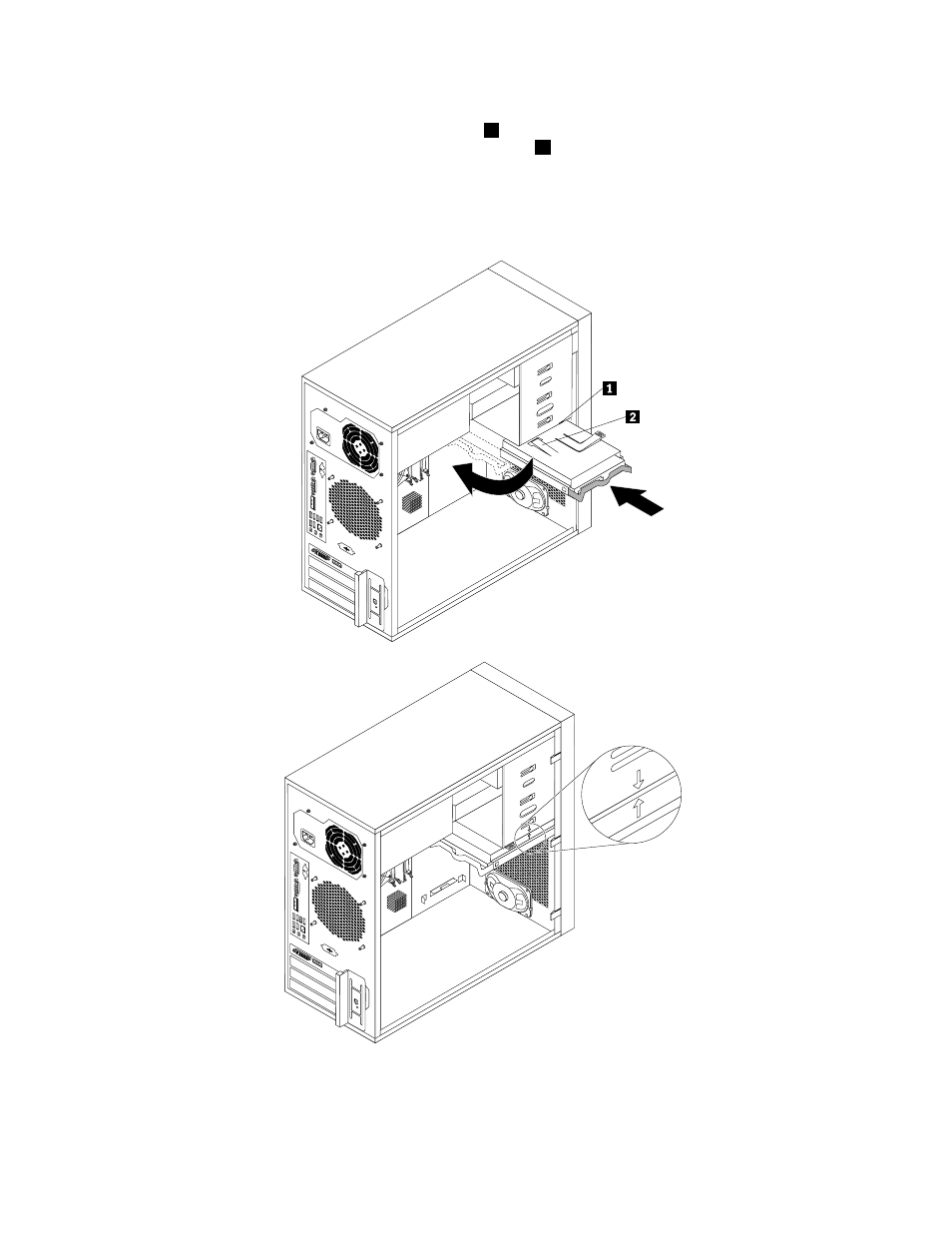

Figure 22. Installing the primary hard disk drive

32

ThinkServer TS130 User Guide
