Planning
and
configuring
your
installation
Refer
to
for
information
on
overall
system
configuration
requirements.
Refer
to
the
Secure
Managed
Client
(SMC)
-
Storage
Array
Setup
Poster
that
shipped
with
your
system
for
instructions
on
installing
the
processors,
drives,
and
memory.
Rack
installation
prerequisites
The
SMC
-
Storage
Array
is
designed
for
installation
into
an
industry
standard
48.26-cm
(19-inch)
cabinet
capable
of
holding
the
unit.
v
Minimum
depth:
70.76
cm
(27.83
inches)
from
rack
posts
to
maximum
extremity
of
enclosure
(excludes
rear
cabling).
v
Weight:
up
to
30
kg
(66.20
lb),
dependent
upon
configuration,
per
enclosure.
v
A
minimum
gap
of
2.54-cm
(1-inch)
clearance
is
required
between
the
rack
cover
and
front
of
drawer.
A
5.08
cm
(2-inch)
rear
clearance
between
rear
of
drawer
and
rear
of
rack
is
recommended
to
maintain
correct
airflow
around
the
enclosure.
v
The
rack
should
present
a
maximum
back
pressure
of
0.5
mm
(5
pascals)
water
gauge.

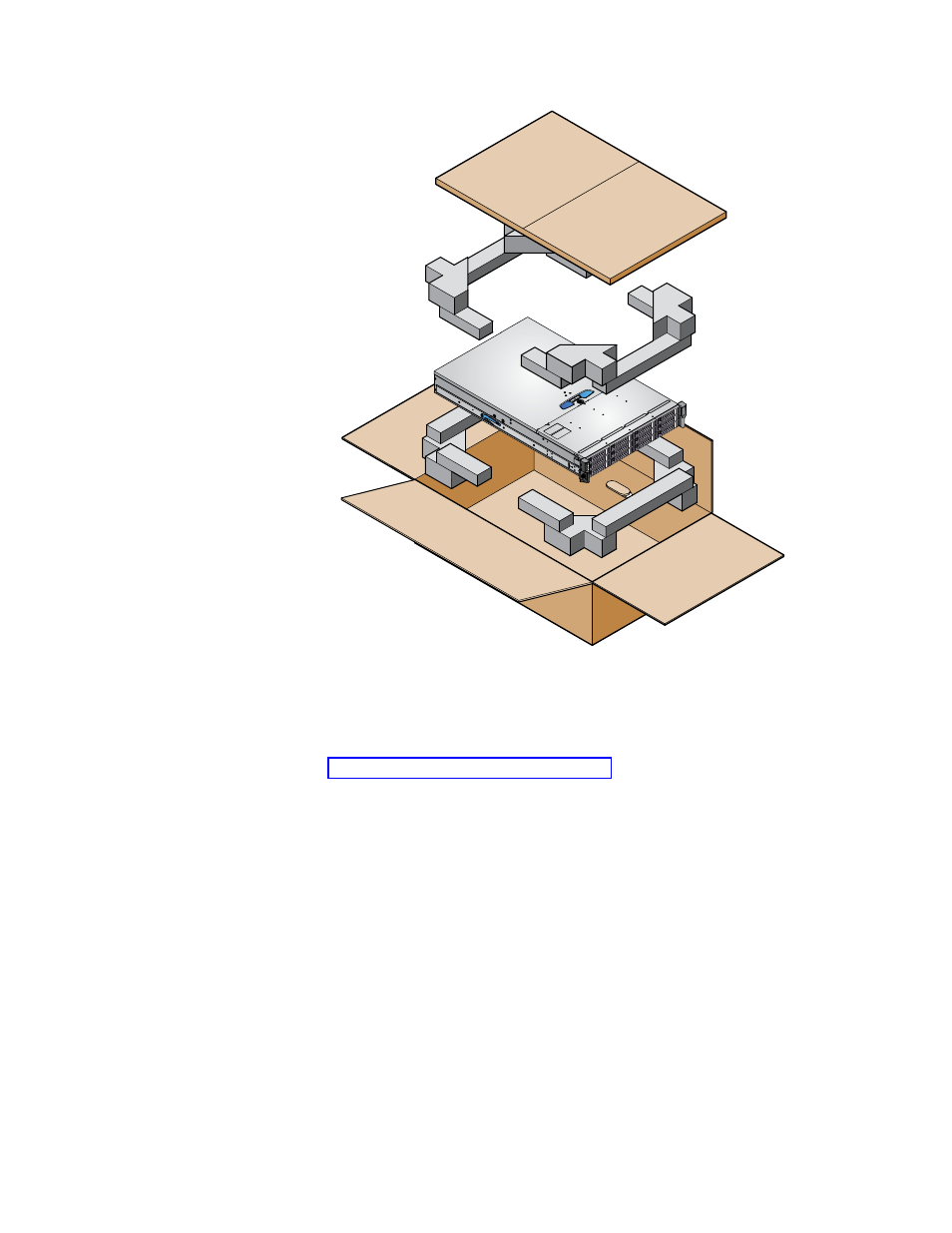

Figure
14.
Unpacking
the
SMC
-
Storage
Array
Chapter
3.
Getting
Started
15
