1070 Fan assembly
Attention:
For the Lenovo G40-30, select models (computers with UMA architecture)
do not have a thermal fan.
For access, remove these FRUs in order:
• “1010 Battery pack” on page 33
• “1020 Base cover” on page 34

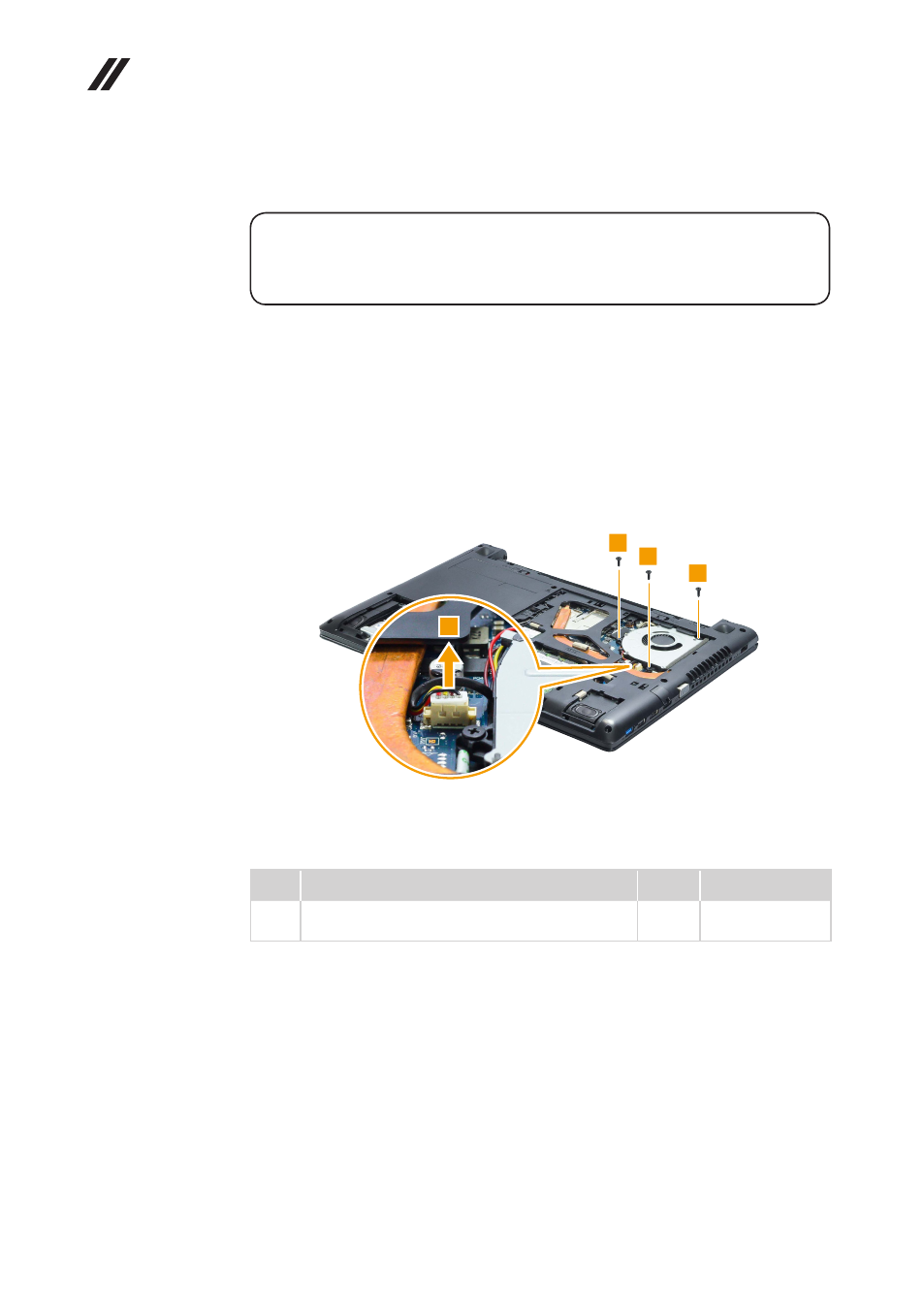

Figure 7. Removal steps of fan assembly
Unplug the fan connector in the direction shown by arrow 1. Then remove the
screws 2.
2
2
2
1
Note: Be careful not to damage the connector.
Step Screw (quantity) Color Torque
2 M2 × 3.5 mm, flat-head, nylok-coated (3)
FAN to C
Black 1.5 ~ 2.0 kgf*cm
When installing: Make sure that the connector is attached firmly.
