36
G40-30/G40-45/G40-70/G40-70m/Z40-70/Z40-75 Hardware Maintenance Manual
1030 Optical drive
For access, remove this FRU:
• “1010 Battery pack” on page 33
• “1020 Base cover” on page 34

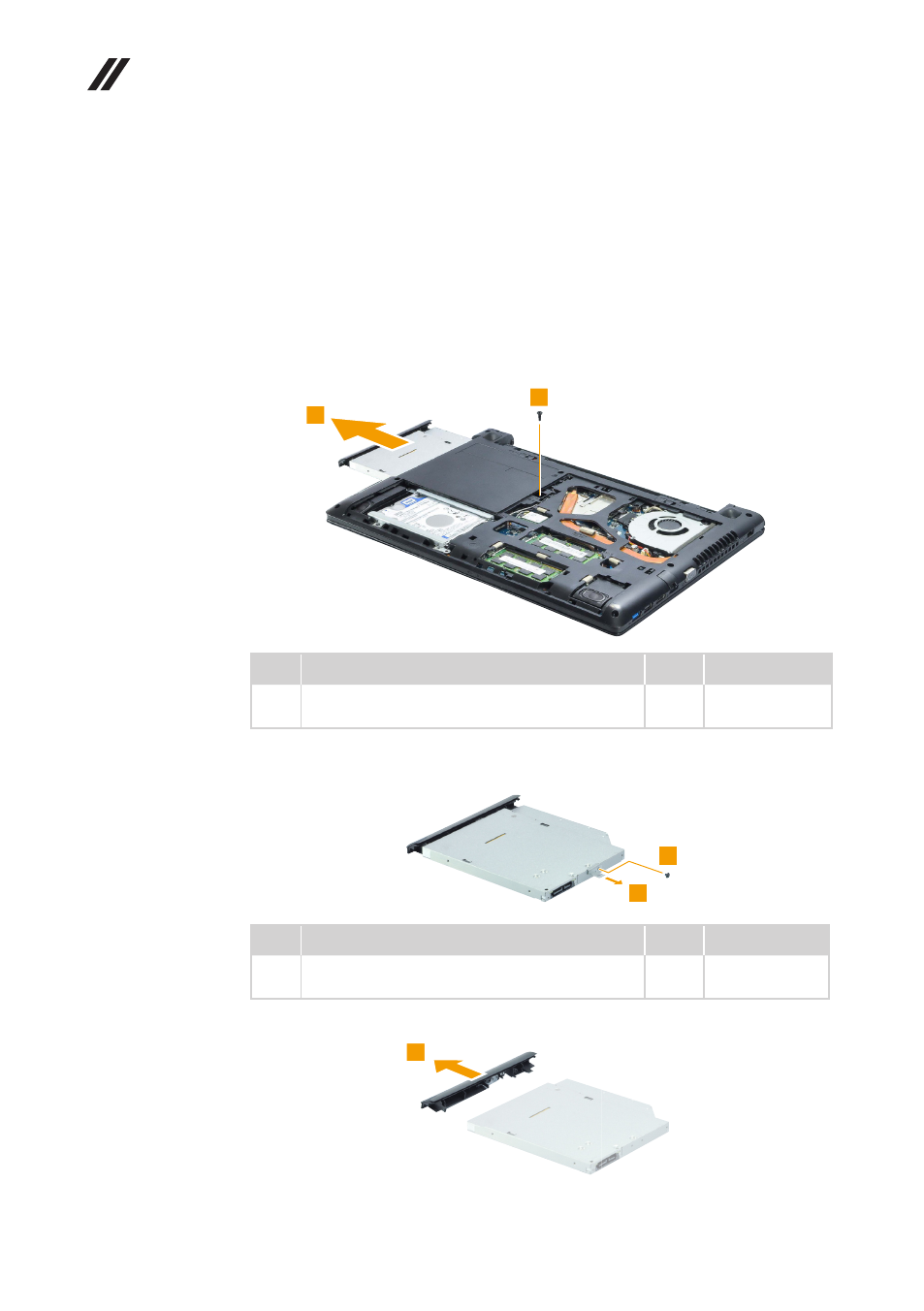

Figure 3. Removal steps of optical drive
Remove the screw 1. Pull the optical drive out in the direction shown by
arrow 2.
1
2
Step Screw (quantity) Color Torque
1
M2 × 3.5 mm, flat-head, nylok-coated (1)
ODD BKT to D to KB Black 1.5 ~ 2.0 kgf*cm
Remove the screw 3, then remove the optical drive bracket in the direction
shown by arrow 4.
3
4
Step Screw (quantity) Color Torque
3 M2 × 3.5 mm, flat-head, nylok-coated (1)
ODD BKT to ODD Black 1.5 ~ 2.0 kgf*cm
Carefully remove the optical drive bezel in the direction shown by arrow 5.
5
