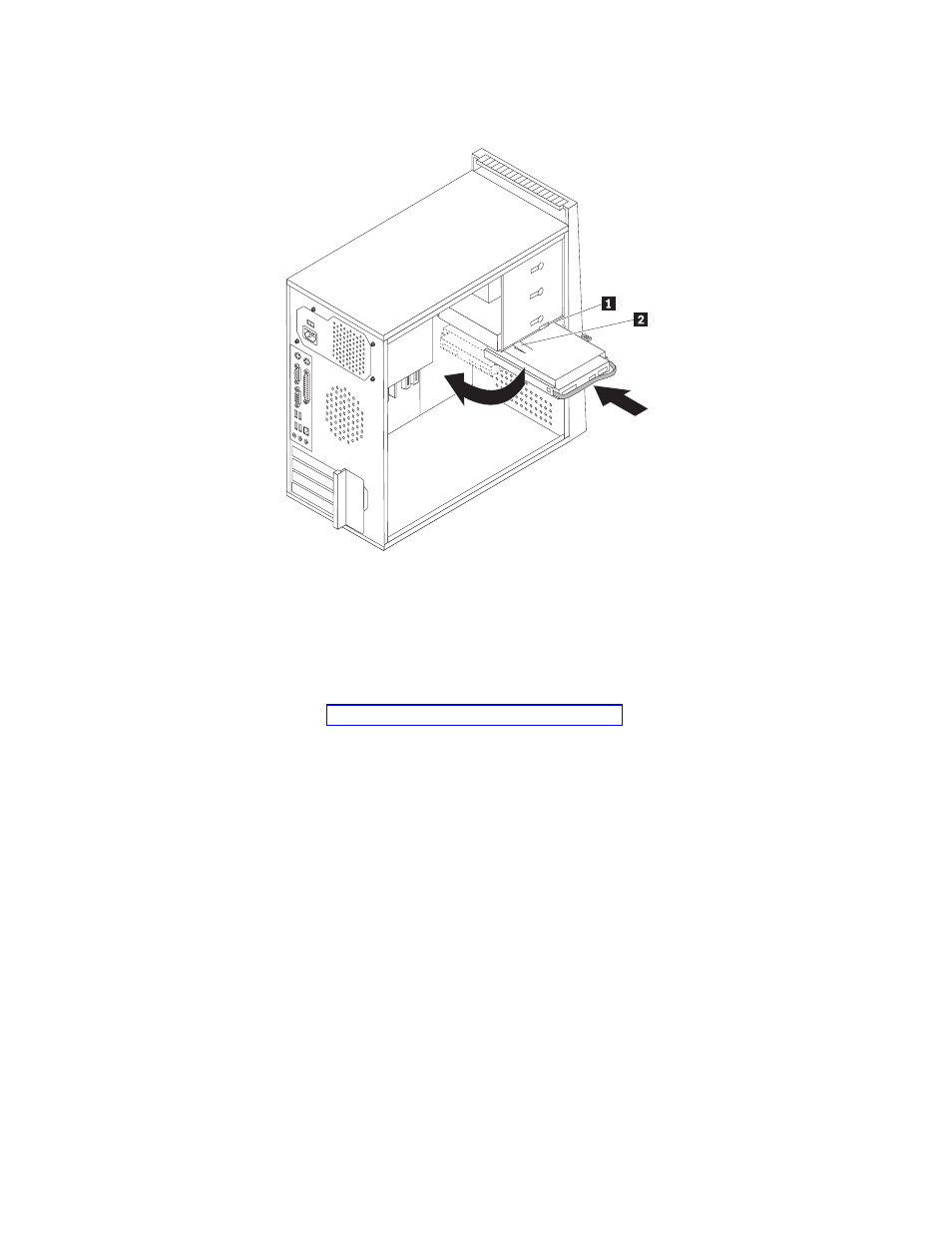

9.

Align

the

drive

cage

pivot

pin

with

the

slot

1

in

the

upper

drive

cage

and

slide

the

hard

disk

drive

cage

into

the

chassis.

10.

Press

down

on

the

metal

latch

2

and

pivot

in

the

drive

cage

into

place

and

then

slide

it

forward

until

it

snaps

into

position.

Note:

There

are

two

arrows,

one

on

the

upper

drive

cage

and

one

on

the

hard

disk

drive

cage.

The

arrows

are

aligned

when

the

hard

disk

drive

is

in

the

proper

position.

11.

Connect

the

power

and

signal

cables

to

the

hard

disk

drive.

12.

Go

to

installation”

20
