Identifying
parts
on
the
system
board
The
system
board
(sometimes
called
the
planar
or
motherboard)
is
the
main
circuit
board
in
your
computer.
It
provides
basic
computer
functions
and
supports
a
variety
of
devices
that
are
factory-installed
or
that
you
can
install
later.

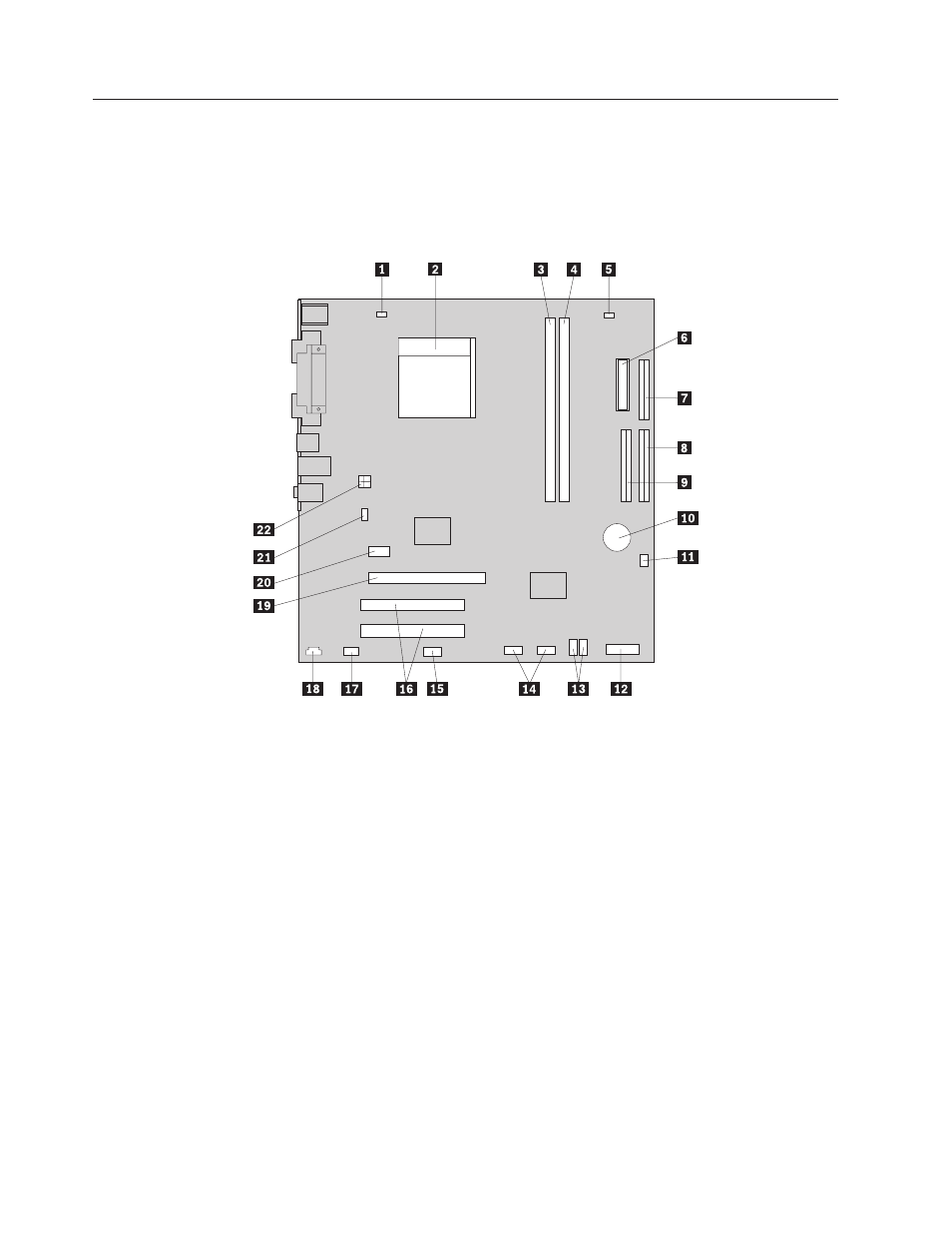

The
following
illustration
shows
the
locations
of
parts
on
the
system
board
(some
models).
1
Microprocessor
fan
connector
12
Front
panel
connector
2
Microprocessor
and
heat
sink
13
SATA
IDE
connectors
(2)
3
Memory
connector
1
14
Front
panel
USB
connectors
(2)
4
Memory
connector
2
15
SATA
IDE
connector
(2)
5
Clear
CMOS/Recovery
jumper
16
PCI
adapter
connectors
6
Power
connector
17
Front
audio
connector
7
Diskette
drive
connector
18
CD-IN
connector
8
IDE
connector
1
19
PCI
Express
x16
graphics
adapter
connector
9
IDE
connector
2
20
PCI
Express
x1
adapter
connector
10
Battery
21
System
fan
connector
11
Power
fan
connector
22
12v
power
connector
