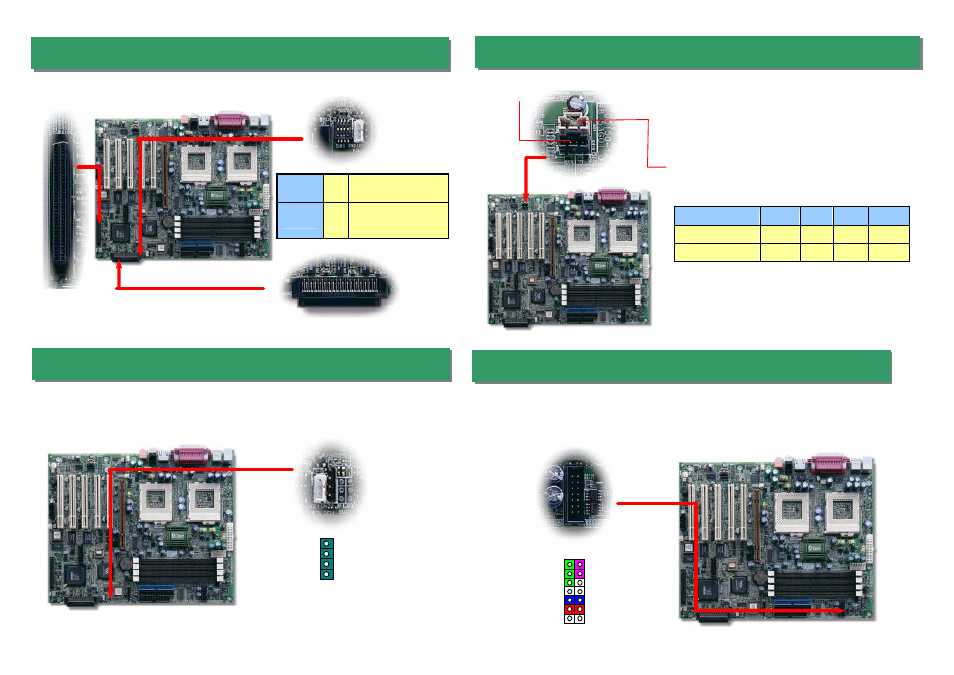

12. Connecting CD / AUX Connector

10. Connecting 68-pin Ultra 160 SCSI Cable

)

Low ESR capacitor

The AUX-IN connector is used to connect MPEG
Audio cable from MPEG card to onboard sound.

The CD-IN connector is used to connect CD Audio
cable from CDROM or DVD drive to onboard sound.

AUX-IN (Green)

CD- IN (Black)

11. Connecting SCSI Card LED Connector

The DX37Plus -U provides two 68-pin Ultra Wide/Ultra 2/3 SCSI connectors for 16-bit or

16-bit differential SCSI devices.

The 4-pin SCSI LED connector can be connected to a PCI SCSI control card activity
LED connector. Read or write activity by devices connected to the SCSI card will transfer
a signal to Front Panel and thus making the LED lighting up.

SCSI Card

LED Connector

-

+

+

-

13. Redundant SPS Monitoring Connector

This motherboard implements Redundant SPS monitoring connector to provide hardware
monitoring signals . It is feasible to install an additional 337-watt power supply module
(optional with AOpen Server Housing) in a hot swappable configuration. If any SPS failed,
a signal will be sent to a hardware monitoring device.
