Plug in the CPU fan cable to the 3-pin CPU1 FAN and CPU2 FAN connector. If you have chassis fan, you

can also plug it on System FAN (FAN2) or AUX FAN (FAN3) connector.

Hard Drive IDE Cable x 1

80-Wire IDE Cable x 1

Floppy Drive Cable x 1

Ultra 160 SCSI 68 pin Cable x 1

Bonus Pack CD disc x 1

User Manual x 1

This Easy Installation Guide x 1

I/O Bracket x 1

ASM Lite x 1

SCSI Utility Driver x 1

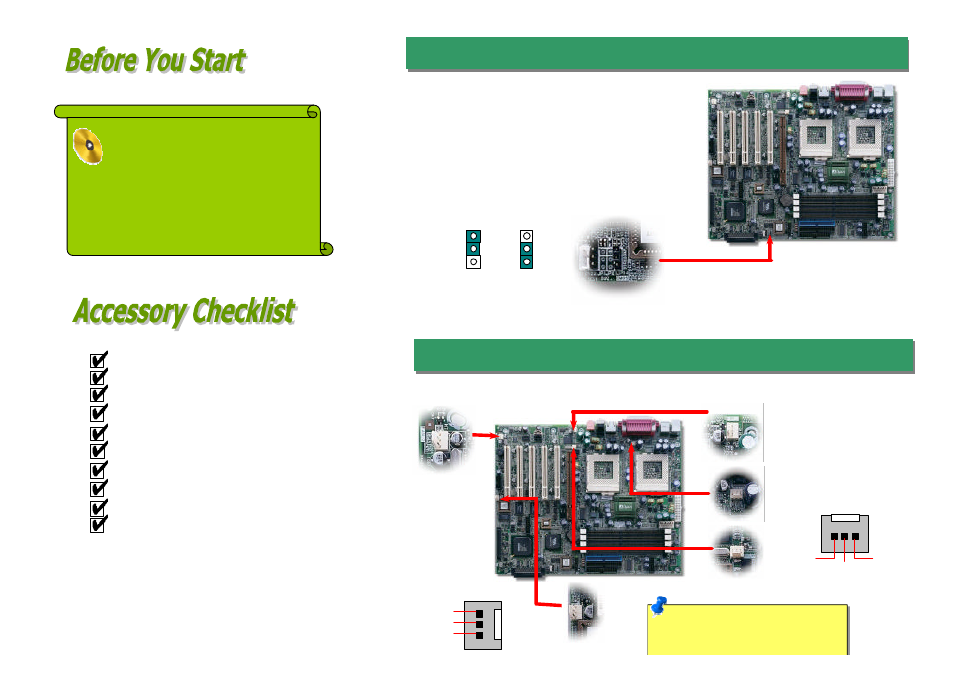

1. JP14 Clear CMOS

Everything you need to boot this
motherboard is included in this
Easy Installation Guide. For more
information, a complete

Online

User's Manual

can be found in the

Bonus Pack CD Disc

. Thanks for

the help of saving our earth.

PART NO: 90.53G30.002

DOC. NO: D X37PU-EG-E0110A

Note: Some CPU fans do not have
sensor pin so they cannot support fan
monitoring.

CPU1 Fan Connector

GND

SENSOR

+12V

2. Installing CPU & System Fan

FAN1 Connector

FAN3 Connector

GND

+12V

SENSOR

FAN2

Connector

You can clear CMOS to restore system default setting. To
clear the CMOS, follow the procedure below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few s econds.

4. Return JP14 to its normal setting by shorting pin 1 & pin 2.

5. Connect ATX power cable back to connector PWR2.

1

Normal

(default)

1

Clear CMOS
