AOpen D X37PU-EG-E0110A User Manual
Page 3
The DX37 Plus -U supports Intel
®
Socket 370 Pentium III series CPU. Including the code
name Tualatin 512K cache CPU for dual CPU configuration.
CPU
CPU Core Frequency
FSB Clock
Ratio
Pentium III 600E
600MHz
100MHz
6x
Pentium III 650E
650MHz
100MHz
6.5x
Pentium III 700E
700MHz
100MHz
7x
Pentium III 750E
750MHz
100MHz
7.5
Pentium III 800E
800MHz
100MHz
8x
Pentium III 850E
850MHz
100MHz
8.5x
Pentium III 533EB
533MHz
133MHz
4x
Pentium III 600EB
600MHz
133MHz
4.5x
Pentium III 667EB
667MHz
133MHz
5x
Pentium III 733EB
733MHz
133MHz
5.5
Pentium III 800EB
800MHz
133MHz
6x
Pentium III 866EB
866MHz
133MHz
6.5
Pentium III 933EB
933MHz
133MHz
7x
Pentium III 1G
1GHz
133MHz
7.5x
Pentium III 1.13G
1.13GHz
133MHz
8.5x
Pentium III 1.26G
1.26GHz
133MHz
9x
Processor Name
CPU Package
Single Processor
PentiumII
Pentium !!!
All
All
Dual Processor
Pentium II
Pentium !!!
Pentium !!! 512K
All
Coppermine
Tualatin
5. Setting CPU Voltage & Frequency

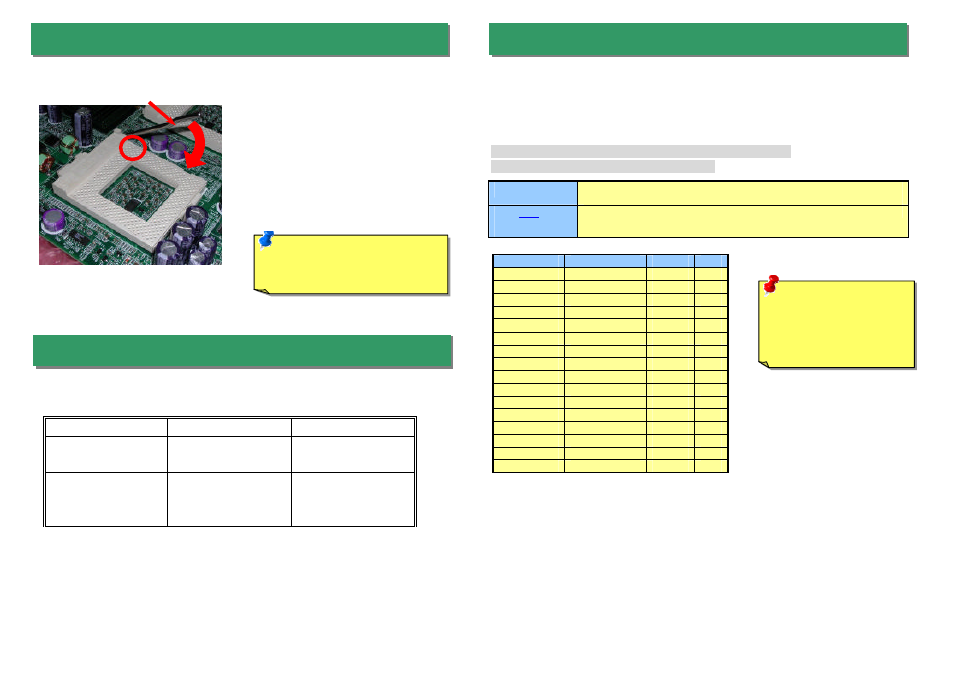

3. Installing P rocessor
4. Supported CPU Type
Note: If you do not match the CPU
socket Pin 1 and CPU cut edge
well, it may damage the CPU.
CPU socket lever
CPU Pin 1 and cut edge
1.
Pull up the CPU socket level and up to
90-degree angle.
2.
Locate Pin 1 in the socket and look for a
(golden) cut edge on the CPU upper
interface.
Match Pin 1 and cut edge.
Then insert the CPU into the socket.
3.
Press down the CPU socket level and
finish CPU installation.
Setting CPU Core Voltage
This motherboard supports CPU VID function. The CPU core voltage will be automatically
detected and the range is from 1.05V to 1.825V. It is not necessary to set CPU Core Voltage
Setting CPU Frequency
This motherboard is CPU jumper-less design, you can set CPU frequency through the BIOS
setup, no jumpers or switches are needed.
BIOS Setup > Frequency / Voltage Control > CPU Speed Setup
Core Frequency = CPU FSB Clock * CPU Ratio
CPU Ratio
3x, 3.5x, 4x, 4.5x, 5x, 5.5x, 6x, 6.5x, 7x, 7.5x, 8x, 8.5x, 9x, 9.5x, 10x, 10.5x, 11x, 11.5x,
12x, 12.5x, 13x, 13.5x, 14x, 14.5x, 15x, 15.5x and 16x
CPU
FSB
(By BIOS Table)
100 and 133 M H z
Warning: We strongly
recommend you do not
overclocking your CPU
and system for get more
system reliability.
