AMPSUB210

OWNER’S MANUAL

9200 North Decatur St. Portland, OR 97203 • 503.286.9300 • www.audiosource.net

SPEAKER TERMINALS

Terminals are provided for two subwoofers. Connect the speaker’s positive (red)

terminal to the amplifier’s positive (red) terminal, and the speaker’s negative

(black) terminal to the amplifier’s negative (black) terminal.
NOTE: Use the appropriate gauge speaker wire when connecting speakers

to the AMPSUB210.
If using two speakers they must be a minimum of 8 ohms each. DO NOT BRIDGE.

The speaker terminals are internally bridged.

MAINS POWER INLET/FUSE/

VOLTAGE SELECTOR

Power inlet accepts the IEC type line cord supplied with the ampliﬁer. A fuse

in the integrated holder provides safety protection from fault conditions:

replace fuse with one of same type and rating only.

This ampliﬁer is conﬁgured for operation at 115V ~60Hz. (North America)

The AMPSUB210 can be conﬁgured for operation from either 115V ~60Hz

or 230V ~50Hz AC mains. Installed mains fuse must be of type and rating

marked on ampliﬁer corresponding to conﬁgured AC mains voltage.

Should you wish to conﬁgure the AMPSUB210 for use 230V ~50Hz

please contact your dealer or distributor.

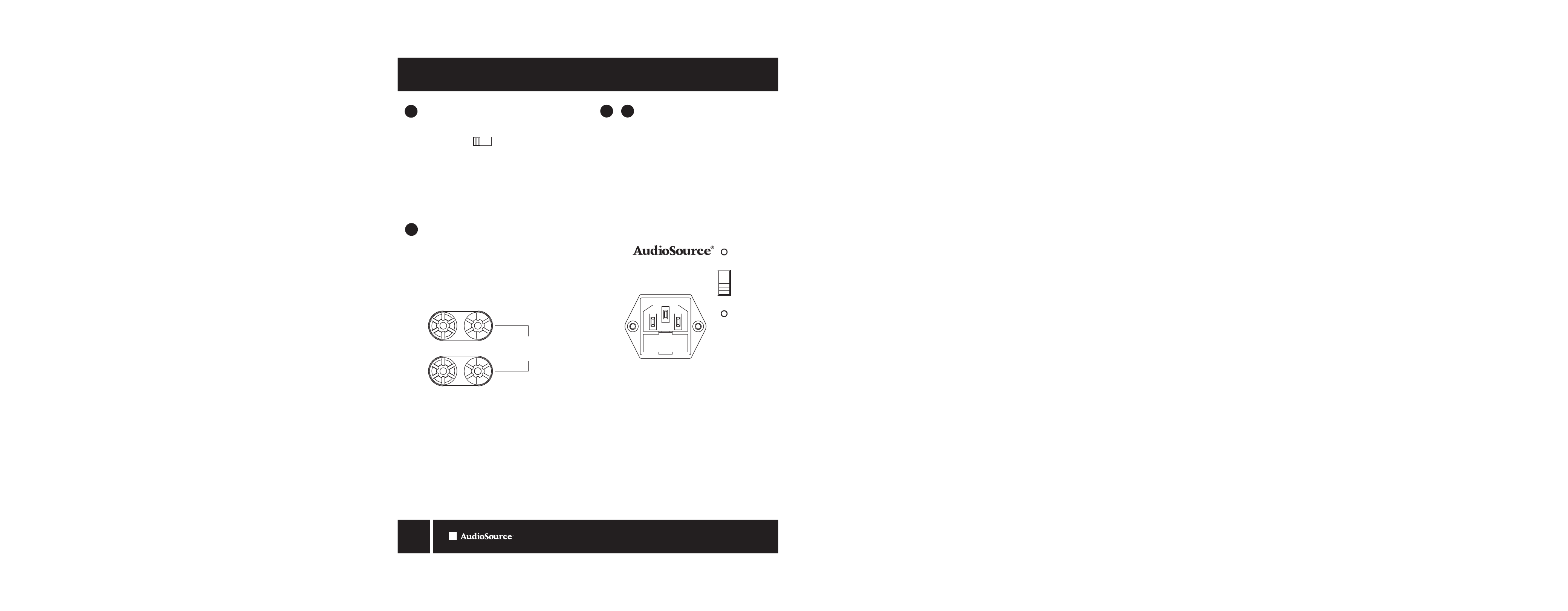

Figure 8. Speaker Terminals

LIGHT BAR DISPLAY

On Off

Light Bar Display

This switch controls the lighted bars on the front of the amplifier. These bars

light red when the amplifier is in operation. If the amplifier is visible and a low

light setting is desired use this switch to turn off the light bars. The other LED

indicators on the front panel as well as the power button lighted ring are not

affected by this control.

Figure 7. Light Bar Display Control

Use Class 2 Wiring

Minimum Impedance:

4 ohms Combined Load

115V~ 60Hz 700W

FUSE:T6.3AL 250V

FUSE:T3.15AL 250V

230V~ 50Hz 700W

MODEL AMPSUB210

Custom Manufactured in China

CAUTION: See User Manual Before

Replacing Fuse

Figure 9. Mains Power Inlet/Fuse/Voltage Selector
