Power

AMPSUB210

OWNER’S MANUAL

9200 North Decatur St. Portland, OR 97203 • 503.286.9300 • www.audiosource.net

4

1. Power

The front panel power switch switches the AMPSUB210 on or off. Red

LEDs behind the faceplate indicate power status. Whenever the amplifier’s

power switch is in the “ON” position the ring around the button is illuminated.

When the amp is “Active” (receiving signal) the side lenses become

illuminated and the signal LED shows green. During “Standby” status (no

signal) the side lenses are not illuminated and the signal LED shows orange.

2. Signal LED

4. Subsonic Filter

Set between 5Hz and 50Hz to filter out unwanted lower frequencies.

5. Variable Crossover

Sets crossover frequency between 40Hz and 500Hz.

FRONT PANEL CONTROLS

7. Line 1 Input

A switching input that can be used if a second source is desired and will

take over when a signal is present and has at least a 5mV level. Whenever

there is no signal at this input, or a signal with less than 5mV level, the

amplifier switches back to the Line 2 or “primary” input.

8. Speaker Level Input Line Select

Switches the input of the speaker level input to Line 1 or Line 2.

9. Speaker Level Input

Can be used to connect a source with speaker level output instead of line

level outputs. Use the Speaker Level Input Line Select to route the source

to Line 1 or Line 2.

10. Line 2 Input/Output

The primary line level input and output for a single source connection.

11. LFE Input

Optional connection to LFE output from your receiver. Bypasses amplifier

volume control, use receiver to set levels. Also set Variable Crossover to

full clockwise position (500Hz) and Subsonic Filter slightly lower than your

woofer’s F3 point, or between 9 and 12 o’clock if woofer specs unavailable.

See block diagram (figure 5) on page 5.

12. Soft Limiter Switch

When “ON” reduces extreme signal peaks which may damage your speakers

and cause audible distortion.

13. 12V Trigger

Allows the AMPSUB210 to be powered on by other electronics or to power

on other electronics via a 3.5mm mini phone plug cable.

14. Power Mode

Sets the power on option of the AMPSUB210. Set it to Normal for manual

power on/off. Set to Auto-On for signal sensing. Set to Trigger if the 12V

Trigger input is used.

15.

16. Speaker Output

Dual internally bridged speaker output terminals. If connecting two speakers

they must be minimum 8 ohms each. DO NOT BRIDGE.

17. Mains Power Inlet & Fuse Holder

Accepts IEC type line cord. A fuse in the integrated holder provides safety

protection from fault conditions: replace fuse with one of same type

and rating only.

18. Mains Voltage Selector

Voltage selection switch is preset to 115V (USA). For use in areas which

require 230V contact your dealer. Fuse must be of type and rating marked

on amplifier for use at local mains voltage.

REAR PANEL CONTROLS

6

4

1

7

8

9

10

11

12

13

14

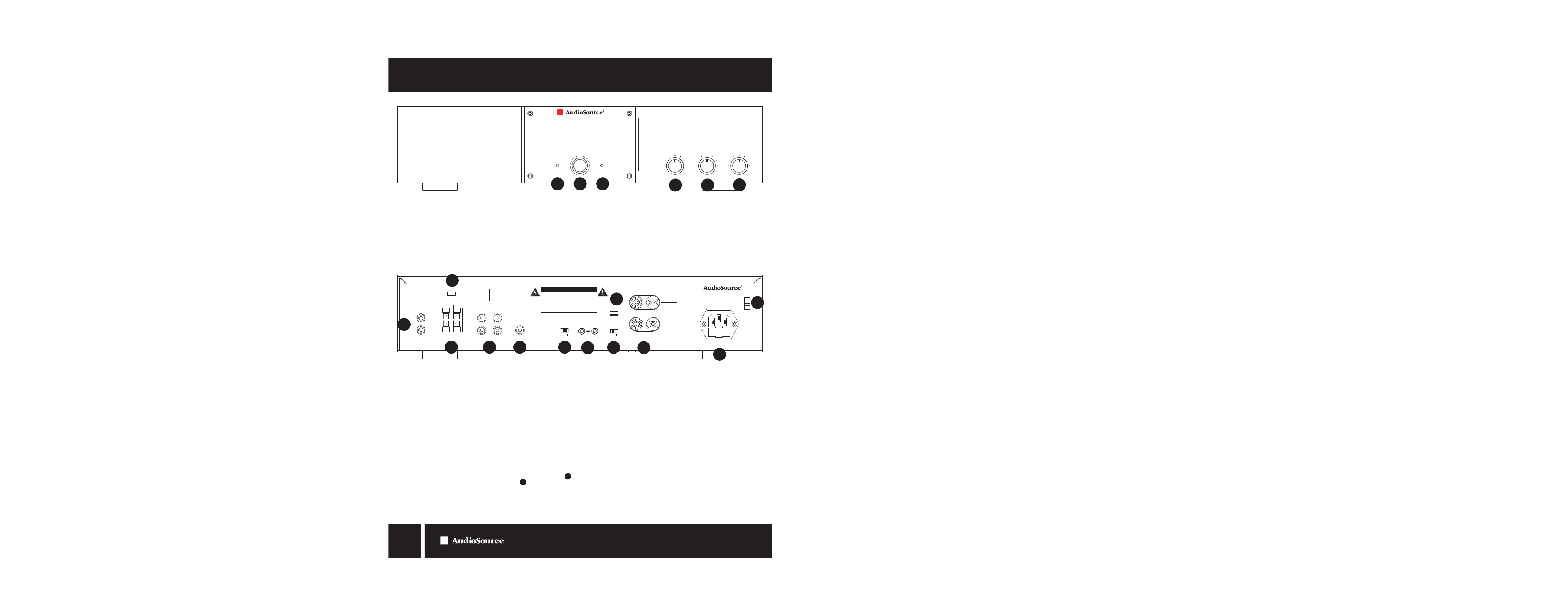

Figure 1. Front Panel
