Owner’s Manual #513674 Rev.2 4 E131I2 & F131I2 Model Machines
2.4 INTELLITEC2™ SETUP
A. Disassemble, clean, lubricate and assemble the
machine following the steps in Section 3.
B. Fill the hoppers with sanitizer.
C. Connect power to the machine and press the
Main Power On/Off button.

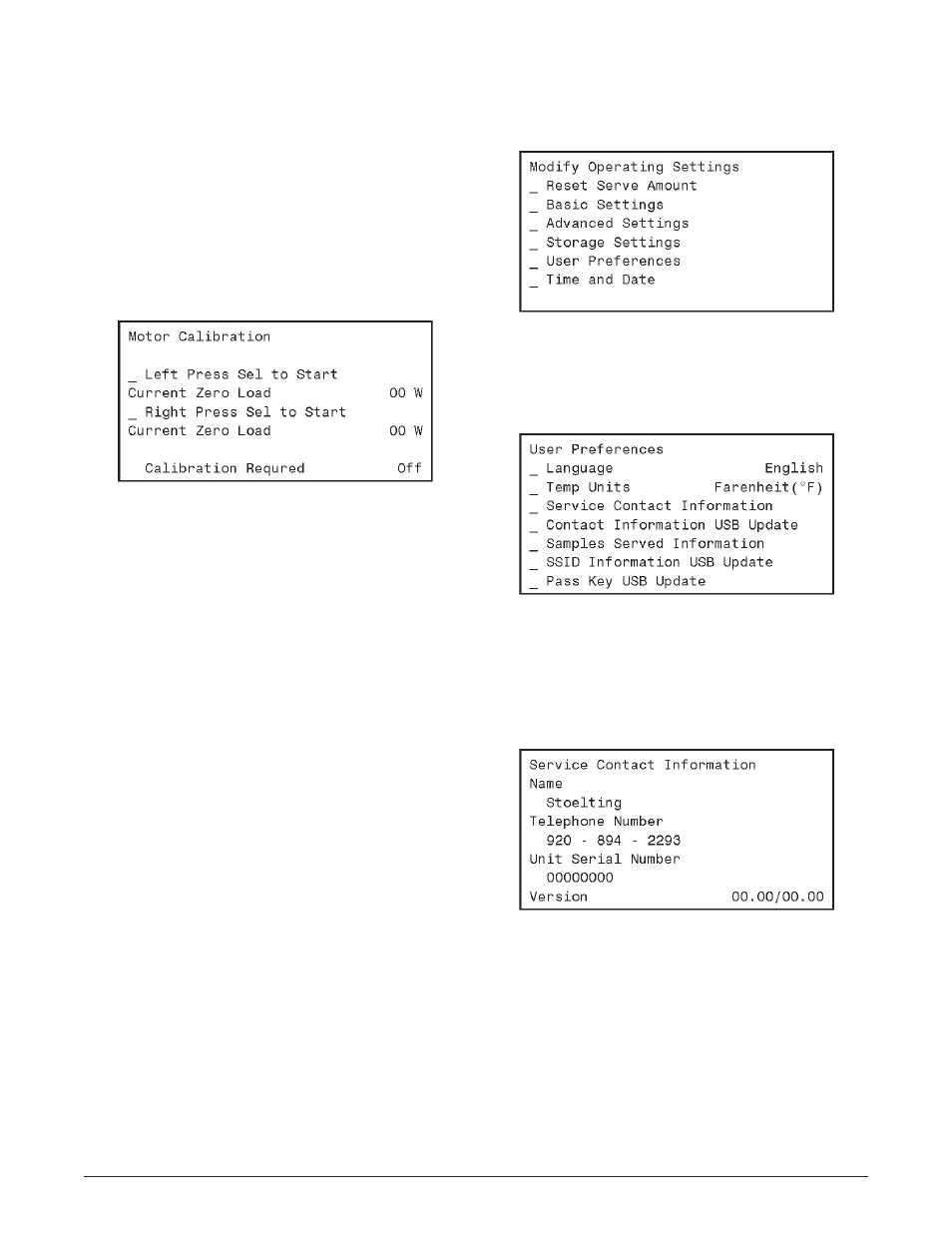

MOTOR CALIBRATION
Before starting the motor calibration, be sure there is
sanitizer in the freezing cylinder.
A. Press the On/Off Left or On/Off Right button. The
Motor Calibration screen will be displayed.
B. Move the cursor over the Left side and press the
SEL button then move the cursor over the Right
side and press the SEL button.
NOTE
The motor calibration can be done for both sides
simultaneously.
C. After the calibration is complete, press the left
arrow button.
D. Drain the machine of sanitizer.
SETTING CONTACT INFORMATION
A. Plug your USB fl ash drive into the control if it is
not already plugged in.
B. From the Current Status screen, press the left
arrow button to access the passcode selection
screen. Press the right arrow, SET, and then the
SEL button.
C. After the password is accepted, use the arrows to
move the cursor to the Modify Settings option and
press the SEL button. Then move the cursor to
the User Preferences and press the SEL button.
D. On the User Preferences screen move the cursor
to the Contact Information USB Update and press
the SEL button.
E. The screen will change and show “File Found” for
a quick second while it updates the information.
F. After updating the contact information, the screen
will show the Service Contact Information page.
G. Press the left arrow button to go back to the Current
Status screen and remove the USB fl ash drive.
Figure 2-1
Figure 2-2
Figure 2-4
Figure 2-3
