3 Upgrading the system 44
Configuring the Hot Plug HDD cage
This section includes instructions for removing and installing the
Hot Plug HDD cage as well as procedures on how to install a hard disk
into the cage’s hard disk carrier.
Note: The Hot Plug HDD cage feature is only applicable to the
Altos G510 model.
To remove the Hot Plug HDD cage
Important: Before detaching the Hot Plug HDD cage from the
chassis, make sure to first remove all hard disks from their carriers.
For instructions, refer to the succeeding section.
1 Remove the front bezel, inner front panel, side panel and air
baffle. Refer to the previous section for detailed intructions.

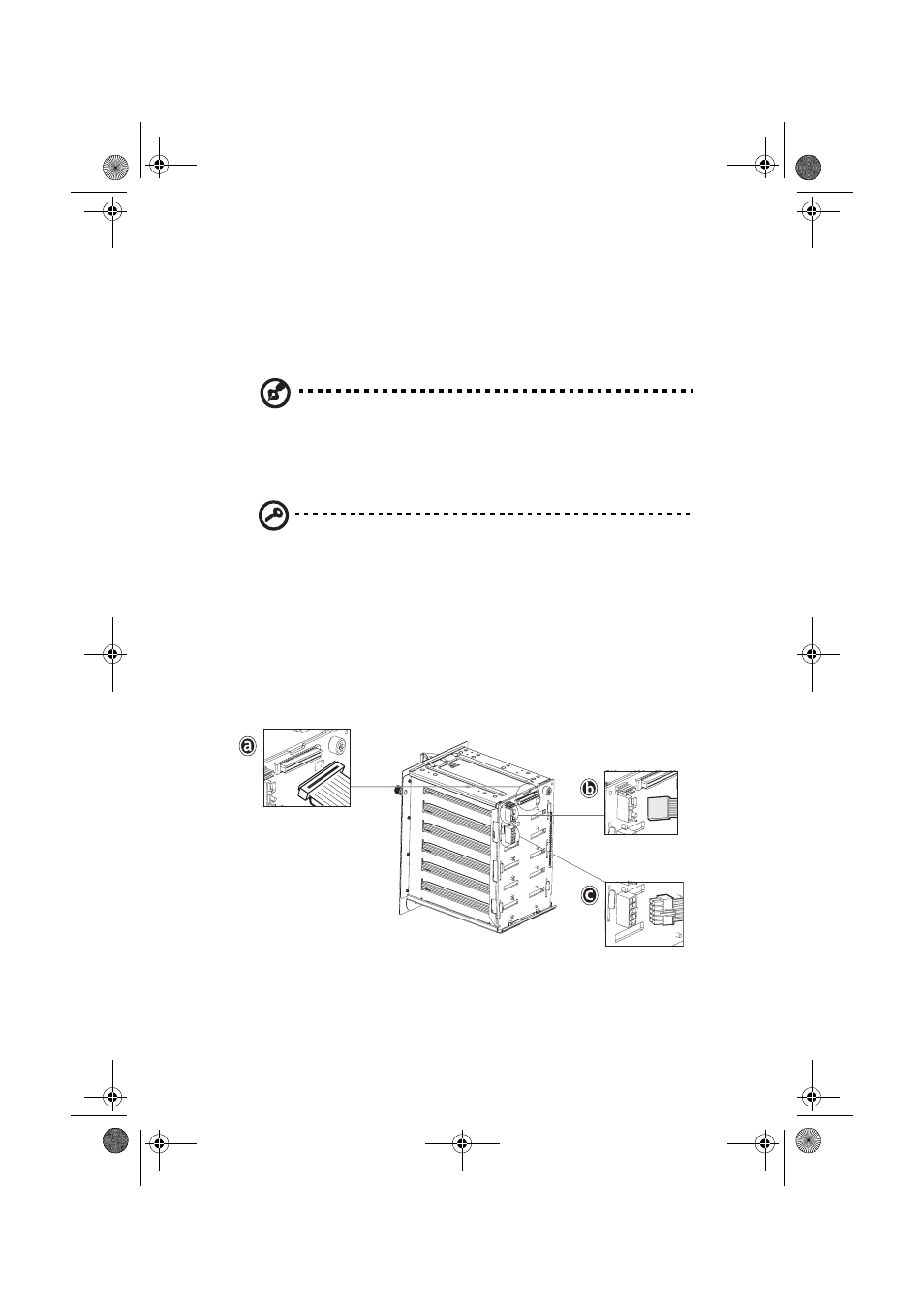

2 Disconnect the following cables from the cage:
a SCSI cable
b SCSI HDD 6 pin management cable
c SCSI HDD power cable
3 Loosen the four thumbscrews that secure the cage to the chassis
(1).
