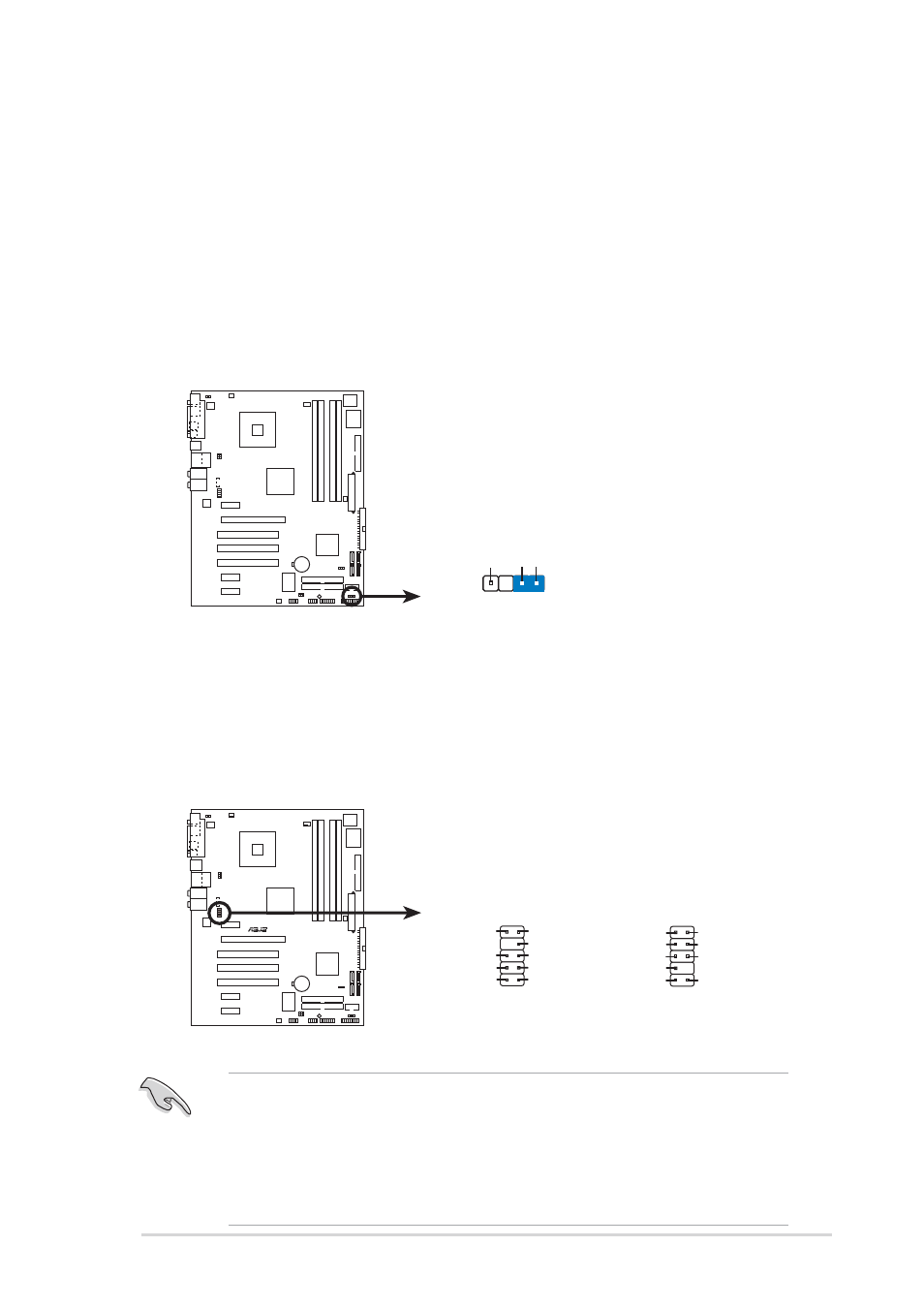

1 2 . 1 2 . 1 2 . 1 2 . 1 2 . Chassis intrusion connector (4-1 pin CHASSIS1) C h a s s i s i n t r u s i o n c o n n e c t o r ( 4 - 1 p i n C H A S S I S 1 ) C h a s s i s i n t r u s i o n c o n n e c t o r ( 4 - 1 p i n C H A S S I S 1 ) C h a s s i s i n t r u s i o n c o n n e c t o r ( 4 - 1 p i n C H A S S I S 1 ) C h a s s i s i n t r u s i o n c o n n e c t o r ( 4 - 1 p i n C H A S S I S 1 )
This connector is for a chassis-mounted intrusion detection sensor or
switch. Connect one end of the chassis intrusion sensor or switch
cable to this connector. The chassis intrusion sensor or switch sends a
high-level signal to this connector when a chassis component is
removed or replaced. The signal is then generated as a chassis
intrusion event.
By default, the pins labeled “Chassis Signal” and “Ground” are shorted
with a jumper cap. Remove the jumper caps only when you intend to
use the chassis intrusion detection feature.
1 3 . 1 3 . 1 3 . 1 3 . 1 3 . Front panel audio connector (10-1 pin AAFP) F r o n t p a n e l a u d i o c o n n e c t o r ( 1 0 - 1 p i n A A F P ) F r o n t p a n e l a u d i o c o n n e c t o r ( 1 0 - 1 p i n A A F P ) F r o n t p a n e l a u d i o c o n n e c t o r ( 1 0 - 1 p i n A A F P ) F r o n t p a n e l a u d i o c o n n e c t o r ( 1 0 - 1 p i n A A F P )
This connector is for a chassis-mounted front panel audio I/O module
that supports either HD Audio or legacy AC ‘97 audio standard.
Connect one end of the front panel audio I/O module cable to this
connector.
• Use a chassis that provides a high-definition audio front panel audio
I/O to use the high-definition audio features.
• The default setting of this connector is legacy AC’97 audio, if you
want to use the High-Definition (Azalia) audio features, set the
F r o n t P a n e l S u p p o r t T y p e
F r o n t P a n e l S u p p o r t T y p e F r o n t P a n e l S u p p o r t T y p e F r o n t P a n e l S u p p o r t T y p e F r o n t P a n e l S u p p o r t T y p e in the BIOS to Azalia. See page
4-27.
P5GD2
P5GD2 Chassis alarm lead
CHASSIS1
+5VSB_MB Chassis Signal GND
(Default)
P5GD2
R
P5GD2 Front panel connector
AAFP
SENSE2_RETUR
PORT1 L
PORT2 R
PORT2 L
SENSE1_RETUR
SENSE_SEND
PORT1 R PRESENCE#
GND BLINE_OUT_L
MIC2
Line out_R
Line out_L
BLINE_OUT_R
NC
MICPWR +5VA
AGND
Azalia-compliant
pin definition
AC’97-compliant
pin definition
