A S U S P 5 G D 2 A S U S P 5 G D 2 A S U S P 5 G D 2 A S U S P 5 G D 2 A S U S P 5 G D 2 2 - 2 9 2 - 2 9 2 - 2 9 2 - 2 9 2 - 2 9
9 . 9 . 9 . 9 . 9 . A T X p o w e r c o n n e c t o r s ( 2 4 - p i n E A T X P W R 1 , A T X p o w e r c o n n e c t o r s ( 2 4 - p i n E A T X P W R 1 , A T X p o w e r c o n n e c t o r s ( 2 4 - p i n E A T X P W R 1 , A T X p o w e r c o n n e c t o r s ( 2 4 - p i n E A T X P W R 1 , A T X p o w e r c o n n e c t o r s ( 2 4 - p i n E A T X P W R 1 , 4 - p i n 4 - p i n 4 - p i n 4 - p i n 4 - p i n
A T X 1 2 V 1 ) A T X 1 2 V 1 ) A T X 1 2 V 1 ) A T X 1 2 V 1 ) A T X 1 2 V 1 )
These connectors are for an ATX power supply plugs. The power
supply plugs are designed to fit these connectors in only one
orientation. Find the proper orientation and push down firmly until the
connectors completely fit.
• Use of an ATX 12 V Specification 2.0-compliant power supply unit
(PSU) that provides a minimum power of 350 W is recommended
for a fully-configured system.
• Do not forget to connect the 4-pin ATX +12 V power plug;
otherwise, the system will not boot up.
• Use of a PSU with a higher power output is recommended when
configuring a system with more power-consuming devices. The
system may become unstable or may not boot up if the power is
inadequate.
• The ATX 12 V Specification 2.0-compliant 350 W PSU passed the
motherboard power requirement test with the following
configuration:
CPU : Intel ® Pentium ® 4 3.6 GHz
Memory : 512 MB DDR2 (x 4)
Grpahics card : PCI Express x16 Nvidia EN5900
Parallel ATA devices : IDE hard disk drive (x 2)
Serial ATA device : SATA hard disk drive
Optical drives : CD-ROM (x 2)
SCSI devices : SCSI card and SCSI hard disk drive
• You must install a PSU with a higher power rating if you intend to
install additional devices.
P5GD2
R

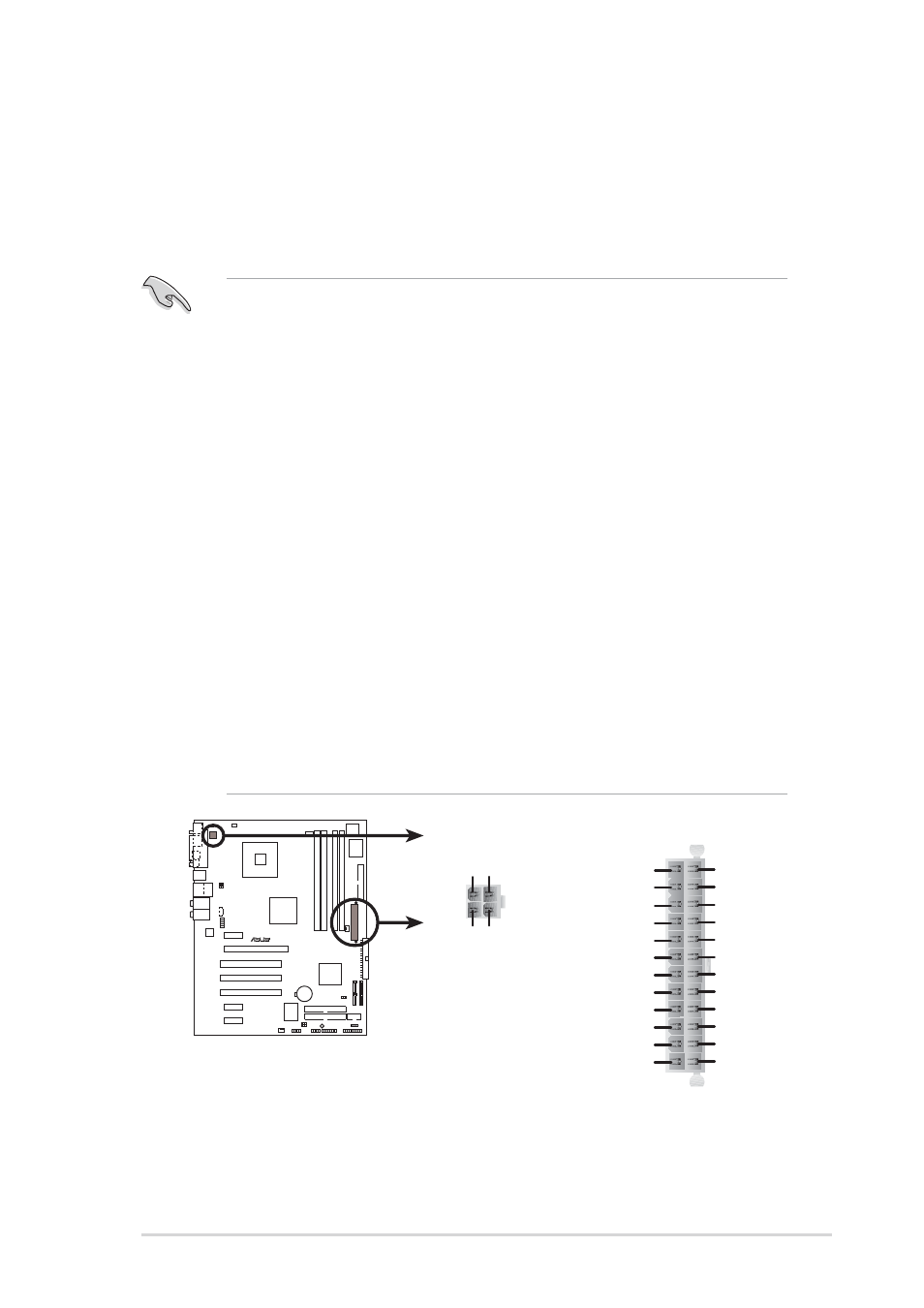

P5GD2 ATX power connectors
EATXPWR1
ATX12V1
GND
+12V DC GND
+12V DC
+3 Volts
+3 Volts
Ground
+5 Volts
+5 Volts
Ground
Ground
Power OK
+5V Standby
+12 Volts
-5 Volts
+5 Volts
+3 Volts
-12 Volts
Ground
Ground
Ground
PSON#
Ground
+5 Volts
+12 Volts
+3 Volts
+5 Volts
Ground
