Silent Call Gentex 710ls - Manual (Page 3)

SMOKE
DETECTOR
POWER
AUXILIARY
CONTACTS

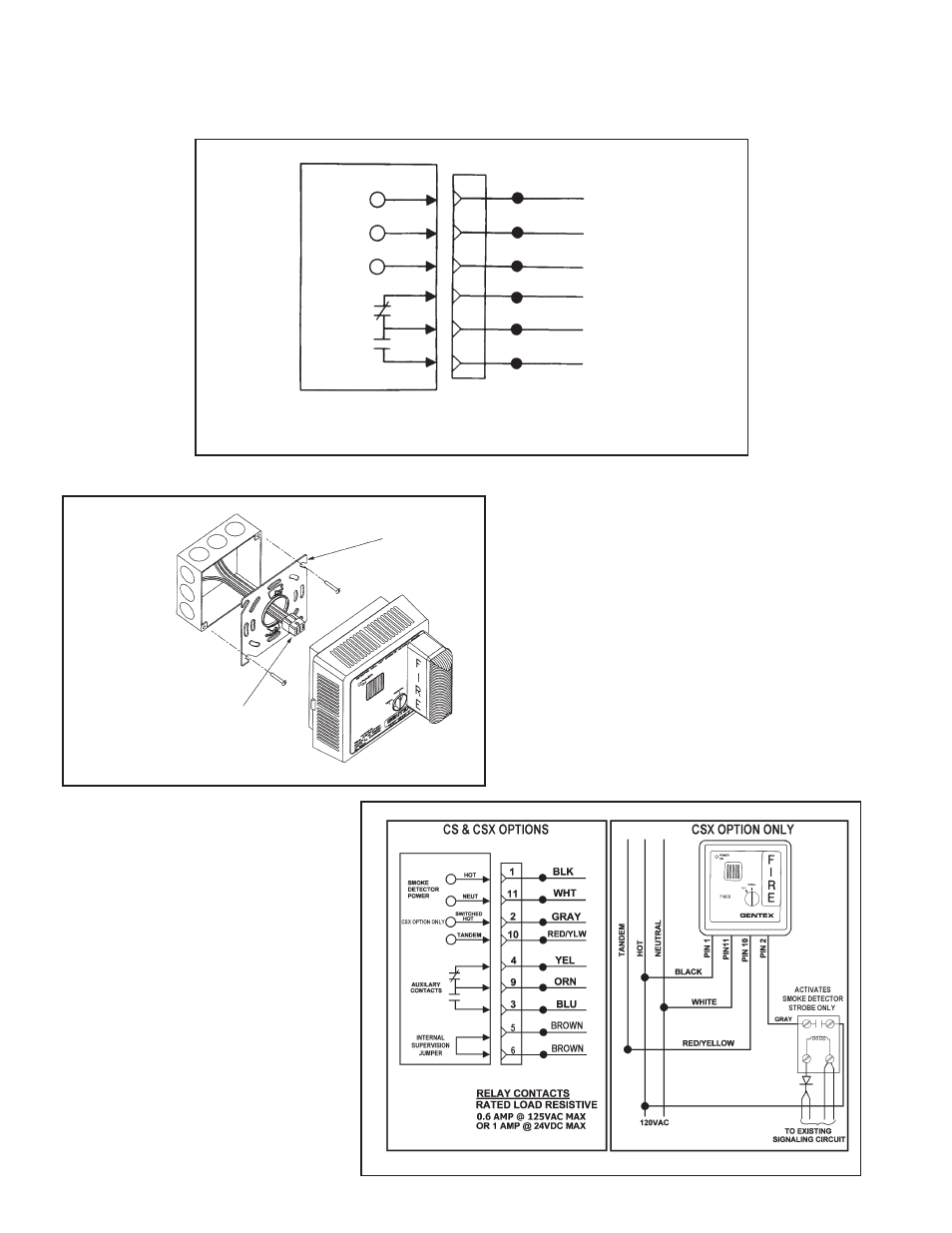

Wiring Diagram
710CS
7109CS
713CS
7139CS
710CS
7109CS
713CS
7139CS
HOT
NEUT
TANDEM
1
11
10
4
9
3
RELAY CONTACTS
RATED LOAD RESISTIVE
0.6 AMP @ 125 VAC MAX
0R 1 AMP @ 24 VDC MAX
BLK
WHT
RED/YEL
YEL
ORN
BLU
UNIVERSAL MOUNTING PLATE
QUICK-DISCONNECT PLUG
SMOKE DETECTOR
Operating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120 VAC, 60Hz
Operating Current . . . . . . . . . . . . . . . . . . . . . . . . . .0.400 amps (Peak)
Operating Ambient Temp Range . . . . . . . . . . . . . . . . . . .40°F to 100°F
Alarm Horn Rating . . . . . . . . . . . . . . . . . . . . . . . .90 Decibels at 10 Ft.
Nominal Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . .2.5% Obscuration
Auxiliary Relay (Standard) . . . . . . . . . . . . . . . . . . .1 Form C (0.6 amp)
(710/713CS and 7109/7139CS)
*9 VDC alkaline battery (supplied)
Electrical Specifications
The CSX models are used
for remote annunciation of
the strobe.
