ADCP-90-250
Issue 1, November 1996
Page 9
1996, ADC Telecommunications, Inc.
8519-A
CABLE CLAMP
MOUNTING PLATE
RUBBER
GROMMET
#4 MOUNTING
SCREWS
CABLE
CLAMP
YOKES
CABLE CLAMP
TOP PLATE
CLAMP
SCREWS

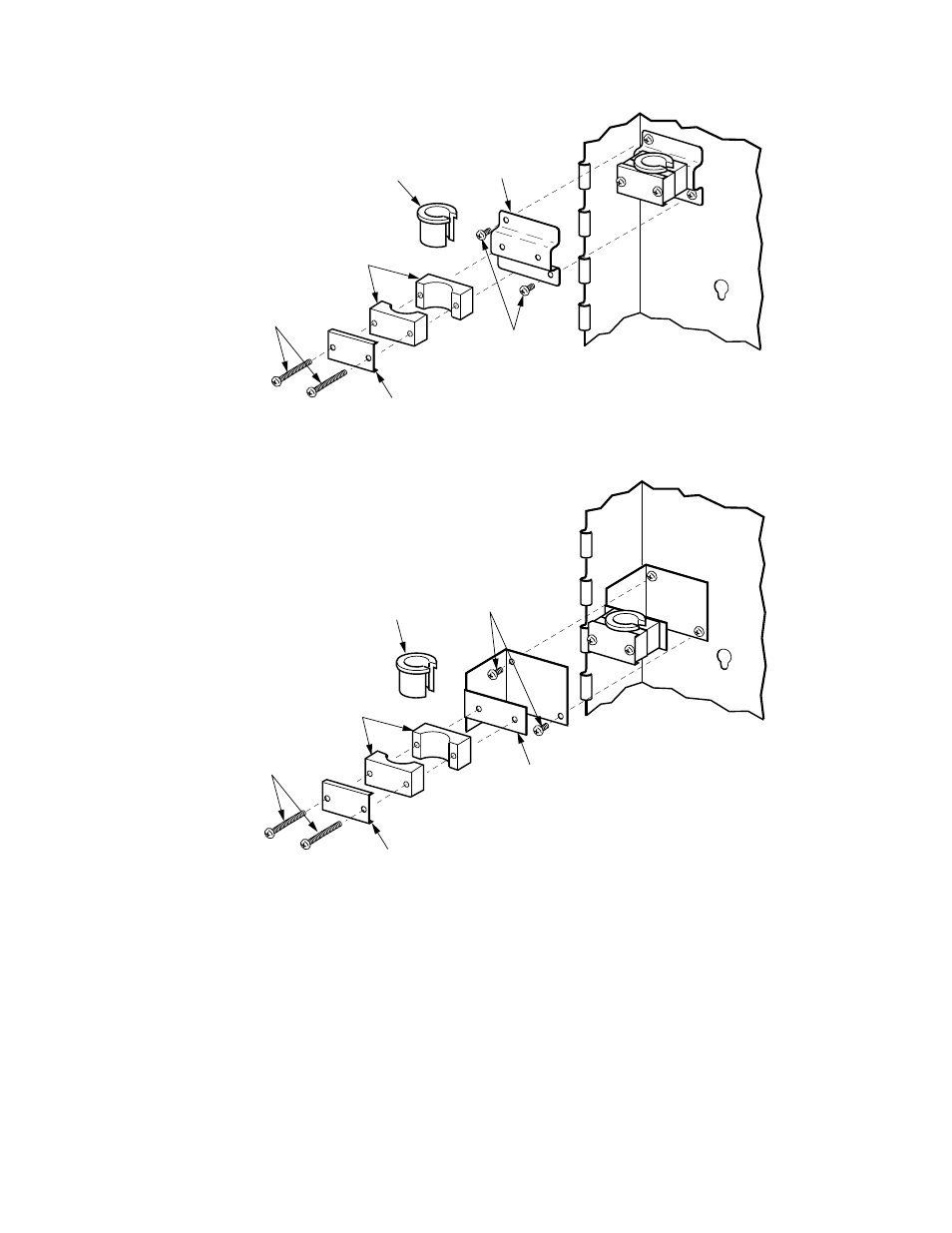

Figure 7. Lower Cable Clamp Assembly Details
8520-A
CABLE CLAMP
MOUNTING PLATE
RUBBER
GROMMET
#4 MOUNTING
SCREWS
CABLE
CLAMP
YOKES
CABLE CLAMP
TOP PLATE
CLAMP
SCREWS
Figure 8. Upper Cable Clamp Assembly Details
Splicing OSP Cable(s) to Fiber Cables
2.08 If the soft wall bundle fiber cables are already installed and routed to the splice trays,
prepare the ends of the OSP cable(s) and splice them to the fiber cables according to local
practice for heat shrink fusion splices. For your convenience,
between the retainer/adapter positions and the color-coded fibers in the fiber cables. The adapter
numbers are also marked approximately two inches (five cm) from the end of the cable jacket at
the stub ends of the fibers.
