2-15

MS-9858

J

uMper

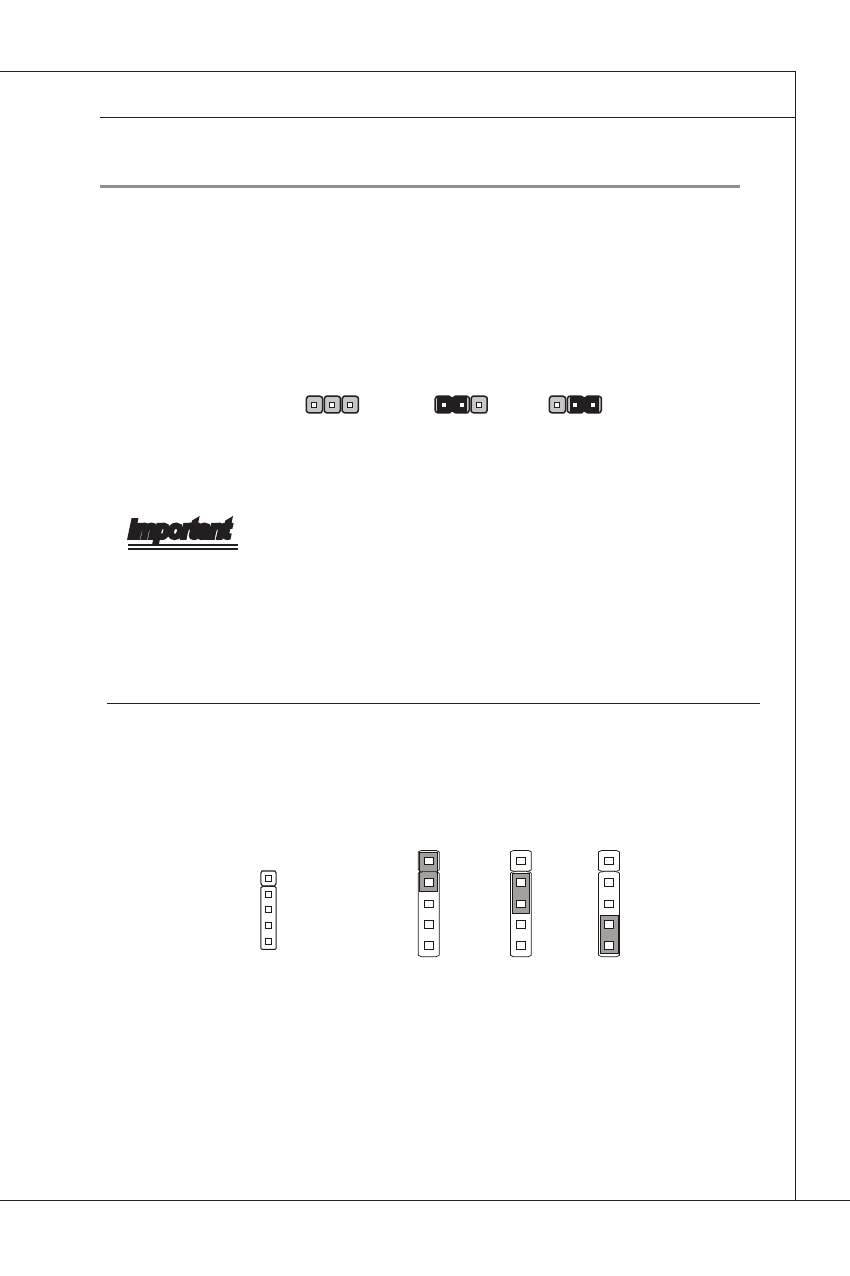

LVdS Power Selection Jumper: JVdd1

Use this jumper to specify the operation voltage of the LVDS interfaced flat panel.

1

1

+3.3V

1

+5V

1

+12V

Clear CMOS Jumper: JCMOS1

There is a CMOS RAM onboard that has a power supply from an external bat-

tery to keep the data of system configuration. With the CMOS RAM, the system

can automatically boot OS every time it is turned on. If you want to clear the

system configuration, set the jumper to clear data.

Important

You can clear CMOS by shorting 2-3 pin while the system is off. Then return to

1-2 pin position. Avoid clearing the CMOS while the system is on; it will damage

the mainboard.

Keep Data

Clear Data

1

1

1
