MSI AM-780E V1.1 User Manual
Page 13
2-5
MS-9858

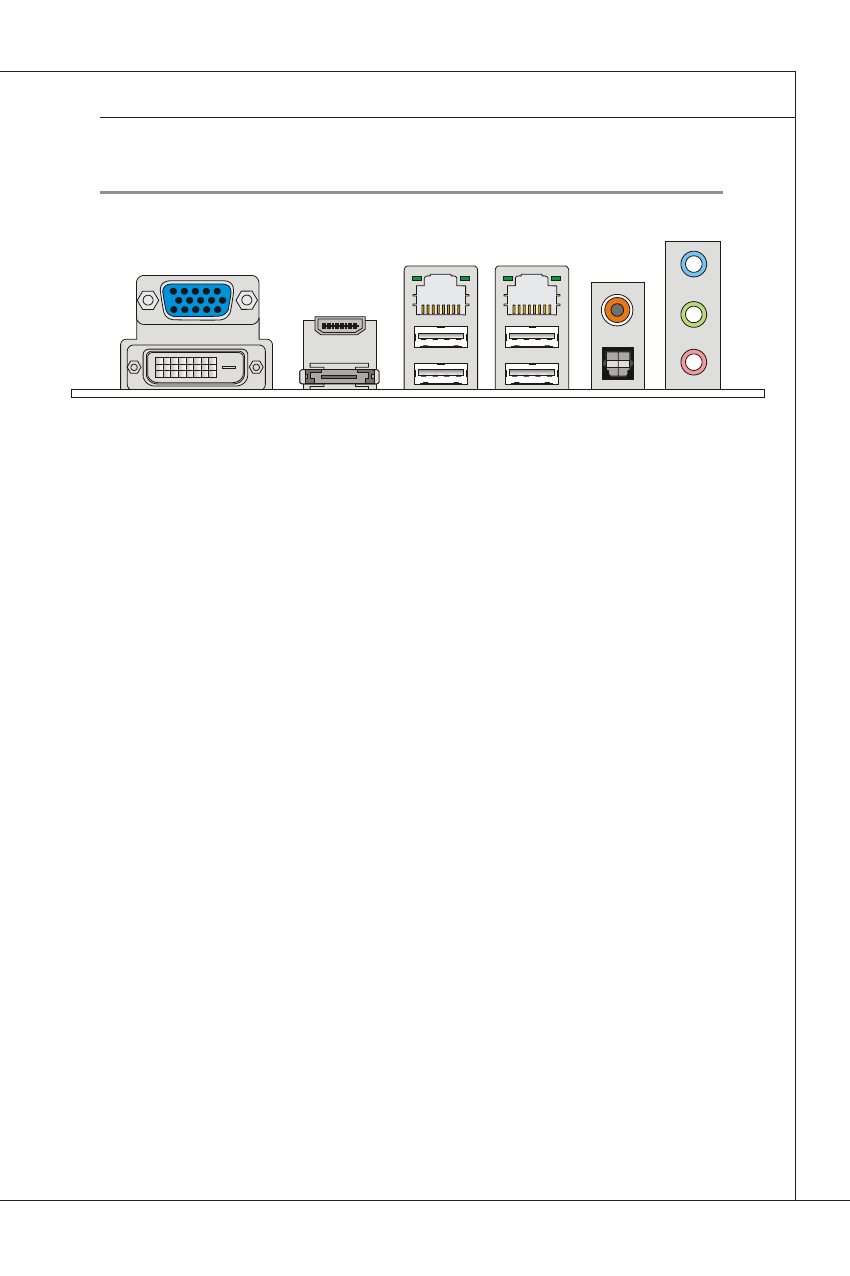

b
ack
p
anel
i/o
VGA Port
E-SATA Port
dVI-d Port
HdMI Port
uSB Port uSB Port
LAN
Line-In
Line-Out
Mic-In
S/PdIF
LAN
VGA Port
The DB15-pin female connector is provided for monitor.
dVI-d Port
The DVI-D (Digital Visual Interface) connector allows you to connect a LCD monitor.
It provides a high-speed digital interconnection between the computer and its display
device. To connect an LCD monitor, simply plug your monitor cable into the DVI-D
connector, and make sure that the other end of the cable is properly connected to
your monitor (refer to your monitor manual for more information.)
HdMI Port
The High-Definition Multimedia Interface (HDMI) is an all-digital audio/video interface
capable of transmitting uncompressed streams. HDMI supports all TV format, includ-
ing standard, enhanced, or high-definition video, plus multi-channel digital audio on
a single cable.
E-SATA Port
The eSATA port is provided for eSATA external hard disk drive.
uSB Port
The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard,
mouse, or other USB-compatible devices.
S/PdIF
This connector is used to connect S/PDIF (Sony & Philips Digital Interconnect For-
mat) interface for digital audio transmission.
▶
▶
▶
▶
▶
▶
