2-6
HARdWARE SETuP
▍

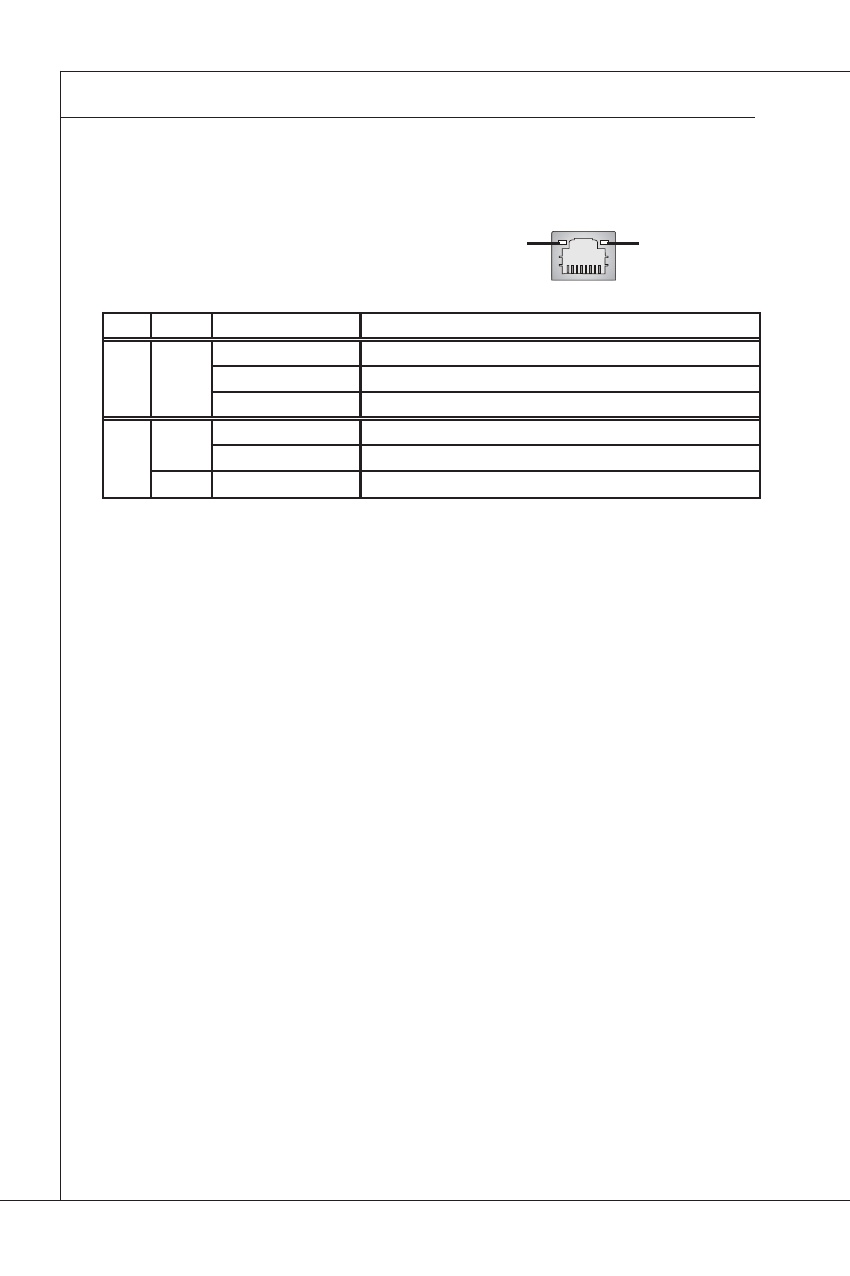

LAN
The standard RJ-45 LAN jack is for
connection to the Local Area Network
(LAN). You can connect a network
cable to it.
LED Color LED State Condition
Left Yellow Off LAN link is not established.
On (Steady state) LAN link is established.
On (brighter & pulsing) The computer is communicating with another computer on the LAN.
Right Green Off 10 Mbit/sec data rate is selected.
On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
Audio Ports
These audio connectors are used for audio devices. It is easy to differentiate
between audio effects according to the color of audio jacks.
Line-In (Blue) - Line In, is used for external CD player, tapeplayer or
other audio devices.
Line-Out (Green) - Line Out, is a connector for speakers or head-
phones.
Mic (Pink) - Mic, is a connector for microphones.
▶
▶
■
■
■
Speed Indicator Activity Indicator
