2-10
HARdWARE SETuP
▍

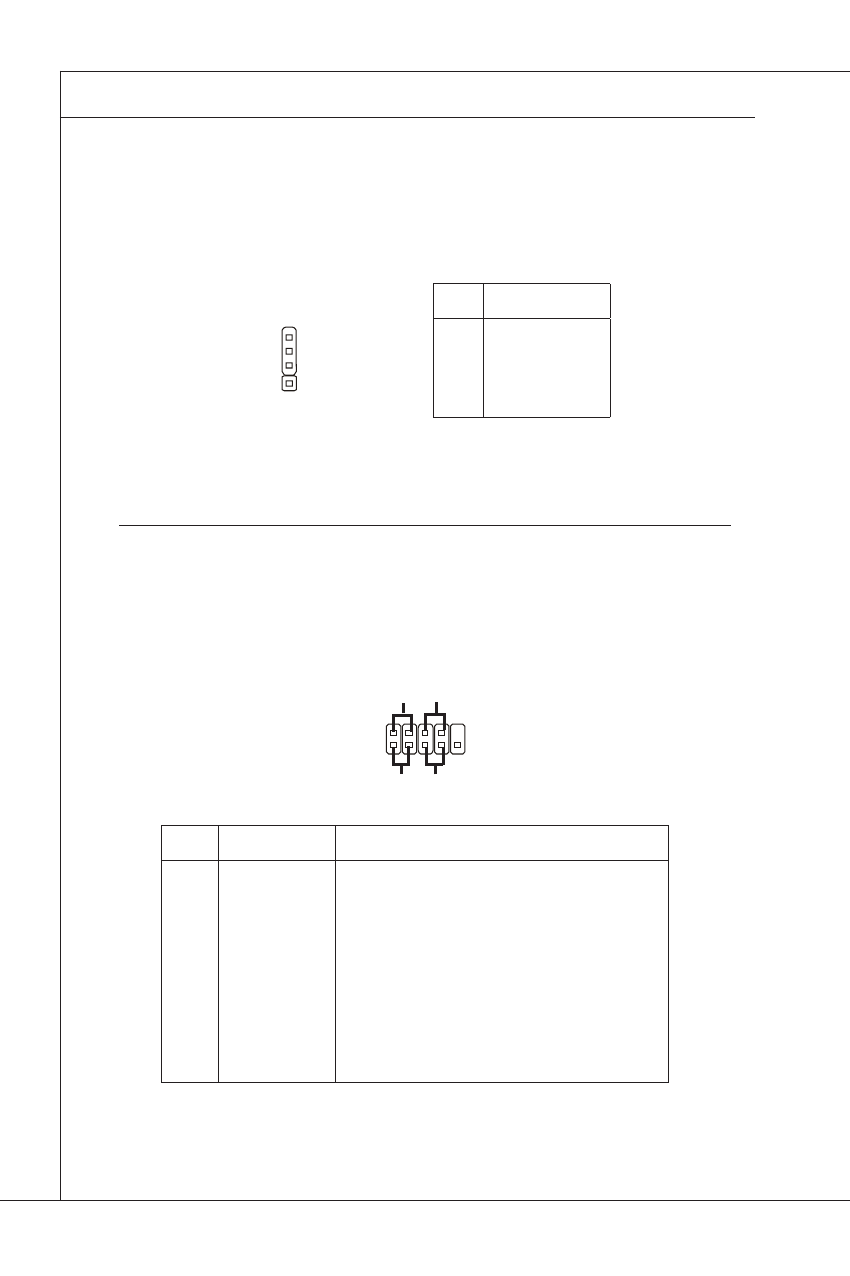

Front Panel Connector: JFP1
This connector is provided for electrical connection to the front panel switches
/LEDs and is compliant with Intel Front Panel I/O Connectivity Design Guide.
PIN SIGNAL dESCRIPTION
1
2
3
4
5
6
7
8
9 HDD +
PLED
HDD -
SLED
RESET-
PWSW +
RESET +
PWSW -
NC Hard disk LED pull-up
MSG LED pull-up
Hard disk active LED
MSG LED pull-up
Reset Switch low reference pull-down to GND
Power Switch high reference pull-up
Reset Switch high reference pull-up
Power Switch low reference pull-down to GND
Reserved. Do not use.
1
2
9
10
Hdd
LEd
Reset
Switch
Power
LEd
Power
Switch
+ - - +
+ -
Audio Amplifier Connector: JAMP1
The JAMP1 is used to connect audio amplifiers to enhance audio performance.
PIN SIGNAL
1
2
3
4 GND
AMP_OUT_L
GND
AMP_OUT_R
1
