Hardware Setup

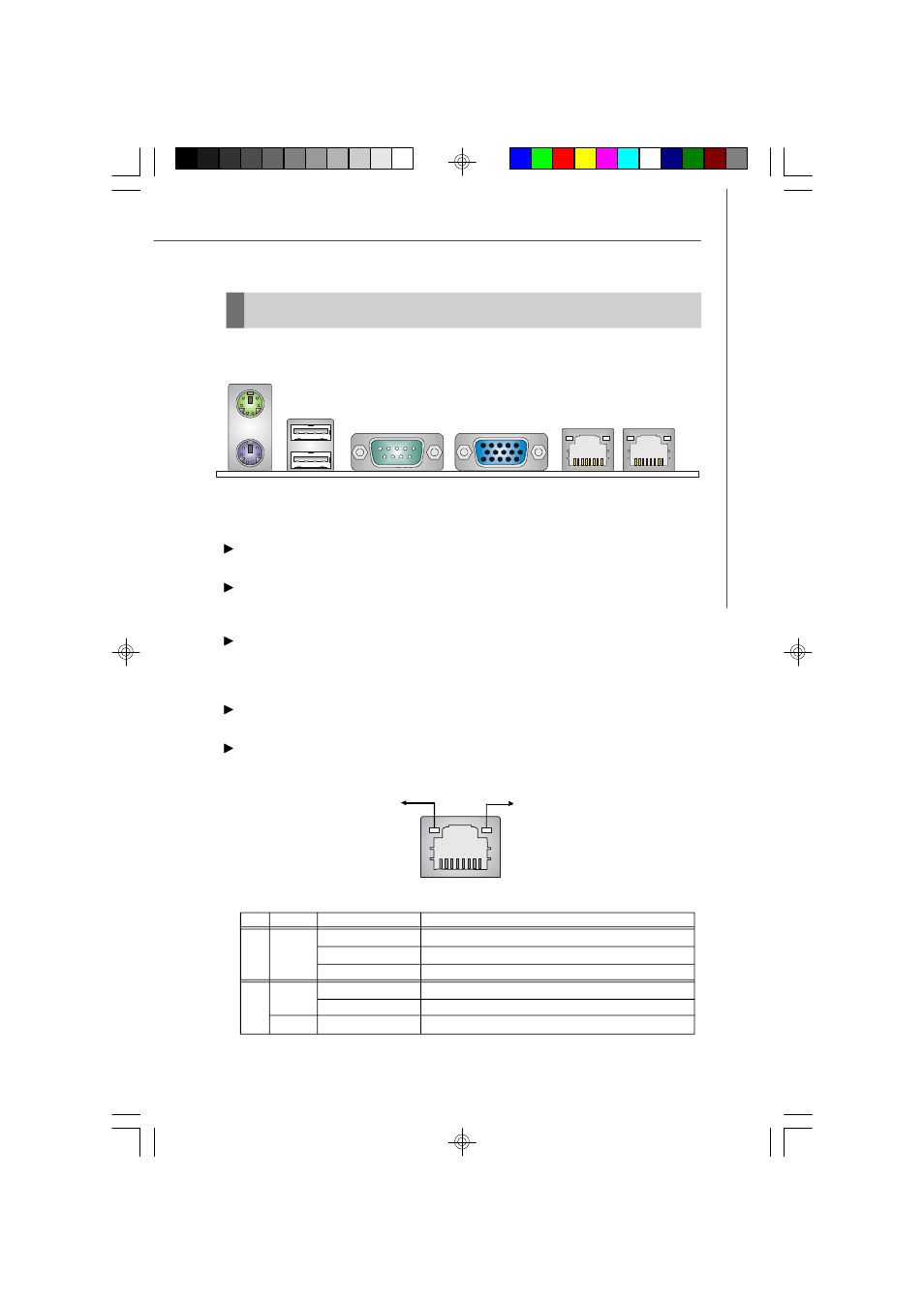

Back Panel
M ouse/Keyboard Connector
The standard PS/2 ® mouse/keyboard DIN connector is for a PS/2 ® mouse/keyboard.
USB Ports
The OHCI (Open Host Controller Interface) Universal Serial Bus root is for attaching
USB devices such as keyboard, mouse, or other USB-compatible devices.
Serial Port
The serial port is a 16550A high speed communications port that sends/ receives 16
bytes FIFOs. You can attach a serial mouse or other serial devices directly to the
connector.
VGA Port
The DB15-pin female connector is provided for VGA monitors.
RJ-45 LAN Jack
The standard RJ-45 jack is for connection to single Local Area Network (LAN). You
can connect a network cable to it.
Keyboard
USB Ports
M ou se
VGA Port Serial Port LAN LAN
LED Color LED State Condition
Off LAN link is not established.
Left Orange On (steady state) LAN link is established.
On (brighter & pulsing) The computer is communicating with another computer on the LAN.
Green Off 10 Mbit/sec data rate is selected.
Right On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
Link Indicator Activity Indicator
RJ-45 LAN Jack
