MS-9638 Server Board
2-6

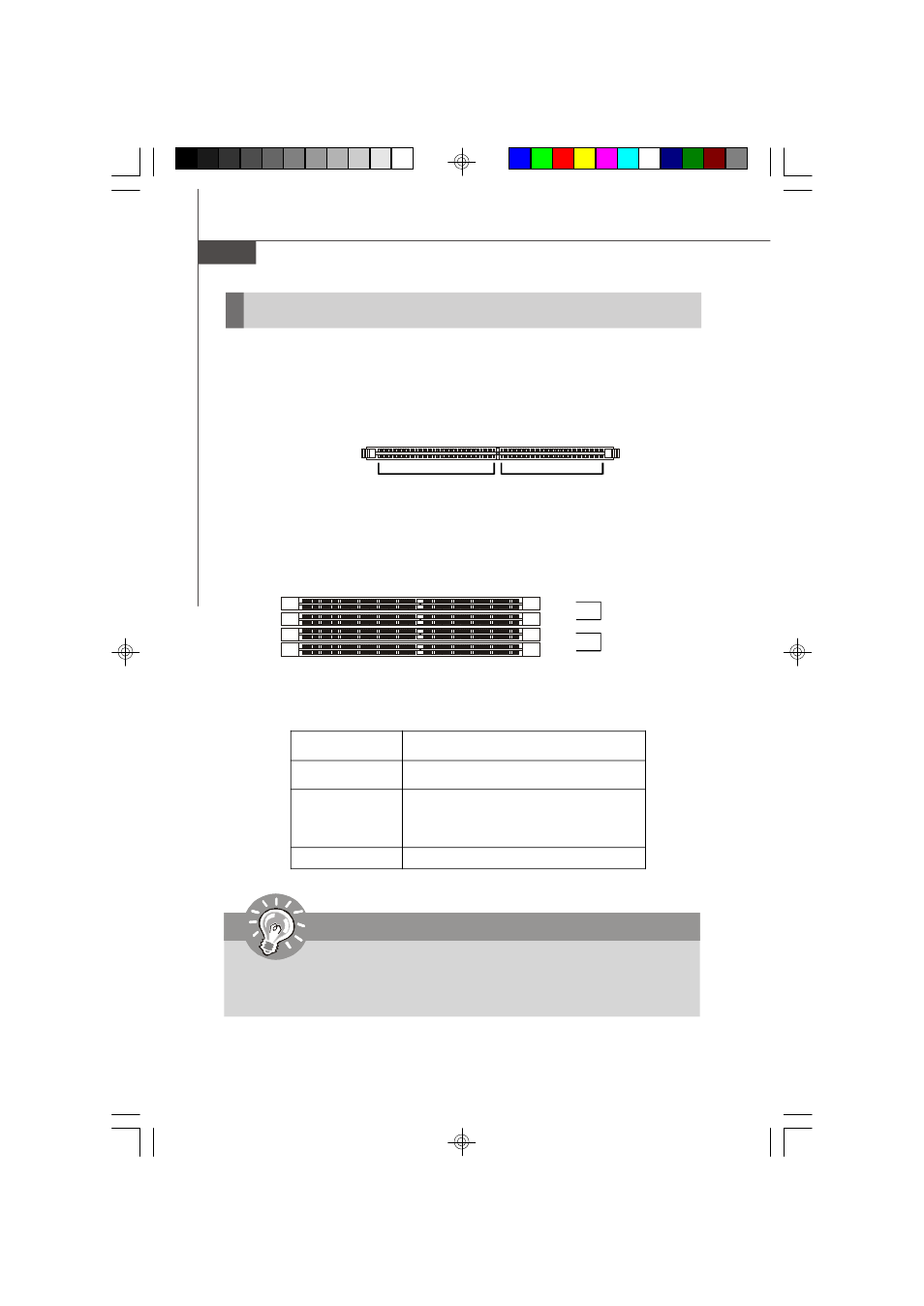

Memory
64x2=128 pin 56x2=112 pin
DDRII
240-pin, 1.8V
Memory Population Rules
FBD12
FBD11
FBD02
FBD01
Channel 1
Channel 0
Important
1. To enable successful system boot-up, always insert the memory modules
into the FBD01 first (Channel 0/ 1st).
2. In dual-channel mode, DIMM modules must be of the same type and density.
Check the numbers of your DIMM modules and follow the population rules to install the
memory.
Numbers of DIMM Population Rules
1 DIMM Module FBD01
2 DIMM Modules FBD01, FBD02
OR
FBD01, FBD11
4 DIMM Modules FBD01, FBD02, FBD11, FBD12
The mainboard provides four 240-pin 533/667MHz ECC DDRII FB-DIMM slots to sup-
port the maximum of 16GB memory capacity.
For more information on compatible components, please visit http://www.msi.com.
tw/program/products/server/svr/pro_svr_qvl.php.
