5. TYPICAL PERFORMANCE PLOTS
50
55
60
65
70
75
80
85
90
95
100
10 20 30 40 50 60 70 80 90 100 110 120
E
ffi
cie
nc
y
(%)
Output Power (Watts)
120V
230V
277V
0.80
0.82
0.84
0.86
0.88
0.90
0.92
0.94
0.96
0.98
1.00
20 30 40 50 60 70 80 90 100 110 120
Pow
e
r Fa
ctor
Output Power (Watts)
120V
230V
277V

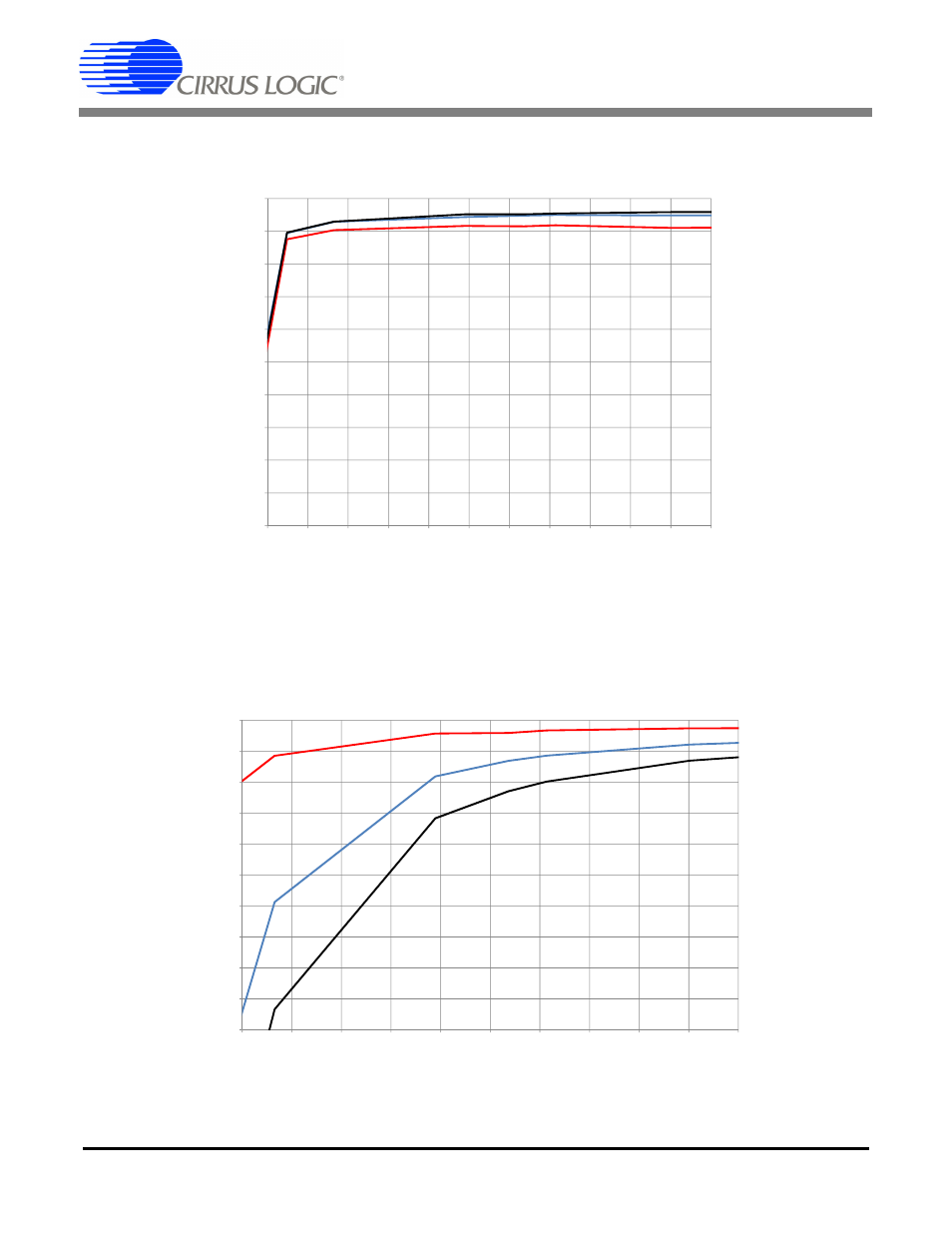

Figure 9. Efficiency vs. Output Power
Figure 10. Power Factor vs. Output Power
