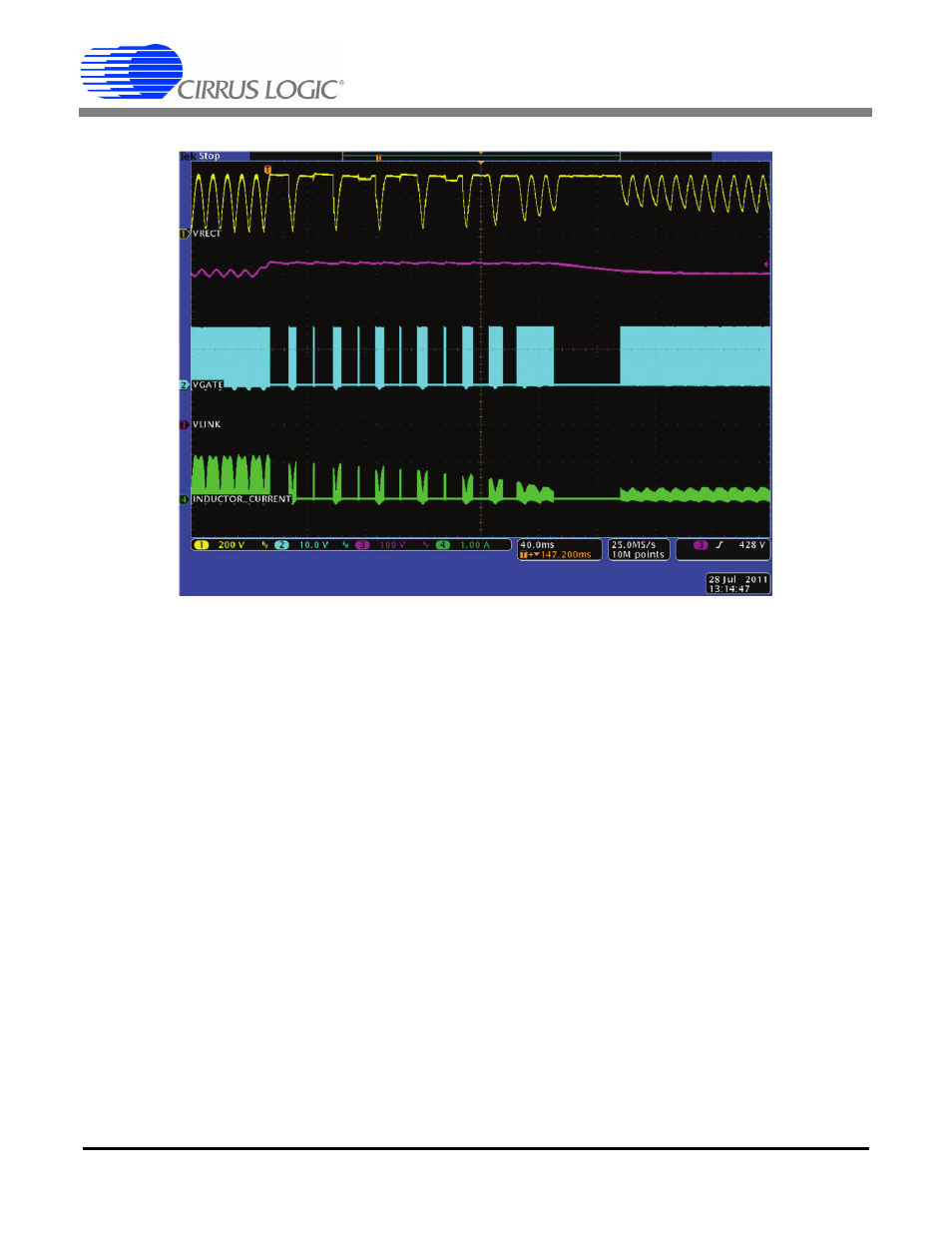

Figure 6. Load Transient - 40W to 4W at 1W/
Sec (220VAC)
6. Summary
Link capacitor design considerations when using the CS1601 are detailed in this application note. A design case
study and procedure are outlined. The results and performance are verified using the CDB1601-12W evaluation
board. The results above illustrate that a small capacitance can be selected for the link output voltage and that film
capacitors can be used to increase the life cycle of the component.
