CDB8427
6
3. CDB8427.EXE USER'S GUIDE
3.1 Main Window
The CDB8427 Control Panel allows you to view
and access the data flow configuration of the
CS8427. See
Figure 1 . Clicking the right mouse
button in any of the boxes will bring up a property
menu containing all the register bits relevant to that
block, as well as some high level functions, such as
data sources and formatting options.
To access additional details about each block, click
the left mouse button on the desired block. This
will display a control panel for the selected block.
If you click outside the boxes, you will bring up the
Board Setup control panel, as shown on the next
page. Note that you can click on any of the tabs to
quickly access that section. Also, any changes you
make in the panel are immediately reflected in the
Main Window, so you may wish to arrange them so
that they do not obscure each other.

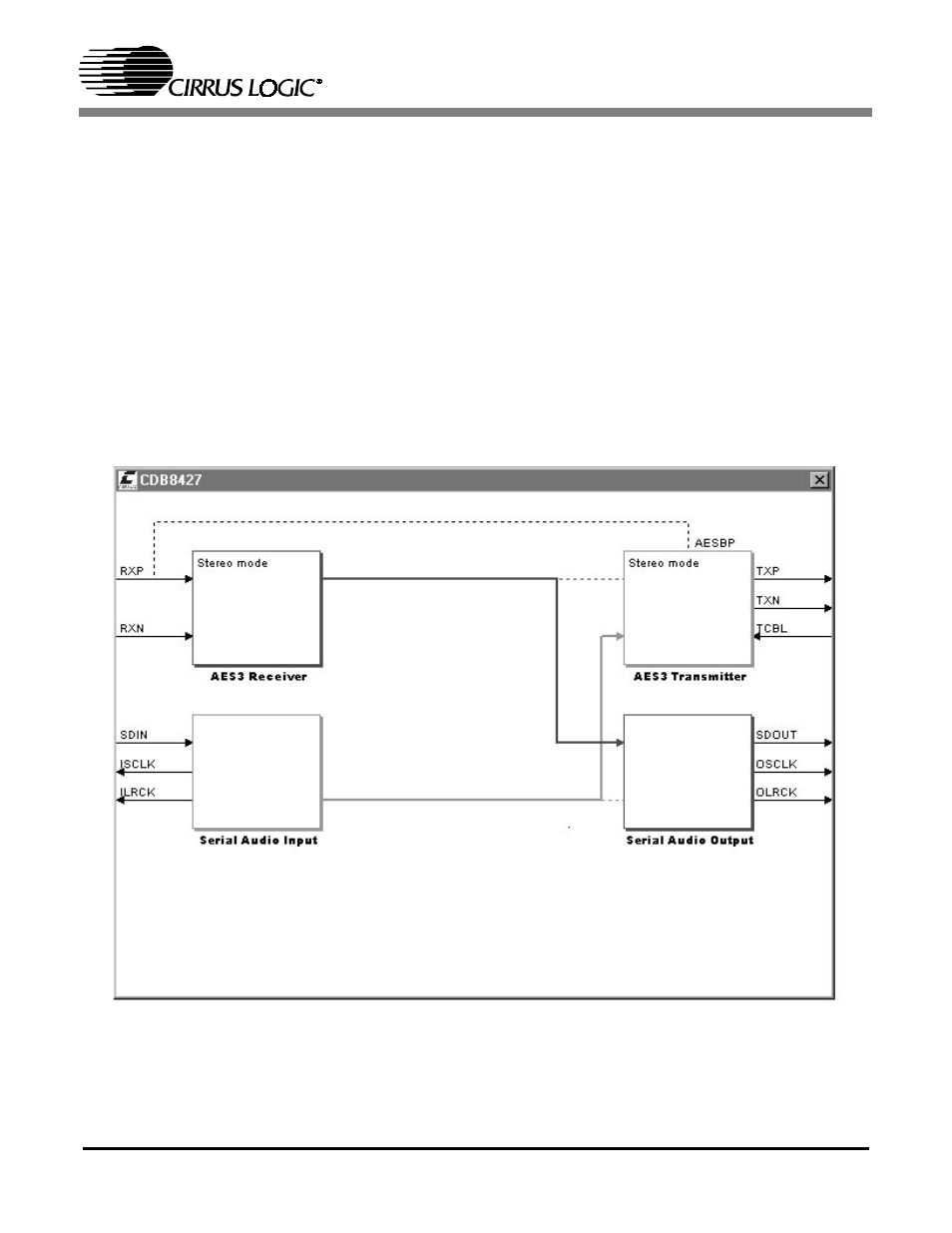

Figure 1. CDB8427 Control Panel Main Window
