3. AC LINK FRAME DEFINITION
The AC-link is a bidirectional serial port with data
organized into frames consisting of one 16-bit and
twelve 20-bit time-division multiplexed slots. The
first slot, called the tag slot, contains bits indicating
if the CS4297A is ready to receive data (input
frame) and which, if any, other slots contain valid
data. Slots 1 through 12 contain audio or con-
trol/status data. Both the serial data output and in-
put frames are defined from the controller
perspective, not from the CS4297A perspective.
The controller synchronizes the beginning of a
frame with the assertion of the SYNC signal.
Figure 9 shows the position of each bit location
within the frame. The first bit position in a new se-
rial data frame is F0 and the last bit position in the
serial data frame is F255. When SYNC goes active
(high) and is sampled active by the CS4297A (on
the falling edge of BIT_CLK), both devices are
synchronized to a new serial data frame. The data
on the SDATA_OUT pin at this clock edge is the
final bit of the previous frame’s serial data. On the
next rising edge of BIT_CLK, the first bit of Slot 0
is driven by the controller on the SDATA_OUT
pin. On the next falling edge of BIT_CLK, the
CS4297A latches this data in, as the first bit of the
frame.
20.8 µs
(48 kHz)
Tag Phase Data Phase
12.288 MHz
81.4 ns
SYNC
BIT_CLK
SDATA_OUT
SDATA_IN
F0 F1 F2 F16 F15 F14 F13 F12 F35 F56 F76
D19
F255
Valid
Frame
Slot 1
Valid
0 R/W 0 WD15
F36 F57
D19 D18 D19
D19 D18 D19 RD15 0 0 0 0
F0 F1 F2 F16 F15 F14 F13 F12 F35 F56 F76 F255 F36 F57
F255
F255
0 0
GPIO
INT
F96
F96
D19
Slot 0 Slot 1 Slot 2 Slot 3 Slot 4 Slots 5-12
Slot 2
Valid
Slot 1
Valid
Slot 2
Valid
Codec
Ready
0
Slot 12
Valid
Codec
ID1
Codec
ID0
Slot 12
Valid
GPIO
INT
Bit Frame Position:
Bit Frame Position:

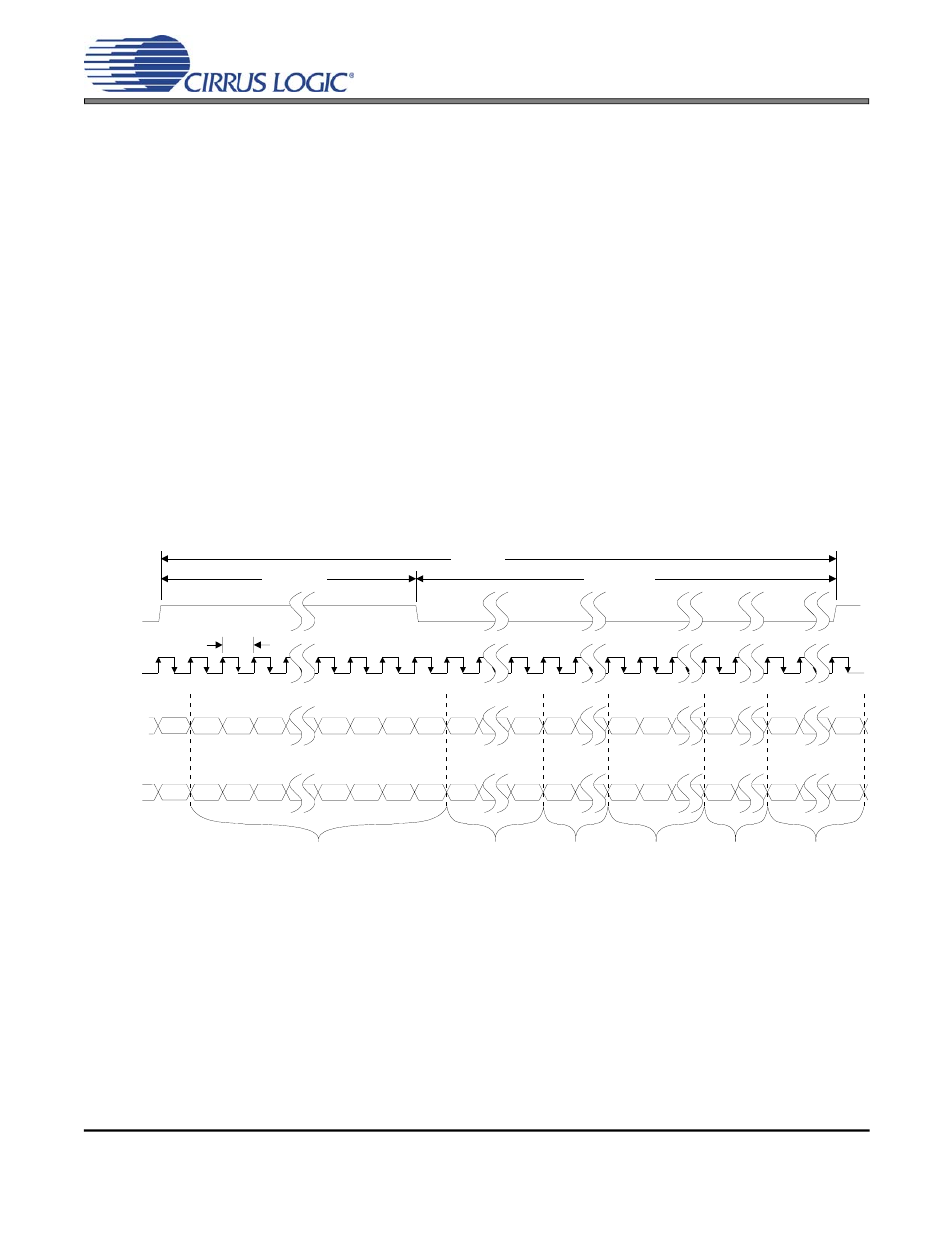

Figure 9. AC-link Input and Output Framing
