3. CDB 427X .EXE USER'S GUIDE
3.1 Main Window
The main window of the CDB4271 Graphical User Interface allows the user to view and
change the configuration of the CS4271 and on-board configuration logic.
The Board Setup box contains all the controls necessary to manage clock and data routing
and formats. To apply changes to the board, the “Send Board Setup” button must be pressed
after making changes within the Board Setup box.
The CS4271/2 Setup box allows configuration of the internal registers of the CS4271. Chang-
es made within this box will be reflected immediately. When in I
2
C mode, the “Update” button
will read the registers of the CS4271 and update the CS4271/2 Setup box to match.
Clicking the “Advanced...” button will launch a graphical register map of the CS4271.

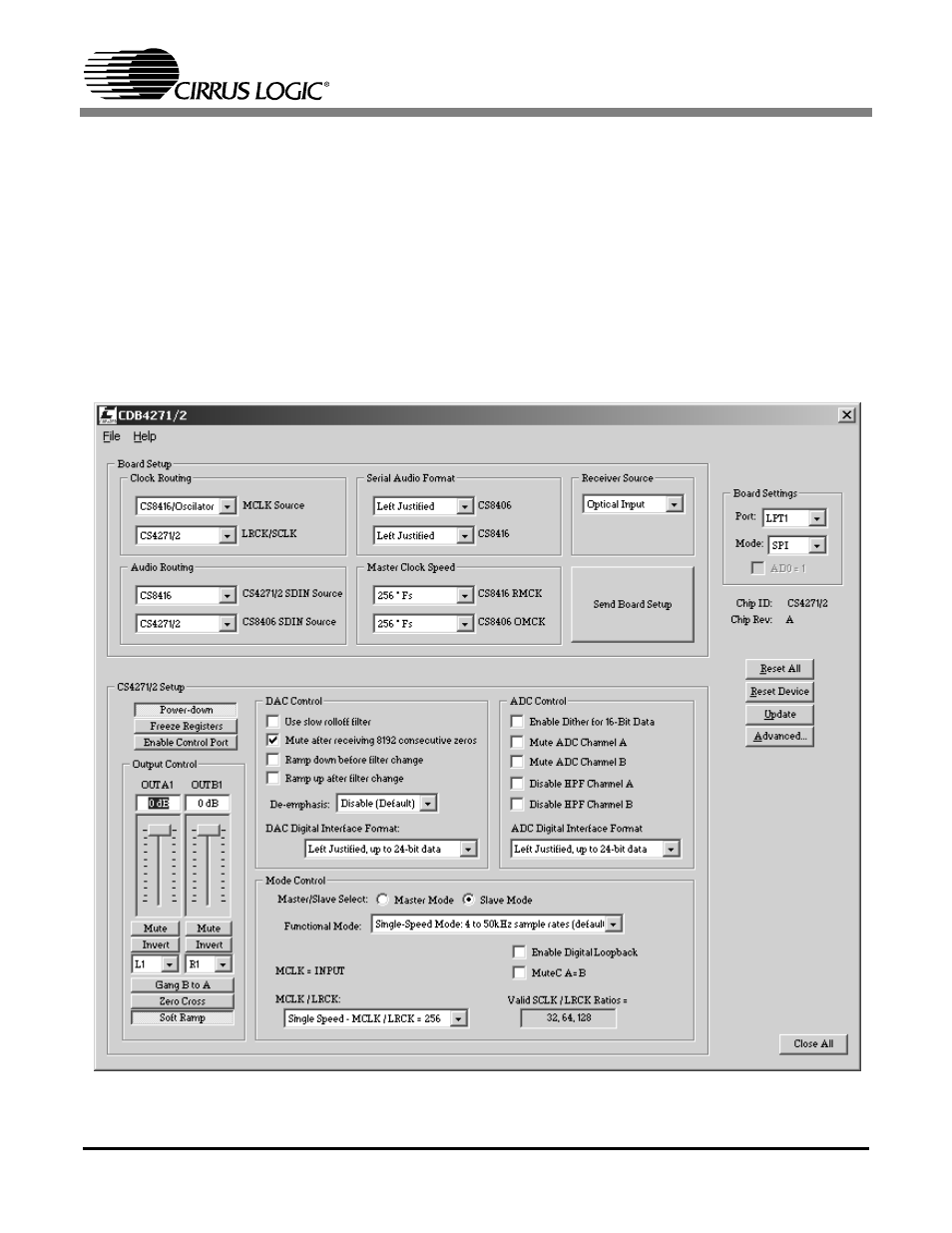

Figure 2. Main Window
