2. PC SOFTWARE CONTROL
The CDB3308 is designed for use with the Microsoft Windows based FlexGUI graphical user interface. This inter-
face provides comprehensive control over the CS3308’s internal registers via a PC’s USB or RS-232 port.
The FlexGUI software may be downloaded and installed fr
.
Step-by-step instructions for using the FlexGUI are provided as follows:
1.
Download and install the FlexGUI software from
.
2.
Connect the CDB3308 to a host PC using the supplied USB cable or a 9-pin serial cable.
3.
Apply positive power, negative power, and ground to the VA+, VA-, and GND binding posts respectively.
4.
Launch the FlexGUI software. The GUI will load and be displayed.
5.
Un-check the “Power Down CS3308” check box to allow audio to pass through the device.
2.1
CS3308 Controls Tab
The CS3308 Controls tab provides a high-level intuitive interface to many of the configuration options of the
CS3308. Control over the state of the CS3308’s MUTE and RESET input pins is also provided.
The Master X Mask check boxes are used to map each channel to the master controls. These check-boxes
reflect the state of their associated Master X Mask bits; when checked, the channel is un-masked.
The sliders facilitate control over the Ch X Volume registers, providing gain and attenuation in ½ dB steps.
The +¼ dB Gain check boxes are used to add an additional ¼ dB of gain to the volume level displayed for
each channel.
See the CS3308 datasheet for complete internal register descriptions.

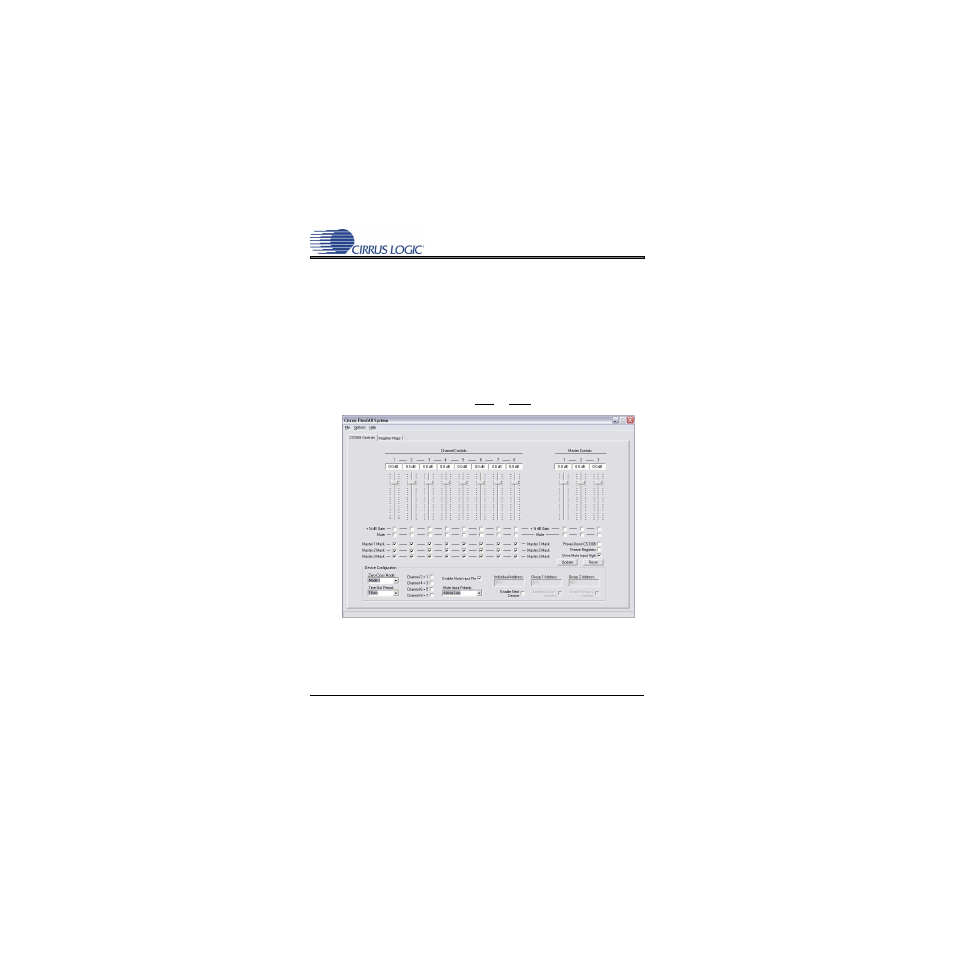

Figure 1. CS3308 Controls Tab
