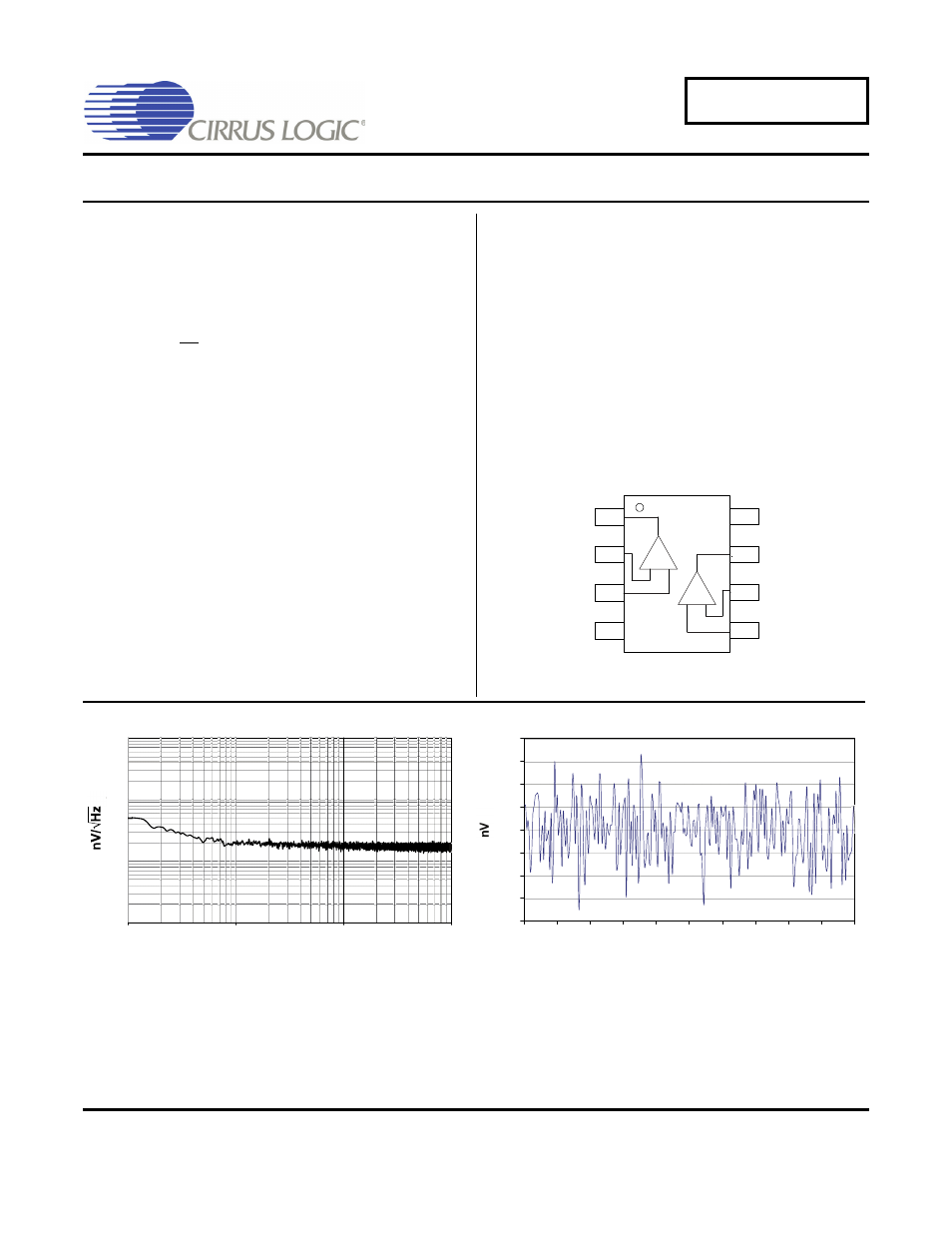

CS3004

Precision Low-voltage Amplifier

Features

& Description

Low Offset:

– 10

μV Max.

Low Drift:

– 0.05

μV/°C Max.

Low Noise:

– 17 nV/

√Hz

Open-loop Voltage Gain:

– 150 dB Typ.

Rail-to-Rail Inputs

Rail-to-Rail Output Swing

– to within 10 mV of supply voltage

2.1 mA Supply Current

Slew rate:

– 0.25 V/

μs

Applications

Thermocouple/Thermopile Amplifiers

Load Cell and Bridge Transducer Amplifiers

Precision Instrumentation

Battery-powered Systems

Description

The CS3004 dual amplifier is designed for precision am-
plification of low-level signals. These amplifiers achieve
excellent offset stability, high open loop gain, and low
noise. The devices also exhibit excellent CMRR and
PSRR. The common mode input range includes the sup-
ply rails. The amplifiers operate with any supply voltage
from 2.7 V to 5 V (±1.35 V to ±2.50 V).

Pin Configuration

CS3004

8-Lead SOIC

(Top View)

Out A

-In A

+In A

V-

V+

Out B

-In B

+In B

A

B

-

-

+

+

1

2

3

4

8

7

6

5

1

10

100

1000

0.01

0.1

1

10

Frequency (Hz)

-200

-150

-100

-50

0

50

100

150

200

0

1

2

3

4

5

6

7

8

9

10

Time (sec)

Noise vs. Frequency (Measured)

0.01 Hz to 10 Hz Noise Performance

JUL ‘09

DS719F2
