3. Specifications
Output signal
Air velocity:
0 … 10 V (linear to m/s), load min. 1 kΩ or
4 … 20 mA (linear to m/s), load max. 400 Ω
Temperature:
0 … 10 V (linear to °C), load min. 1 kΩ or
4 … 20 mA (linear to °C), load max. 400 Ω
Supply voltage
AC/DC 24 V ±10 %

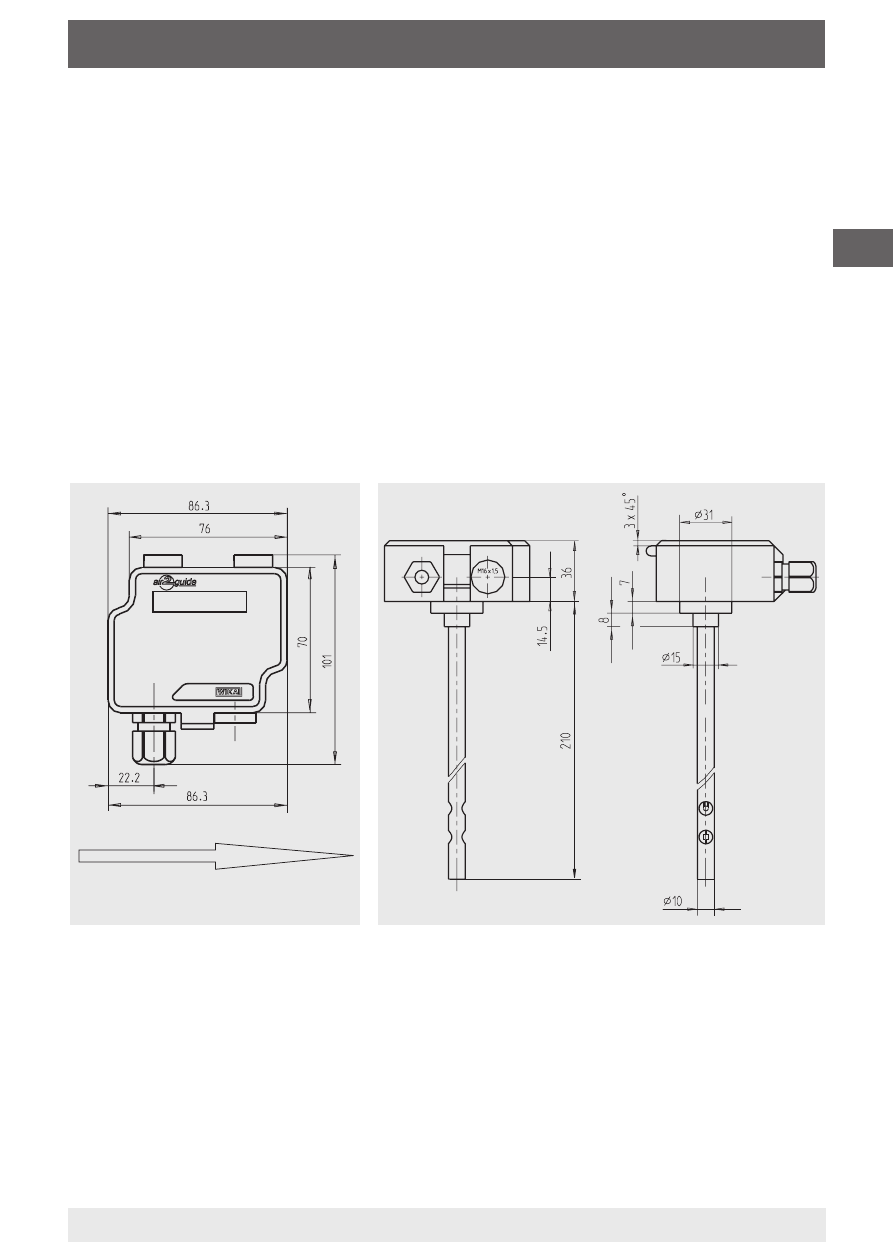

Dimensions in mm
Ingress protection
IP 54 per EN 60529 / lEC 529
For further specifications see WIKA data sheet SP 69.06 and the order
documentation.
Air flow direction
