GB
For reed contacts 10-40 VA For reed contacts 40-100 VA
Capa-
citance
µF
Re-
sistance
Ohm
Voltage
V~
Model
A
Capa-
citance
µF
Re-
sistance
Ohm
Voltage
V~
Model
B
0,33 100 24 3/24 0,33 47 24 3/24
0,33 220 48 3/48 0,33 100 48 3/48
0,33 470 115 3/115 0,33 470 115 3/115
0,33 1500 230 3/230 0,33 1000 230 3/230
WIKA Operating instructions magnetic operated float switches Model RSM and HIF 11
13333283.01 01/2010 GB/D/F

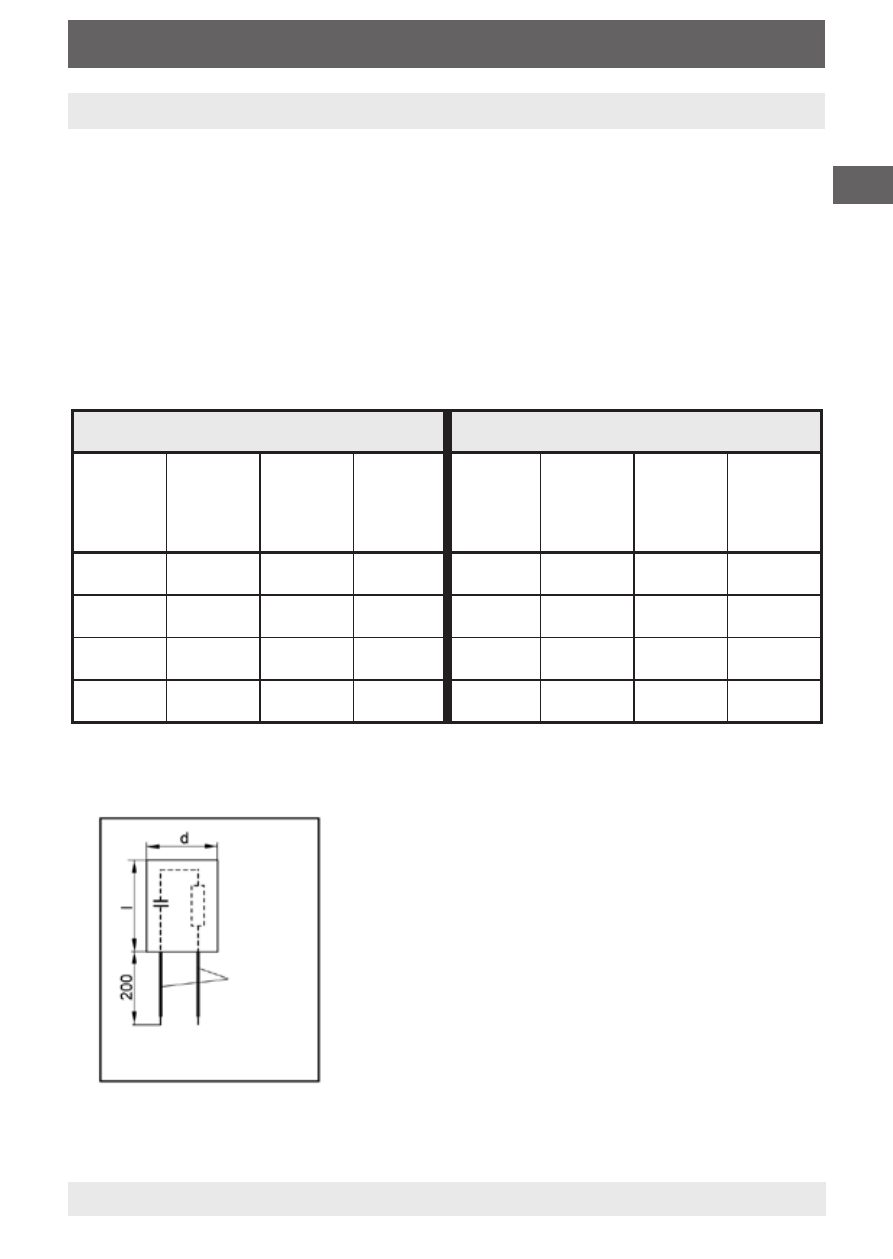

9. Protective RC-Modules
Please use RC-modules according to the table below. Rating of the
switches and supply voltage will determine the model to be used.
Other models might lead to destruction or lower service life of the
reed contacts.
Wire
d = Ш16 ... Ш25 mm
I = 16 ... 58 mm
9. Protective RC-Modules
