11286700 D/GB/F/E 07/2007
GB
Round connector M12 x 1 (4-pin)
Recommended accessories:
M12 x 1 socket with 2 m cable
• straight version, order no.: 2072
• angled version, order no.: 20816

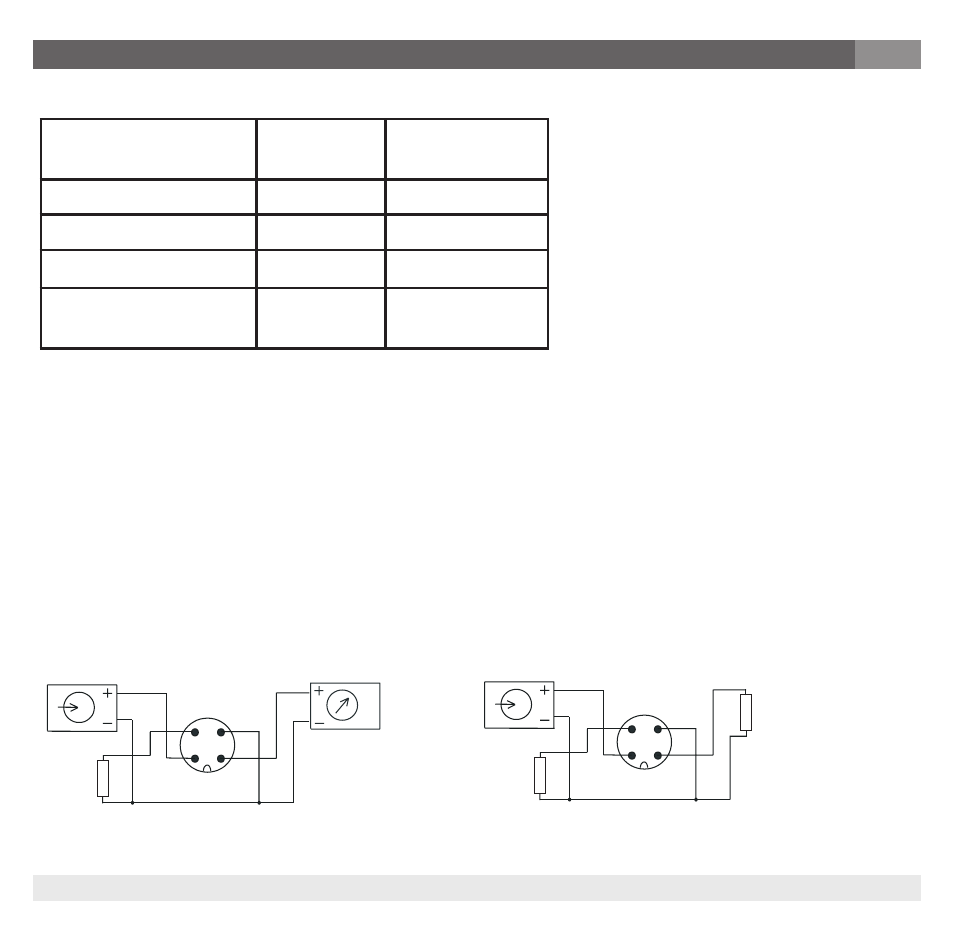

switching to p potential
1 switching output and 1 analogue output 2 switching outputs
Signal Connector colours of op-
tional wires
Supply: UB 1 brown
Supply: 0V 3 blue
Switch output S 1 4 black
Switch output S 2 or
analogue output 2 white
UB
S1
1
0V
2
3 4
R
L
Sig UB
S1
1
0V
2
3 4
S2
R
L
R
L
