INSTRUCTION MANUAL
NI-209E
Rev. 4 12/02
ETTORE CELLA SPA Viale de Gasperi, 48 - Casella Postale (P.O. Box) 96 - I 20010 Bareggio (MILANO) ITALY
Telefoni +39 029036.1146/1237/1241 - FAX +39 029036.1331 e-mail: [email protected]
WEATHEPROOF EXPLOSIONPROOF

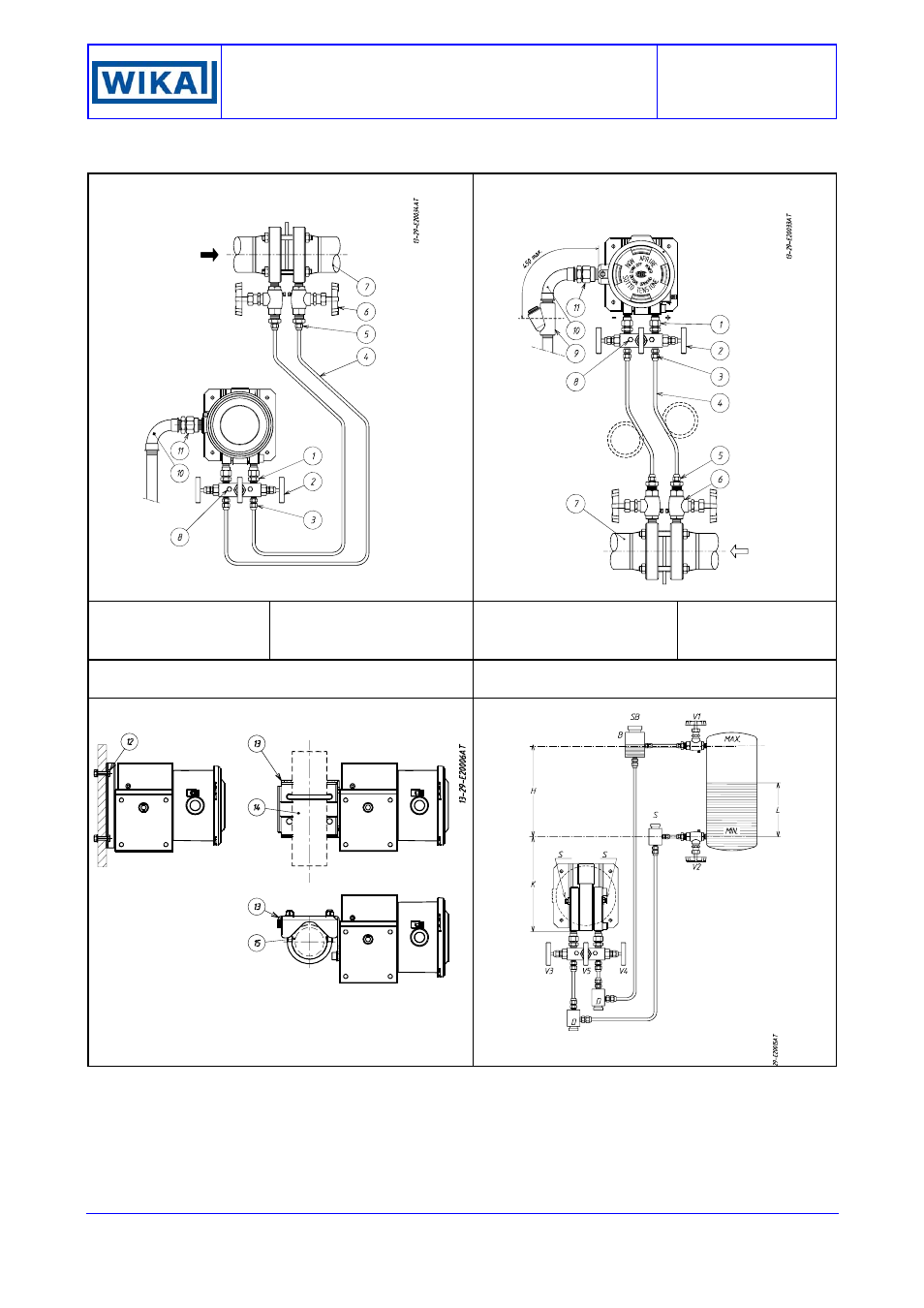

Fig. 7 - Example of connections - Fig. 8 - Example of connections -
- +
1 - Three pieces fitting
2 - Three valves manifold
3 - Three pieces fitting
4 - Piping 5 - Three pieces fitting
6 - Root valve with drain
7 - Filter or nozzle
8 - Check inlet and drain plug 9 - Blocking joint
10 - Curve
11 - Three pieces fitting
12 - M6 screws (N°4) 13 - Bracket for 2” pipe
14 - Vertical pipe
15 - Horizontal pipe
Fig. 9 - Example of mounting Fig. 10 - Level check of tanks under pressure using wetted
tube
Montaggio a parete
Montaggio su staffa
per tubo da 2”
+ -
- +
NOTE With gas or vapour process fluid, the instrument must be positioned higher than the pipe inlet (see Fig. 8).
With a liquid process fluid, the instrument can be positioned higher or lower, indifferently (see Fig. 7 e 8).
Surface mounting
2” pipe mounting
