Your Component – S/PDIF Line Transmitter and Line Receiver
6
4.1.2 Your TP-41 Component – S/PDIF Line Transmitter Underside
Figure 4 and Table 2 define the underside of the TP-41:

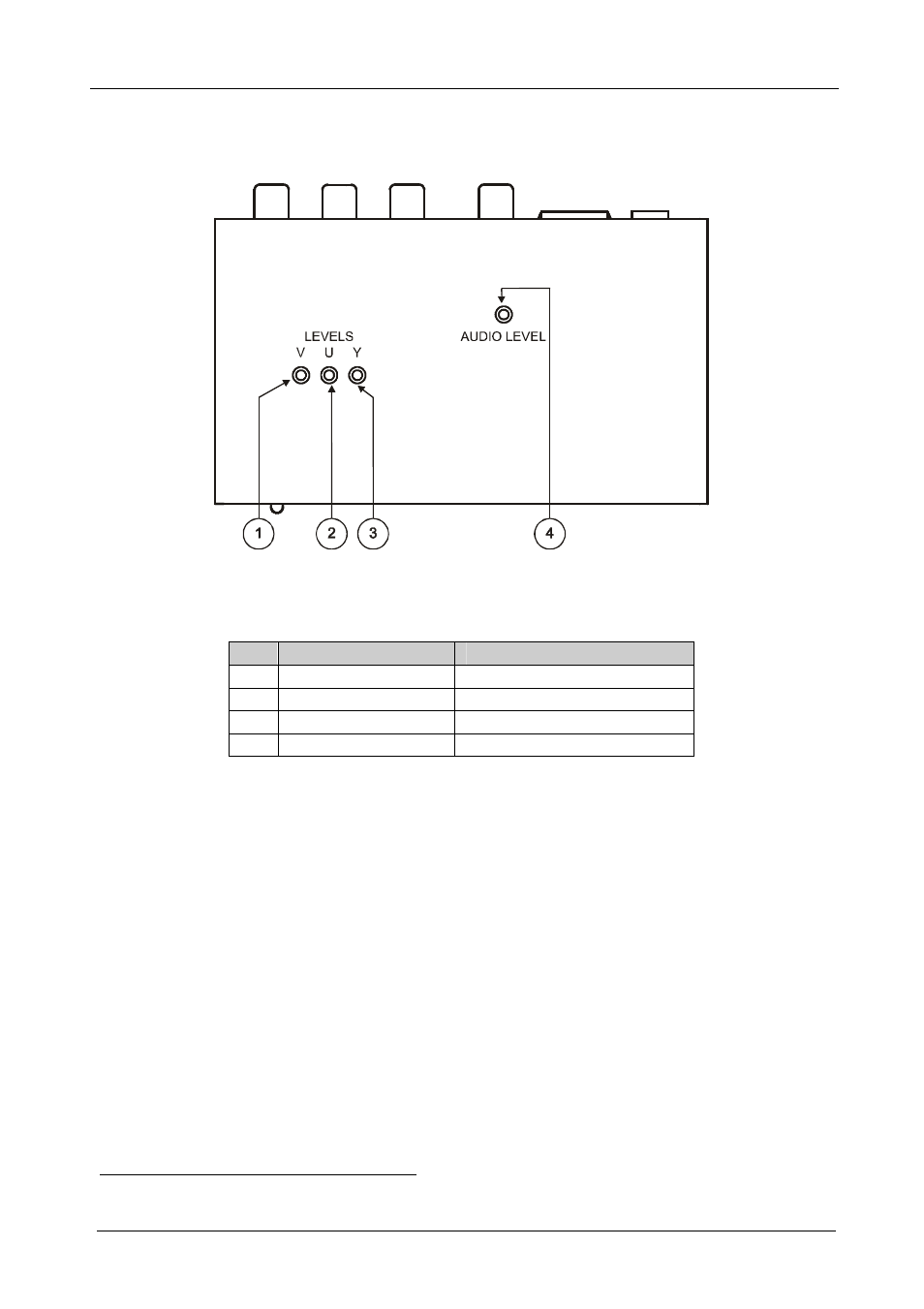

Figure 4: TP-41 Component – S/PDIF Line Transmitter Underside
Table 2: TP-41 Component – S/PDIF Line Transmitter Underside Features
# Feature Function
1 V LEVEL Trimmer Adjusts 1 the V output signal level
2 U LEVEL Trimmer Adjusts 1 the U output signal level
3 Y LEVEL Trimmer Adjusts 1 the Y output signal level
4 AUDIO LEVEL Trimmer Adjusts 1 the volume
1 Insert a screwdriver into the small hole and carefully rotate it, trimming the level
