Connecting a Component – S/PDIF Distribution System
9
5 Connecting a Component – S/PDIF Distribution System
To configure a TP-41 / TP-42 Component – S/PDIF distribution system (for
example, for high quality home cinema), as Figure 9 illustrates, do the following:
1. On the TP-41, connect a component video source (for example, a DVD
player) to the:
Y, U, and V RCA (component video) INPUT connectors
S/PDIF (digital audio) RCA INPUT connector
2. On the TP-42, connect the:
Y, U, and V RCA (component video) OUTPUT connectors to a
component acceptor (for example, a plasma monitor)
S/PDIF (digital audio) RCA OUTPUT connector to an AV-Receiver
3. Connect the LINE OUT connector of the TP-41 to the LINE IN connector
of the TP-42, via UTP cabling (maximum range of up to 300ft (100m)).
4. On each TP-41 / TP-42 unit:
Connect a 12V DC power adapter to the power socket and connect the
adapter to the mains electricity 1
If necessary, adjust 2 the appropriate level(s), by inserting a
screwdriver into the small hole and carefully rotating it

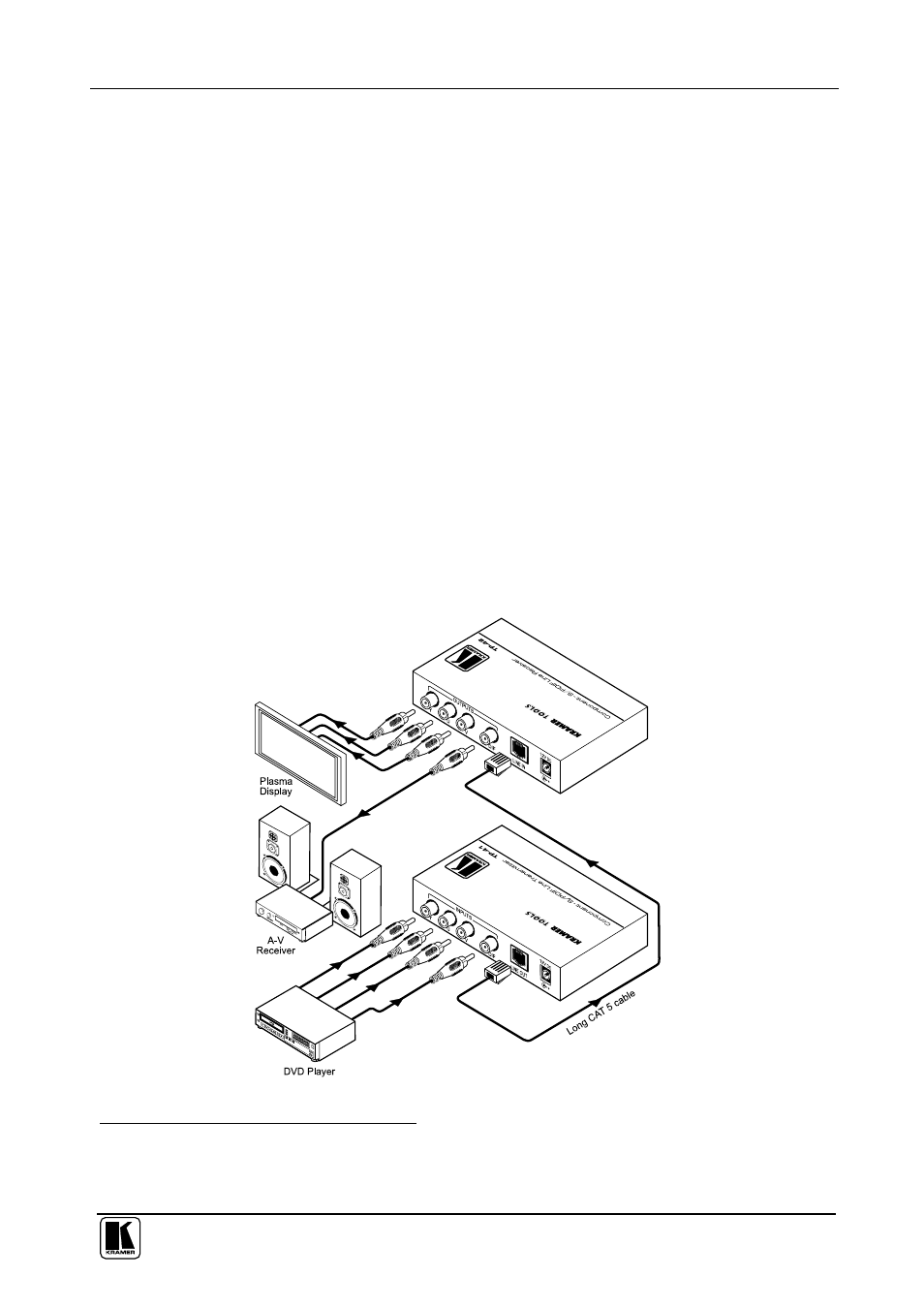

Figure 9: Component – S/PDIF Distribution System up to 300ft (100m) UTP Cable
1 Note, the TP-41, TP-42 does not have the power connect feature
2 On the TP-41, adjust the audio level and/or the Y, U, and V levels. On the TP-42, adjust the audio level, the audio EQ., the
Y, U, and V levels, and/or the Y, U, and V EQ.
