4.2 Your TP-200AXR PC/Audio Line Receiver

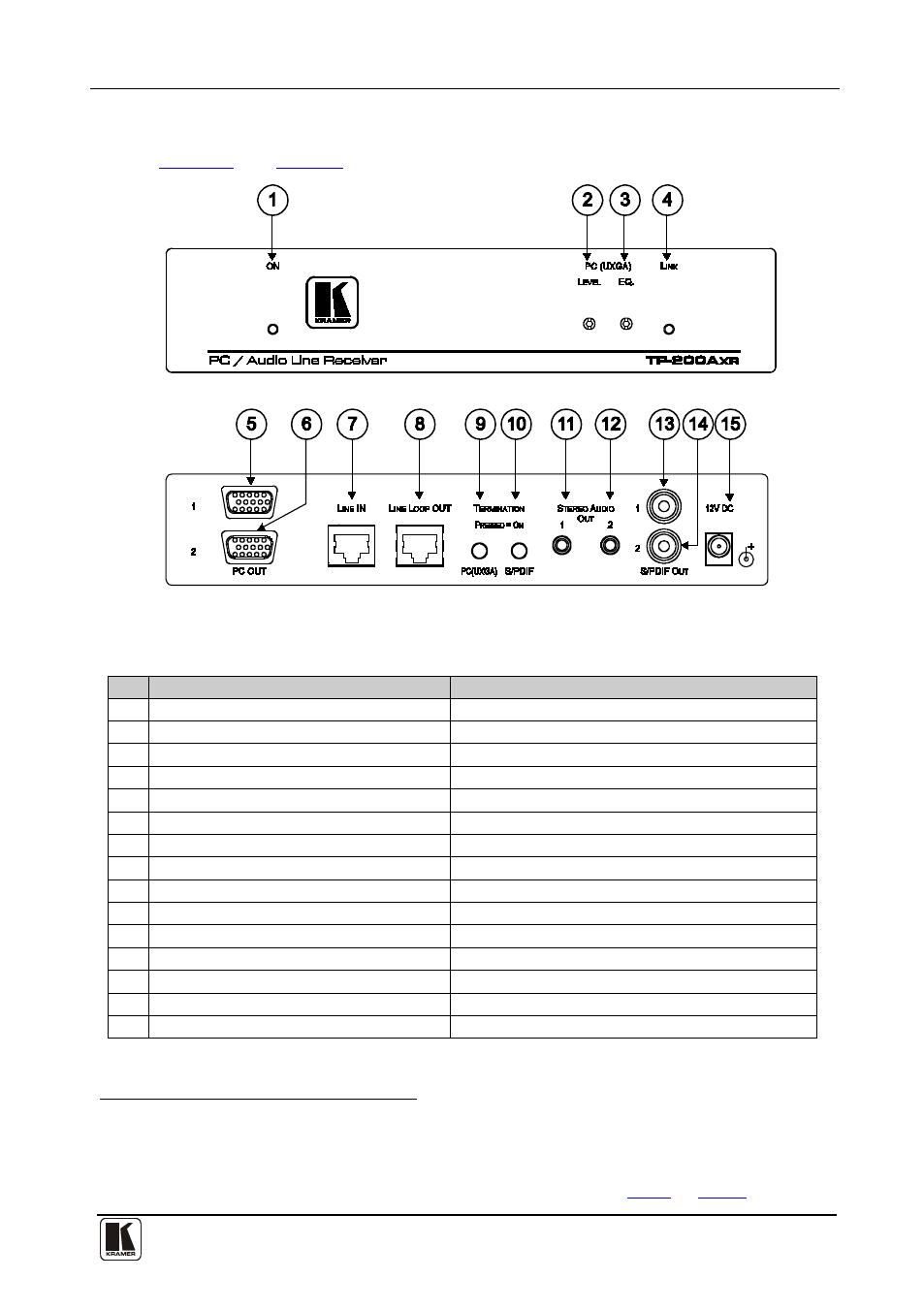

Figure 2 and Table 2 define the TP-200AXR PC/Audio Line Receiver:
Figure 2: TP-200AXR PC/Audio Line Receiver
Table 2: TP-200AXR PC/Audio Line Receiver Features
# Feature Function
1 ON LED Illuminates when receiving power
2 PC (UXGA) LEVEL Trimmer Adjusts 2 the output signal level
3 PC (UXGA) EQ. 1 Adjusts Trimmer 2
4
the cable compensation equalization level
LINK LED Illuminates when receiving the correct input signal
5 PC OUT 1 15-pin HD (F) Connector Connects to the first PC acceptor
6 PC OUT 2 15-pin HD (F) Connector Connects to the second PC acceptor
7 LINE IN RJ-45 Connector Connects to 3
8
the TP-100AXR
LINE LOOP OUT RJ-45 Connector Connects to 3 another TP-200AXR
9 TERMINATION PC(UXGA) Pushbutton Press IN to terminate the PC (UXGA) connection
10 TERMINATION S/PDIF Pushbutton Press IN to terminate the S/PDIF connection
11 STEREO AUDIO OUT 1 3.5mm Mini Jack Connects to the first analog audio acceptor
12 STEREO AUDIO OUT 2 3.5mm Mini Jack Connects to the second analog audio acceptor
13 S/PDIF OUT 1 RCA connector
Connects to the first digital audio acceptor
14 S/PDIF OUT 2 RCA connector Connects to the second digital audio acceptor
15 12V DC +12V DC connector for powering the unit
1 Degradation and VGA/XGA signal loss can result from using long cables (due to stray capacitance), sometimes leading to a
total loss of sharpness in high-resolution signals
2 Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level
3 Using a UTP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in
Table 3 and Figure 5 )
