Connecting the FC-50 RS-232 Range Extender

7

7

5.1 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors

Table 3

and

Figure 4

define the UTP CAT 5 PINOUT, using a straight pin

to pin cable with RJ-45 connectors:

Table 3: CAT 5 PINOUT

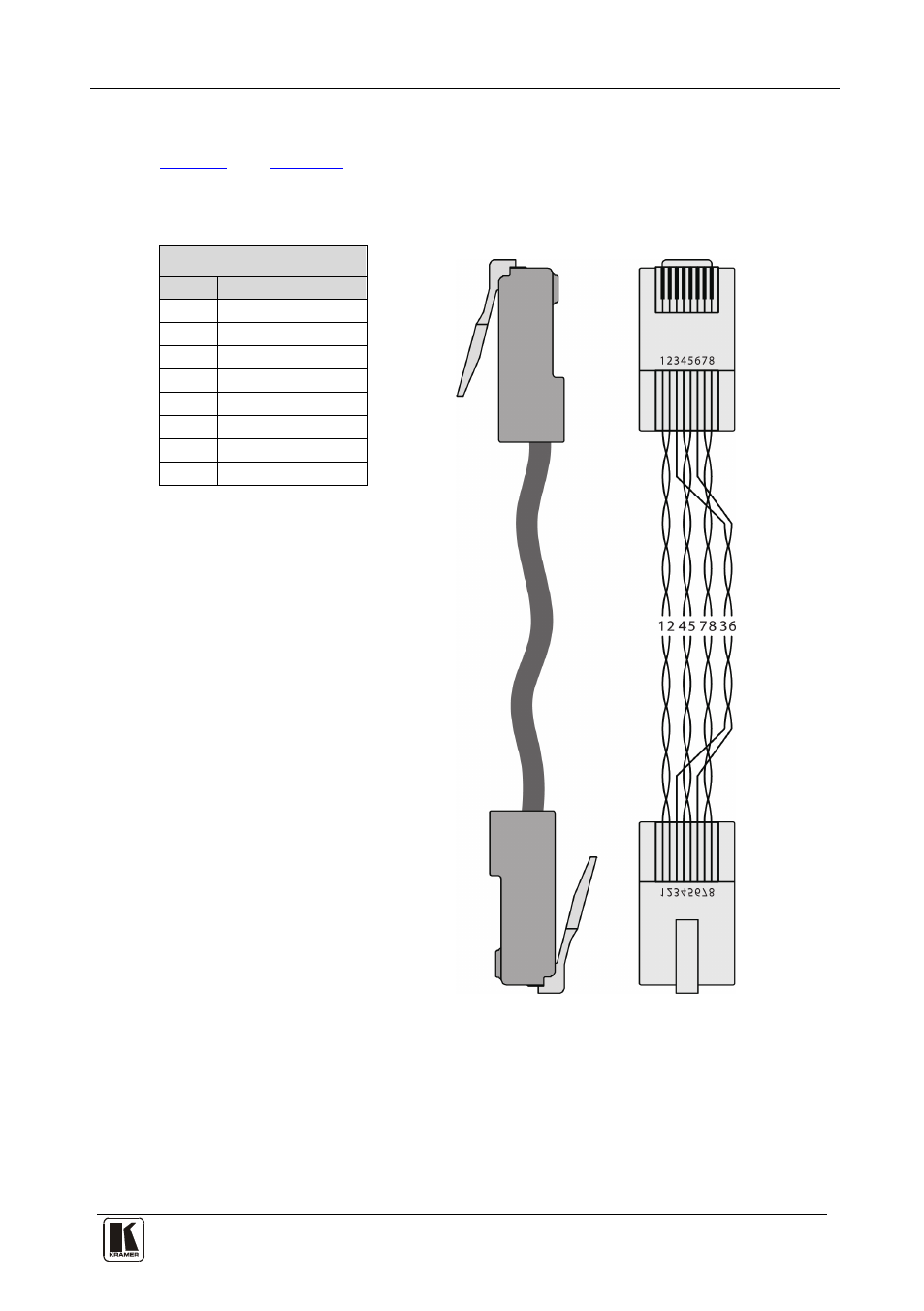

Figure 4: CAT 5 PINOUT

EIA /TIA 568B

PIN

Wire Color

1

Orange / White

2

Orange

3

Green / White

4

Blue

5

Blue / White

6

Green

7

Brown / White

8

Brown
