KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your FC-50 RS-232 Range Extender

4

also be preferable for long range applications. In any event when using UTP

cable, it is advisable to ensure that the cable is installed far away from

electric cables, motors and so on, which are prone to create electrical

interference.

3.3 Recommendations for Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables

1

Do not secure the cables in tight bundles or roll the slack into tight coils

to avoid interference,

deterioration in signal quality due to poor matching, and elevated noise

levels (often associated with low quality cables).

Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your Kramer FC-50

away from moisture, excessive sunlight and dust

4

Your FC-50 RS-232 Range Extender

Figure 1

and

Table 1

define the FC-50 RS-232 Range Extender:

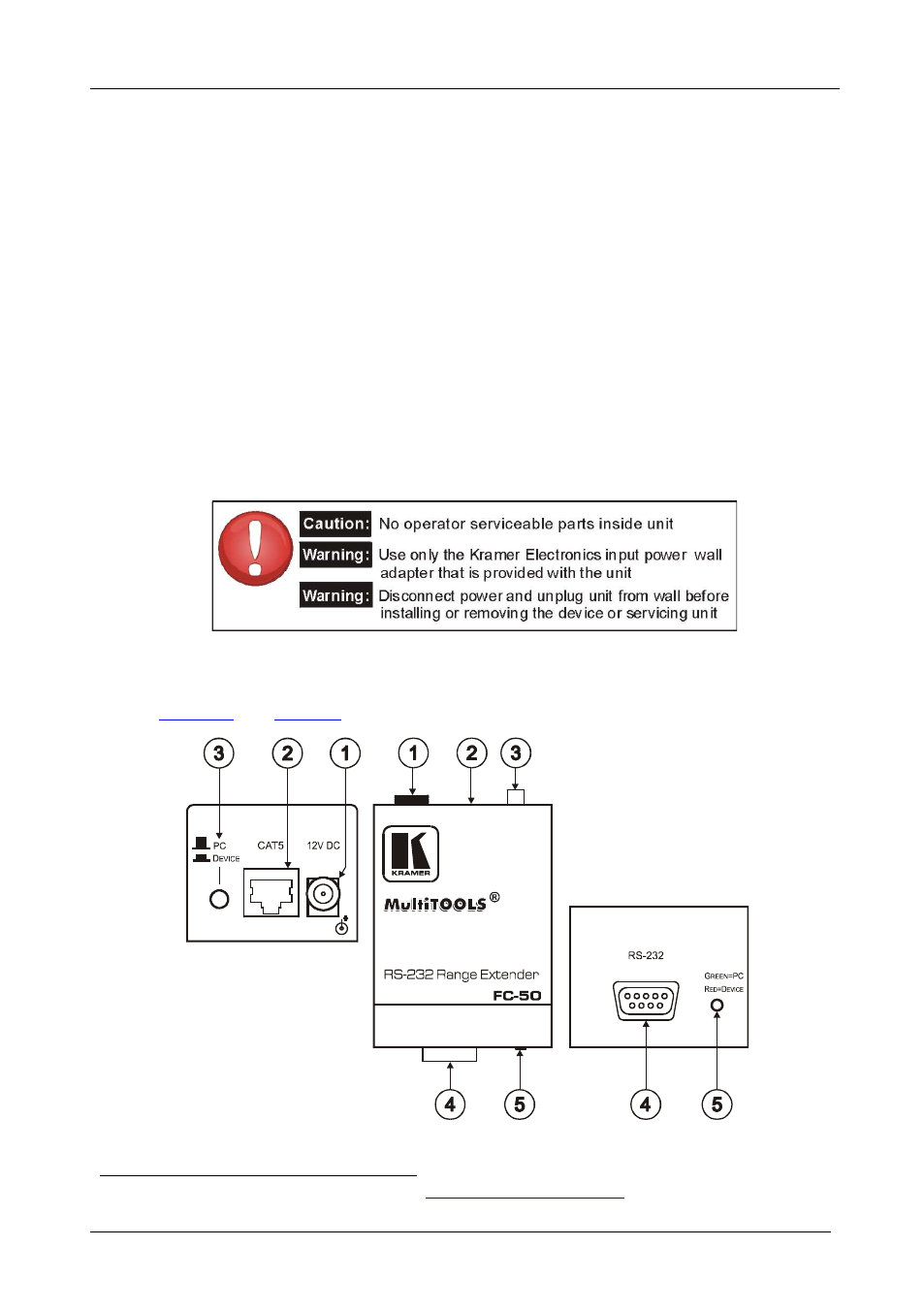

Figure 1: FC-50 RS-232 Range Extender

1 Available from Kramer Electronics on our Web site at

http://www.kramerelectronics.com
