6 673T, 673R - Overview
3.1.2 Your 673R HD-SDI Optical Receiver

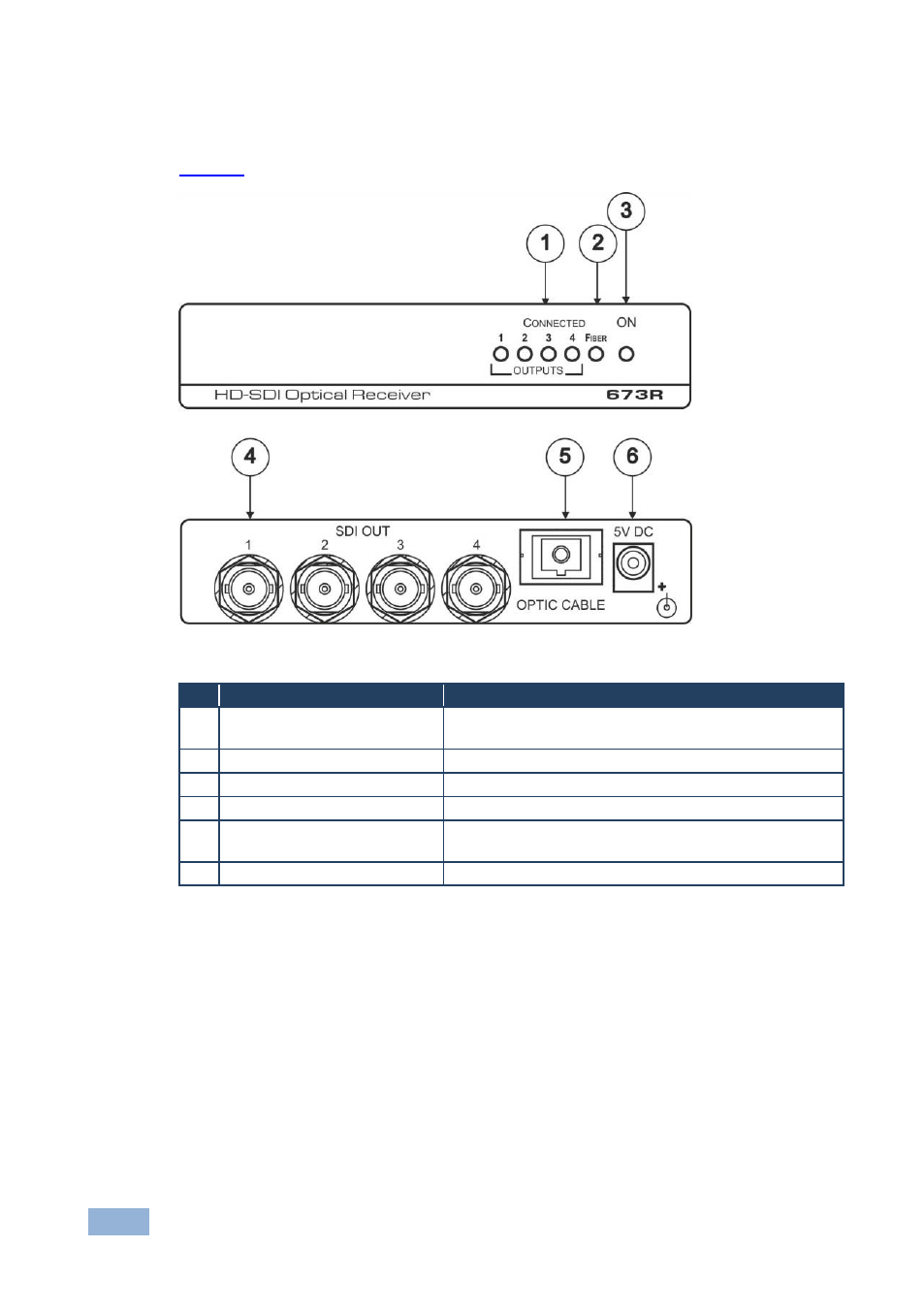

Figure 2 defines the 673R HD-SDI Optical Receiver:
Figure 2: 673R HD-SDI Optical Receiver
# Feature Function
1 CONNECTED OUTPUT LEDs Illuminates to show the valid input signals connected on
the transmitter (from 1 to 4)
2 FIBER LED Illuminates when the fiber optic cable is connected
3 ON LED Illuminates when receiving power
4 SDI OUT BNC Connector Connects to the SDI acceptor (from 1 to 4)
5 OPTIC CABLE Connector Connects to the optical connector on the 673T via
multimode fiber cable
6 5V DC +5V DC connector for powering the unit
