6 650T/650R - Your 650T/650R DVI/Coax Transmitter/Receiver
4 Your 650T/650R DVI/Coax
Transmitter/Receiver
This section defines the 650T DVI-Coax Transmitter (see Section
4.1
) and the
650R Coax-DVI Receiver (see Section
4.2
)
4.1 Your 650T DVI-Coax Transmitter

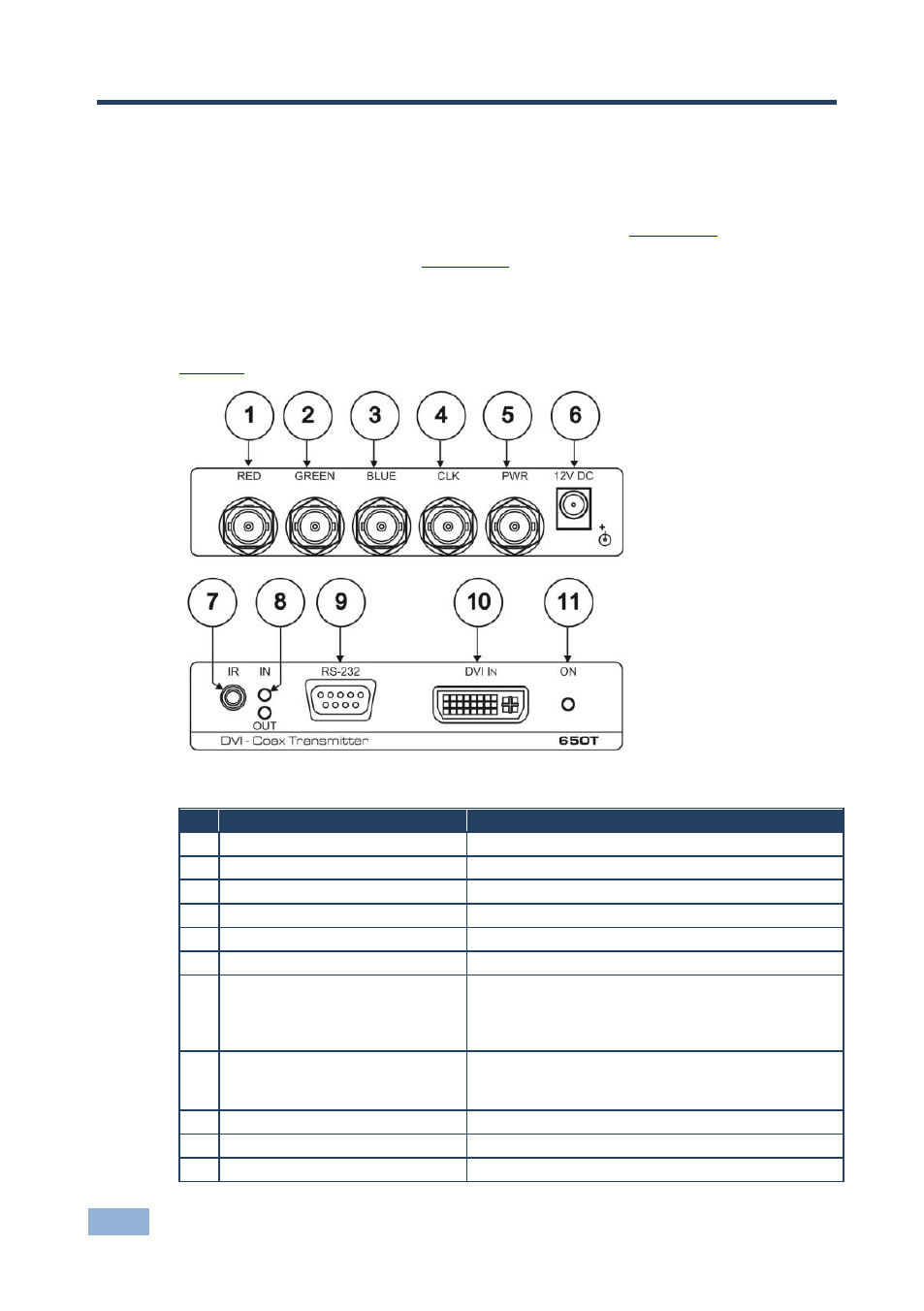

Figure 1 defines the 650T:
Figure 1: 650T/650R HDMI/Coax Transmitter/Receiver
# Feature Function
1 RED Output BNC Connector Transmits the red signal to the 650R
2 GREEN Output BNC Connector Transmits the green signal to the 650R
3 BLUE Output BNC Connector Transmits the blue signal to the 650R
4 CLK Output BNC Connector Transmits the clock signal to the 650R
5 PWR Output BNC Connector Transmits power and the IR signal to the 650R
6 12V DC +12V DC connector for powering the unit
7 IR Connector Connects to an IR sensor or transmitter
Compatible with a Kramer transmitter and via a Kramer
external remote IR receiver: C-A35M/IRR or C-A35M/IRE or
C-A35M/2IRE
8 IN / OUT LED The IN LED Illuminates when an input source is
connected. The OUT LED illuminates when an output
acceptor is connected
9 RS-232 9-pin D-sub Connector Connects to an RS-232 computer source
10 DVI IN Connector Connects to a DVI source
11 ON LED Illuminates when receiving power
