650T/650R - Your 650T/650R DVI/Coax Transmitter/Receiver 7
4.2 Your 650R Coax-DVI Receiver

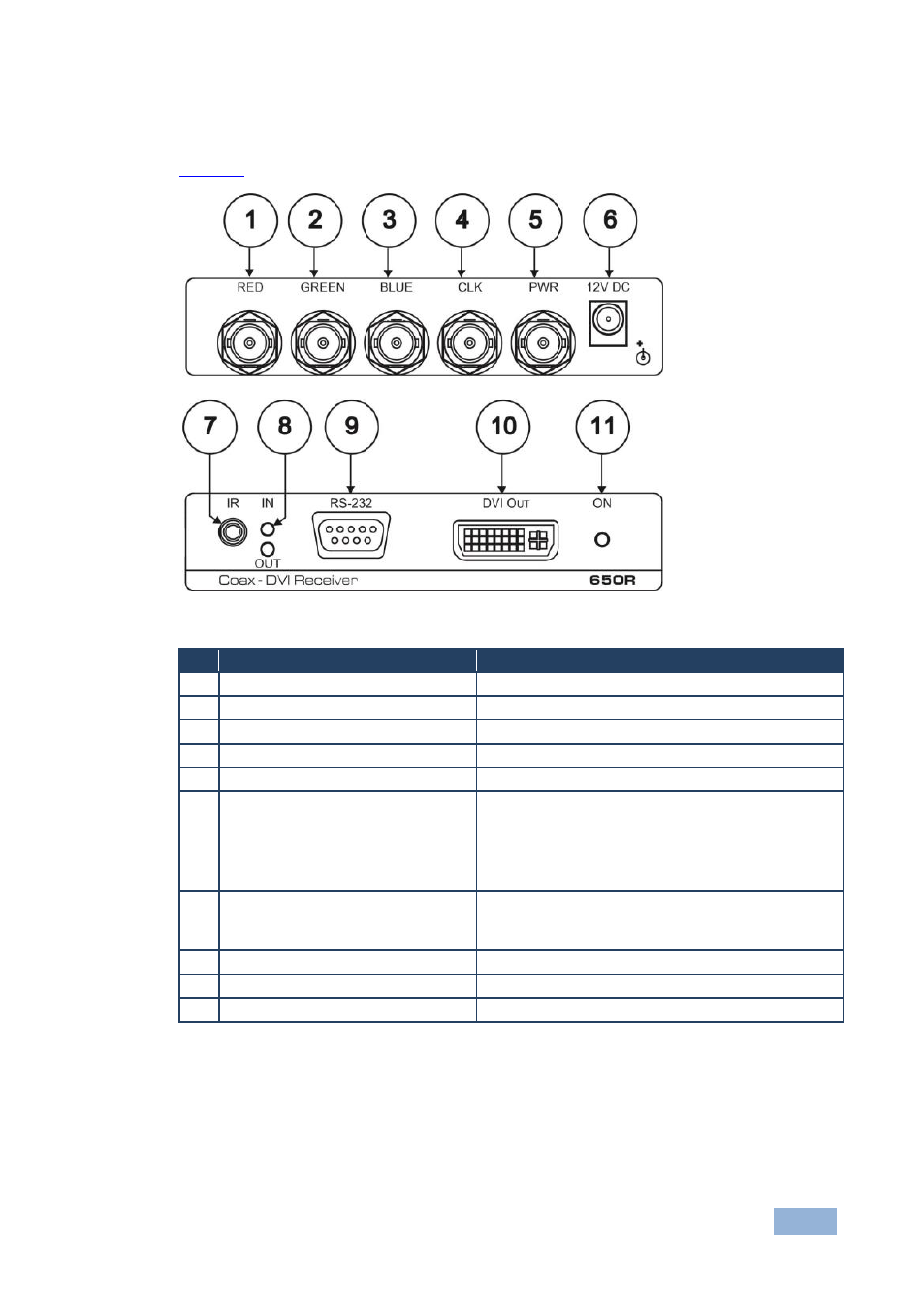

Figure 2 defines the 650R:
Figure 2: 650R Coax-DVI Receiver
# Feature Function
1 RED Input BNC Connector Receives the red signal from the 650T
2 GREEN Input BNC Connector Receives the green signal from the 650T
3 BLUE Input BNC Connector Receives the blue signal from the 650T
4 CLK Input BNC Connector Receives the clock signal from the 650T
5 PWR Input BNC Connector Receives power and the IR signal from the 650T
6 12V DC +12V DC connector for powering the unit
7 IR Connector Connects to an IR sensor or transmitter
Compatible with a Kramer transmitter and via a Kramer
external remote IR receiver: C-A35M/IRR or C-A35M/IRE
or C-A35M/2IRE
8 IN / OUT LED The IN LED Illuminates when an input source is
connected. The OUT LED illuminates when an
output acceptor is connected
9 RS-232 9-pin D-sub Connector Connects to an RS-232 computer source
10 DVI OUT Connector Connects to a DVI acceptor
11 ON LED Illuminates when receiving power
