10 621T, 621R - Connecting and Operating the 621T, 621R
5.2 Operating the 621T/621R DVI Optical
Transmitter/Receiver
To properly operate the 621T/621R system:

Make sure you have a media receiver or a graphic controller card with a DVI
connector on your PC/Mac or SUN system.

Make sure that your graphic card supports the maximum resolution of the
display you are about to connect
 Avoid “hot plugging” the 621T or 621R. This is not a recommended practice
with live digital voltages
5.3 Wiring the TP LINE IN / LINE OUT RJ-45 Connectors
This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45
connectors.
Note, that the cable ground shielding must be connected / soldered to
the connector shield.

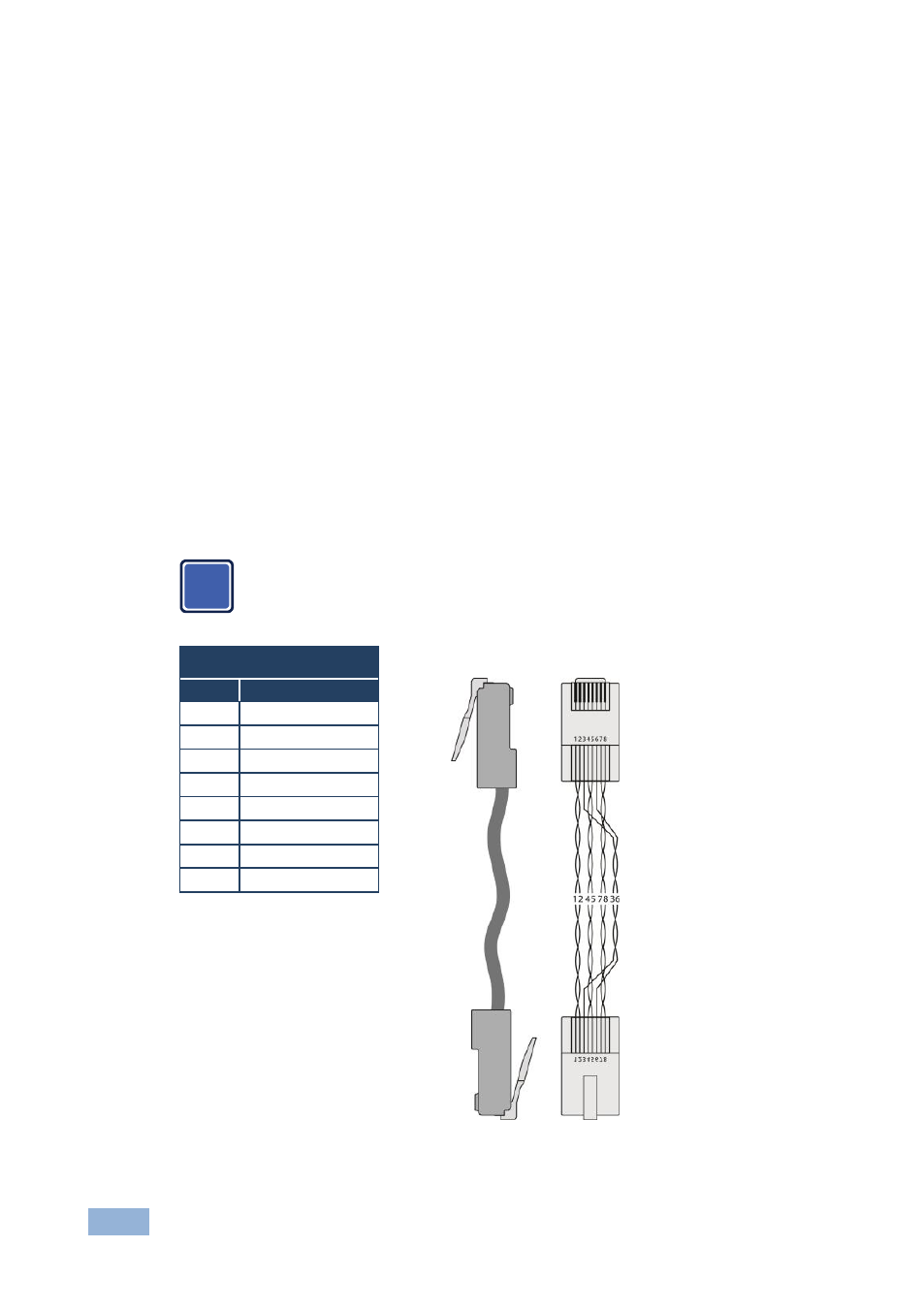

EIA /TIA 568B Figure 5: TP PINOUT
PIN Wire Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
