621T, 621R - Defining the 621T, 621R DVI Optical Transmitter/Receiver 7
4.2 Defining the 621R DVI Optical Receiver

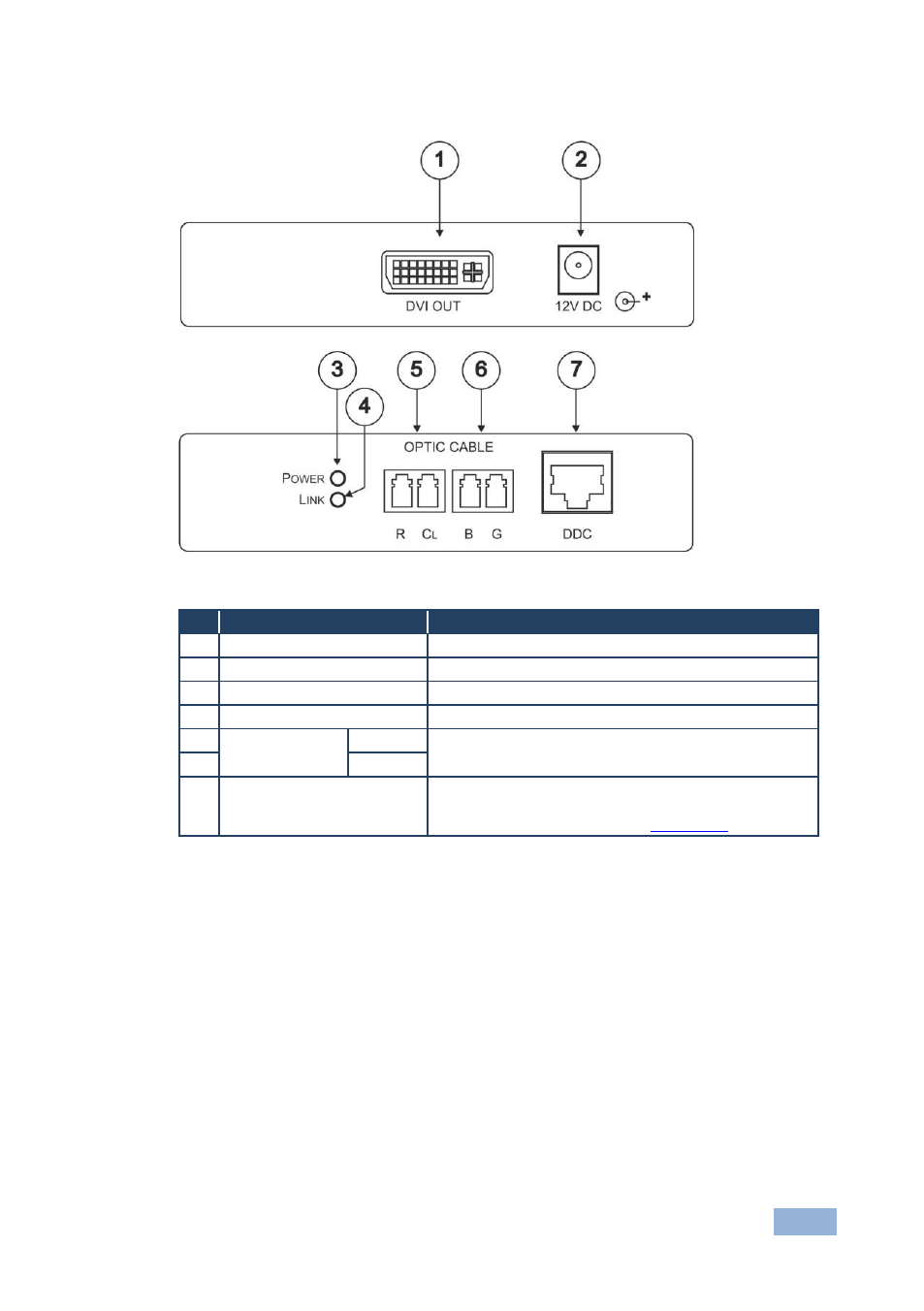

Figure 2: 621R DVI Optical Receiver
# Feature Function
1 DVI OUT Connector Connects to the DVI acceptor
2 12V DC 12V DC connector for powering the unit
3 POWER LED Lights when receiving power
4 LINK LED Lights when receiving a stable DVI signal
5 OPTIC CABLE R CL Connect to the optic connectors on the 621T
6 B G
7 DDC CAT 5 Connector Connects to the DDC RJ-45 connector on the 621T
using a UTP CAT5 cable with RJ-45 connectors at both
ends (the PINOUT is defined in
Section 5.3
